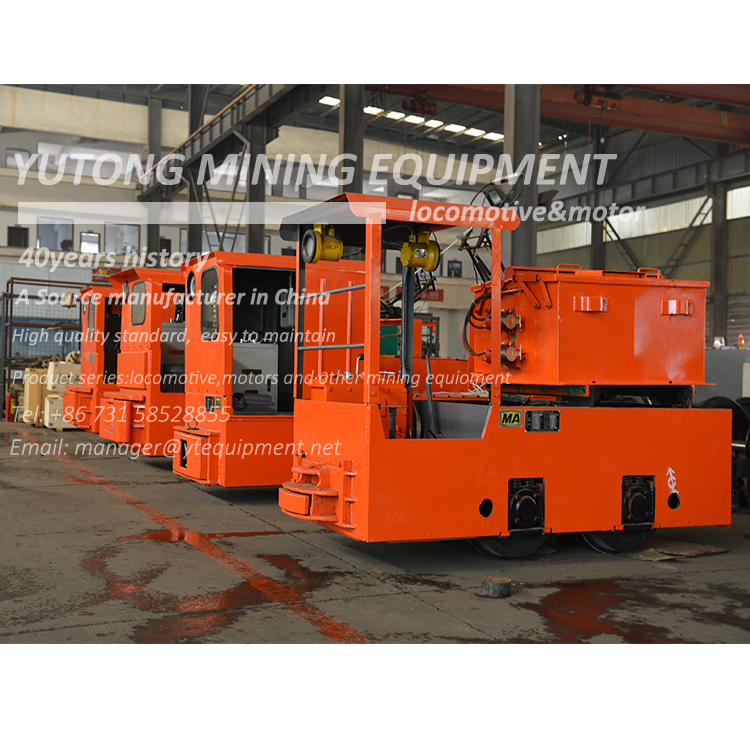

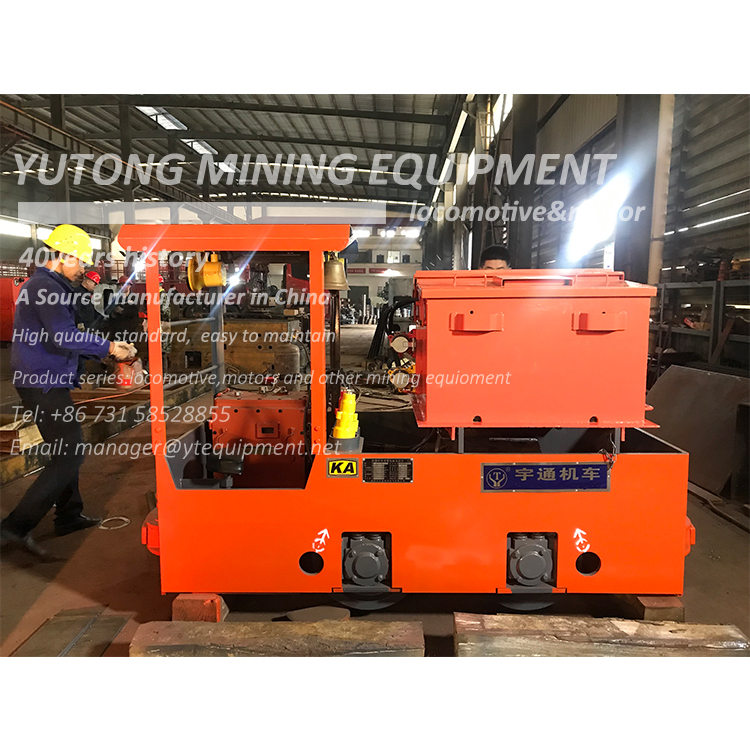

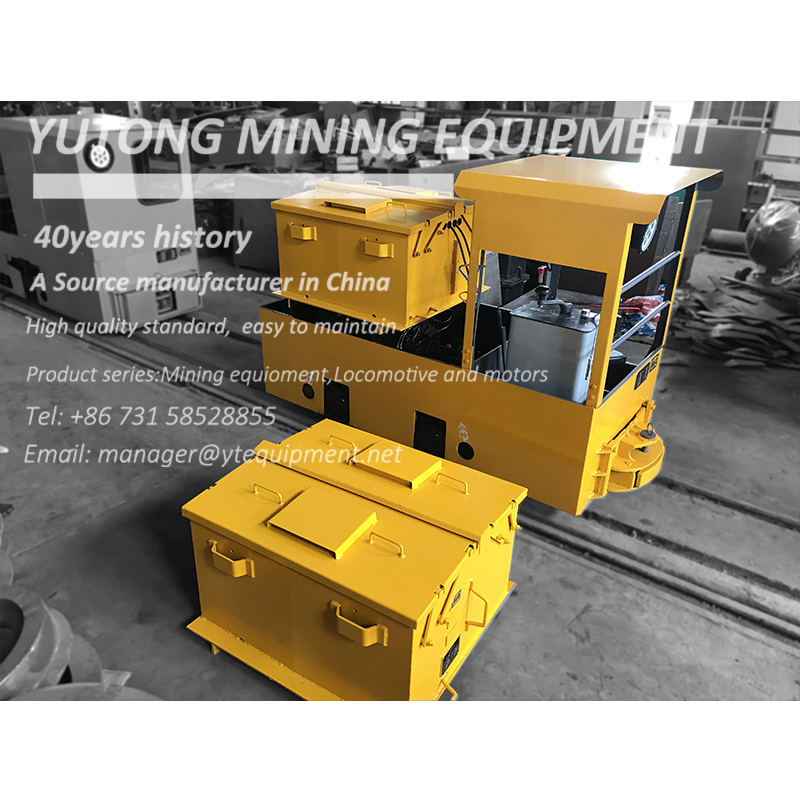

2.5 Ton electric mining flameproof battery locomotive applies the explosion-proof motor, Led light, horn, battery device, all of its electric parts all flameproof, which could be applied in the places where gas exist.
2.5 Ton electric mining flameproof battery locomotive applies the explosion-proof motor, Led light, horn, battery device, all of its electric parts all flameproof, which could be applied in the places where gas exist.
We offers durable and safe mining flameproof battery locomotive, We have specialized in mining locomotive many years and exported to South America and Africa, hope to start business with you soon.
Technical Specification
| Model | CTY2.5/6、7、9G(B) | ||
| Dead weight | 2.5t | ||
| Track gauge | 600、762 or 900mm | ||
| Traction force | 2.55kN | ||
| Max traction force | 6.13kN | ||
| Speed | 4.54km/h | ||

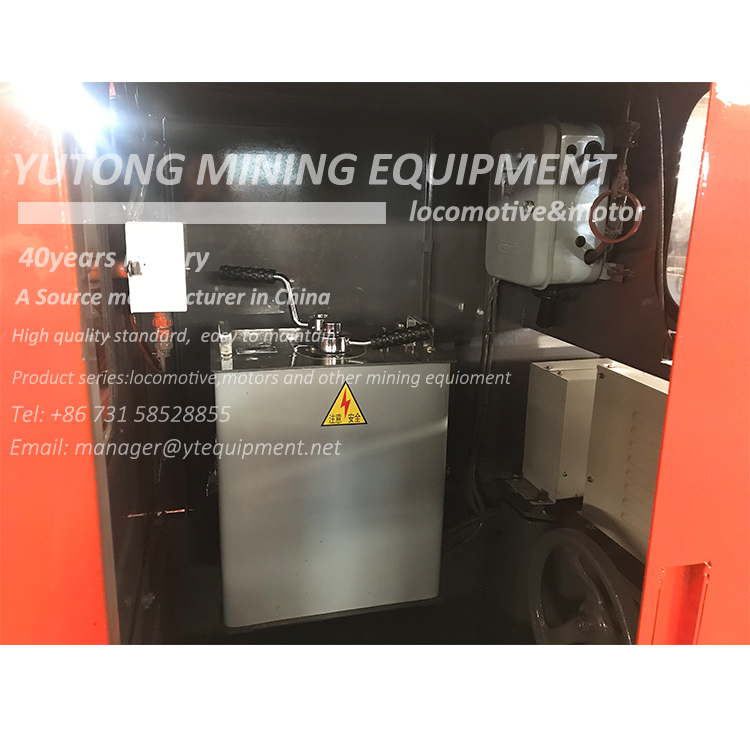

| Battery device | Lithium battery | 51.2v 300ah | |
| Lead acid battery | 48V330AH | ||
| Motor power | 3.5kW×1 | ||
| Dimensions | Length | 2330mm | |
| width | 914、1076 or 1212mm | ||
| Height | 1550mm | ||
| Wheelbase | 650mm | ||
| Wheel diameter | Φ460mm | ||
| Min turn radius | 5m | ||
| Controlling way | Resistance or IGBT chopper | ||
| Brake way |
Mechanical brake | ||
