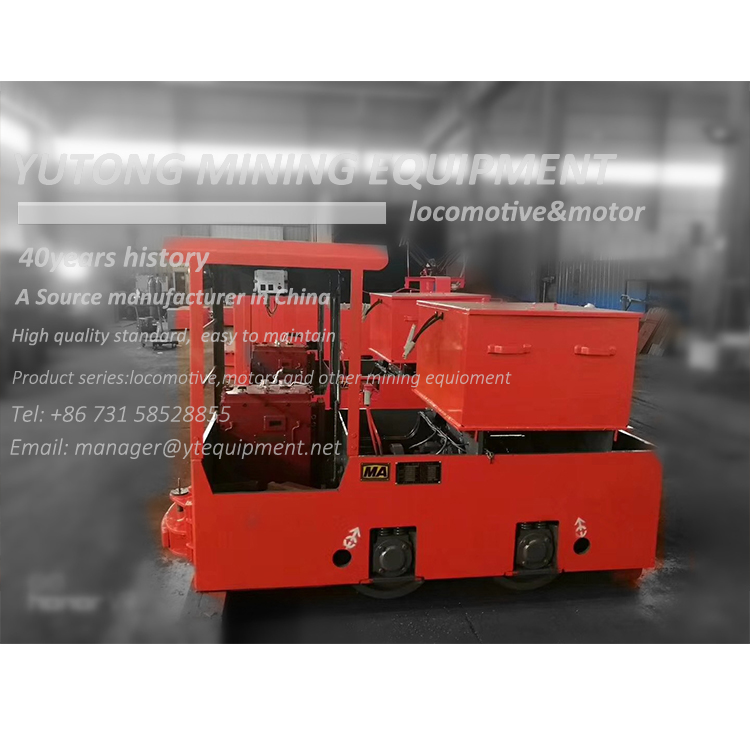

2.5 Ton Flameproof battery locomotive widespread use among the tiny mine it often be used as a main traction vehicle in the underground.
2.5 Ton Flameproof battery locomotive widespread use among the tiny mine
it often be used as a main traction vehicle in the underground.
It could choose the Maintenance-free battery as it power supply it has the
advantages of no need to add the bath solution.
Factory Video
Technical Specification
| Model | CTY2.5/6、7、9G(B) | ||
| Dead weight | 2.5t | ||
| Track gauge | 600、762 or 900mm | ||
| Traction force | 2.55kN | ||
| Max traction force | 6.13kN | ||
| Speed | 4.54km/h | ||
| Battery device | Lithium battery | 51.2v 300ah | |
| Lead acid battery | 48V330AH | ||
| Motor power | 3.5kW×1 | ||
| Dimensions | Length | 2330mm | |
| width | 914、1076 or 1212mm | ||
| Height | 1550mm | ||
| Wheelbase | 650mm | ||
| Wheel diameter | Φ460mm | ||
| Min turn radius | 5m | ||
| Controlling way | Resistance or IGBT chopper | ||
| Brake way |
Mechanical brake |
||
