Our factory offers durable and competitive price electric locomotive with battery supply, we devoted ourselves to mining locomotive for many years, covering the market of South America and Europe. We are looking forward to start business cooperation w

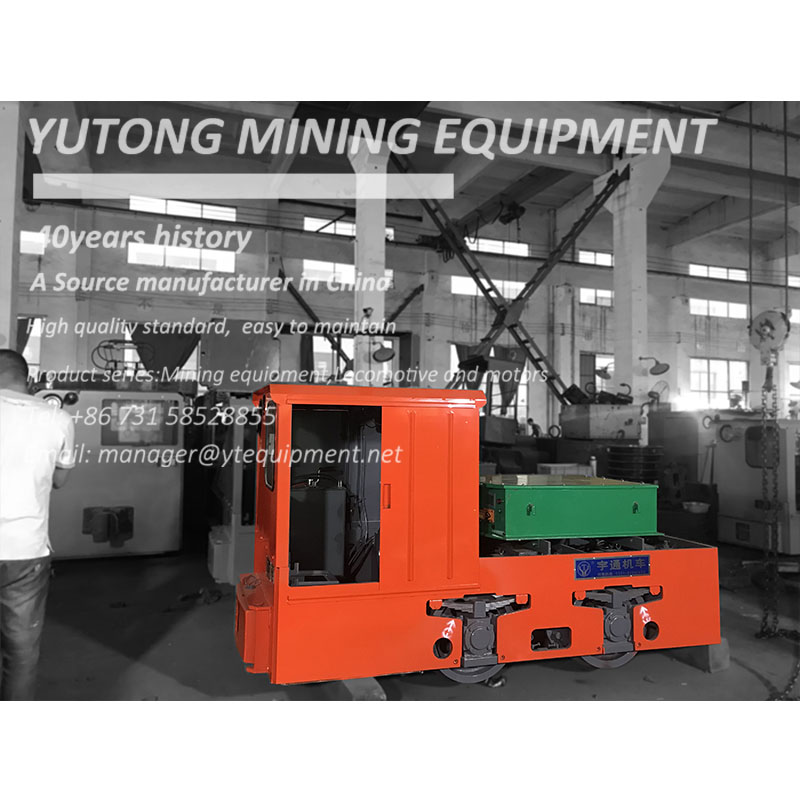

The 5 Ton Electric Mining Battery Locomotive is most applied in those small,middle mines or tunnel construction. It could pull about 50 ton ores. It have the advantages of easy operate, easy to maintain.
Type: normal or anti-explosion
Controll way : resistance control, IGBT, and AC controller.
Track gauge: 500,600,762,900 or as requirements.
Battery type: lead-acid battery or lithium battery.
Brake Method: Mechanical, or Hydraulic brake
Application: mines, tunnels or places with rails.
Operation video
 |
Model | CTY5/6、7、9G(B) | ||
| Total-weight | 5t | |||
| Track gague | 500、600、762 or 900mm | |||
| Tracktion force | 7.06kN | |||
| Max traction | 12.26kN | |||
| Speed | 7km/h | |||
| Battery device | Voltage | 90V | ||
| Capacity | 385Ah | |||
| Motor power | 7.5 kW×2 | |||
| dimensions | Lenght | 3170mm | ||
| Width | 920、1082 or 1220mm | |||
| Height | 1550mm | |||
| Wheel base | 850mm | |||
| Wheel diameter | Φ520mm | |||
| Min turn radius | 6m | |||
| Controlling way | Resistence or IGBT | |||
| Brake way | Mechnical brake or hydraulic | |||
FAQ
Q1. Do you provide samples? Is it free or extra?
A: Available upon request.
Q2. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly.
Q3. Why choose our company?
A: 1. We have 40 years working experience in railway and mining construction.
2. We have 15 professional engineers and we could provide online-service in anytime.
