The ZWY60 crawler belt mucking loader is designed for high maneuverability in confined spaces, making it ideal for narrow tunnels and underground mining operations with limited space. Its compact design, powerful engine, and robust crawler tracks allow it to easily navigate tight corners and uneven surfaces, maximizing productivity and efficiency in challenging environments.
ZWY60 Crawler Belt Mucking Loader
The ZWY60 crawler belt mucking loader is designed for high maneuverability in confined spaces, making it ideal for narrow tunnels and underground mining operations with limited space. Its compact design, powerful engine, and robust crawler tracks allow it to easily navigate tight corners and uneven surfaces, maximizing productivity and efficiency in challenging environments.

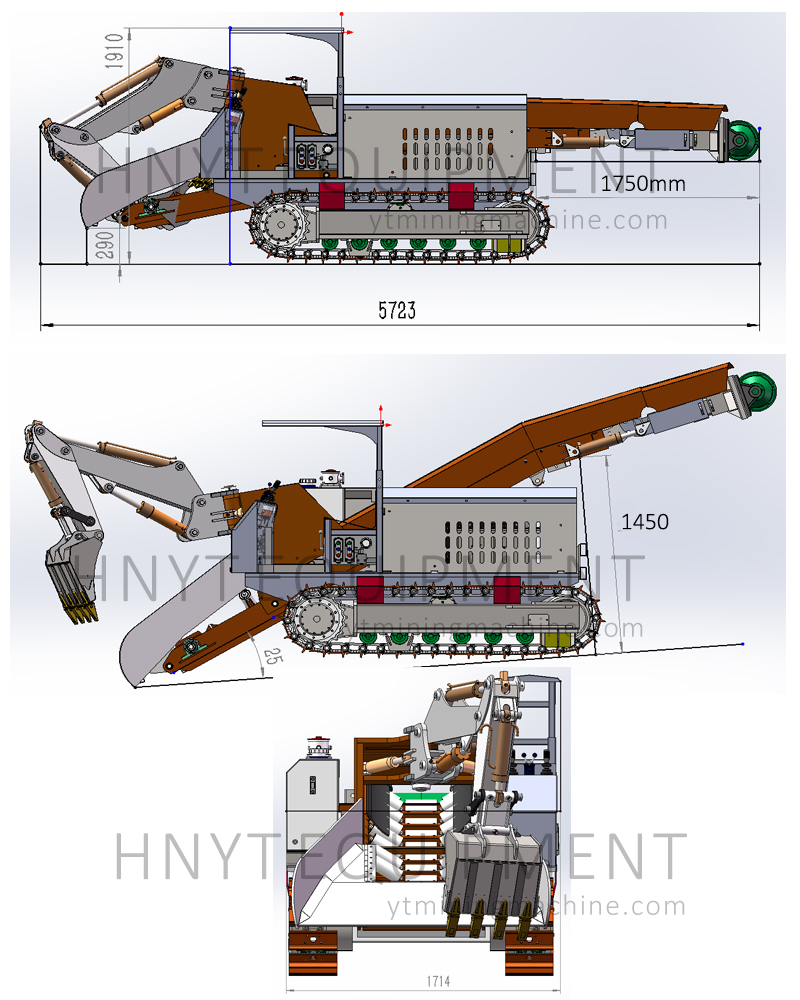

Outline Drawing of crawler mucking loader
| Crawler belt mucking loader parameter table | ||||
| Index | Unit | ZWY135-60 | ZWY135-80 | |
| Loading capacity | M3/H | ≤60 | ≤80 | |
| Total weight | KG | 5200±200 | 6200±200 | |
| Wheelbase | MM | / | / | |
| Gauge | MM | / | / | |
| Minimum turning radius | R | ≤3 | ≤3 | |
| Minimum ground clearance | MM | 280 | 300 | |
| Digging width | MM | 3500 | 4100 | |
| Digging depth | MM | 550 | 550 | |
| Digging height | MM | 2700 | 2800 | |
| Digging distance | MM | 1650 | 2010 | |
| Unloading height(customizable) | MM | 1450 | 1700 | |
| Unloading distance(customizable) | MM | 1750 | 2100 | |
| Gradeability | ° | ±12 | ±12 | |
| Conveyor belt speed | M/S | 0.8 | 0.8 | |
| Total motor power | KW | 22(Double 11) | 30(Double 15) | |
| Main motor power | KW | 22(Double 11) | 30(Double 15) | |
| Electric drum power | KW | 5.5 | / | |
| Fan power | KW | 0.8 | 1.5 | |
| Walking speed | KM/H | 2.1±0.05 | 2.1±0.05 | |
| Rated operating pressure | Mpa | 18 | 18 | |
| Dimensions | L | MM | 6030±50 | 6750±50 |
| W | MM | 1660±50 | 1820±50 | |
| H | MM | 1900±50 | 2060±50 | |
| Adapation dimension | M | 2.4*2.4 | 2.6*2.6 | |
