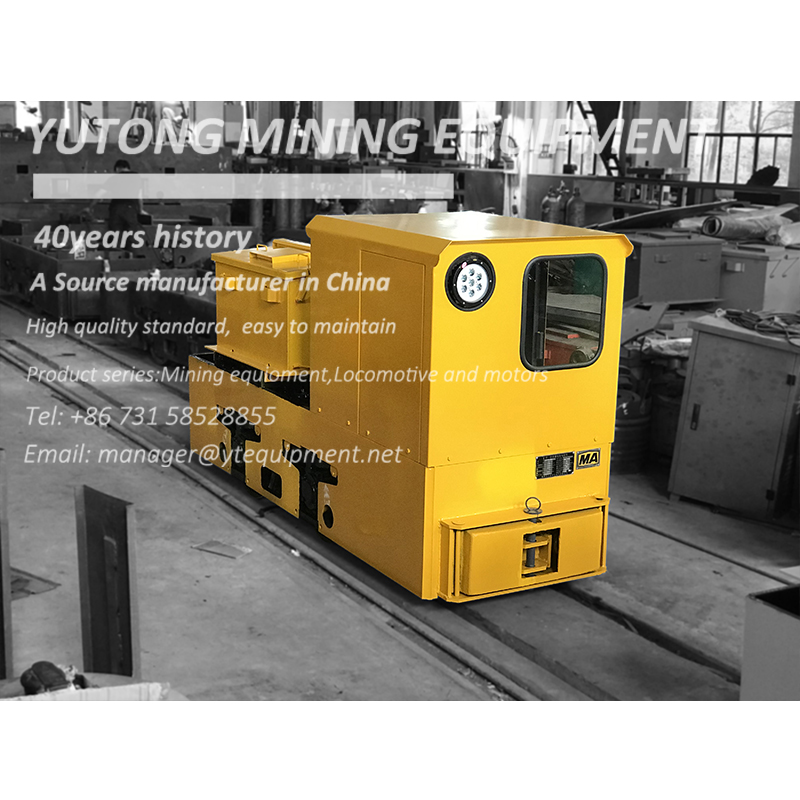

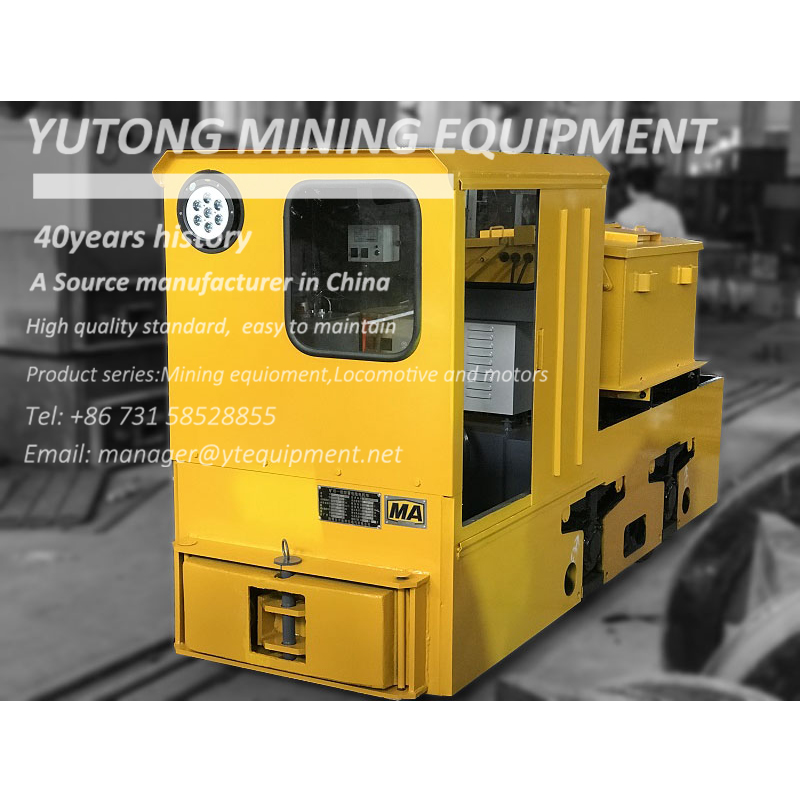

3.5Ton Battery Electric Locomotive is renewd based in the 3 Ton locomotive, the 3.5 Ton battery electric locomotive is equiped with hydraulic brake method, which is more safer when brake. The pull ablity is also increased, which could pull about 35 T
←15 Ton Battery Electric Locomotive
No Information→
| Model | CTY3.5/6、7、9G(B) | ||
| Total-weight | 3.5t | ||
| Track gague | 500、600、762 or 900mm | ||
| Tracktion force | 7.06kN | ||
| Max traction | 12.26kN | ||
| Speed | 7km/h | ||
| Battery device | Voltage | 90V | |
| Capacity | 385Ah | ||
| Motor power | 7.5 kW×2 | ||
| dimensions | Lenght | 3170mm | |
| Width | 920、1082 or 1220mm | ||
| Height | 1550mm | ||
| Wheel base | 850mm | ||
| Wheel diameter | Φ520mm | ||
| Min turn radius | 6m | ||
| Controlling way | Resistence or IGBT | ||
| Brake way | Mechnical brake or hydraulic | ||
