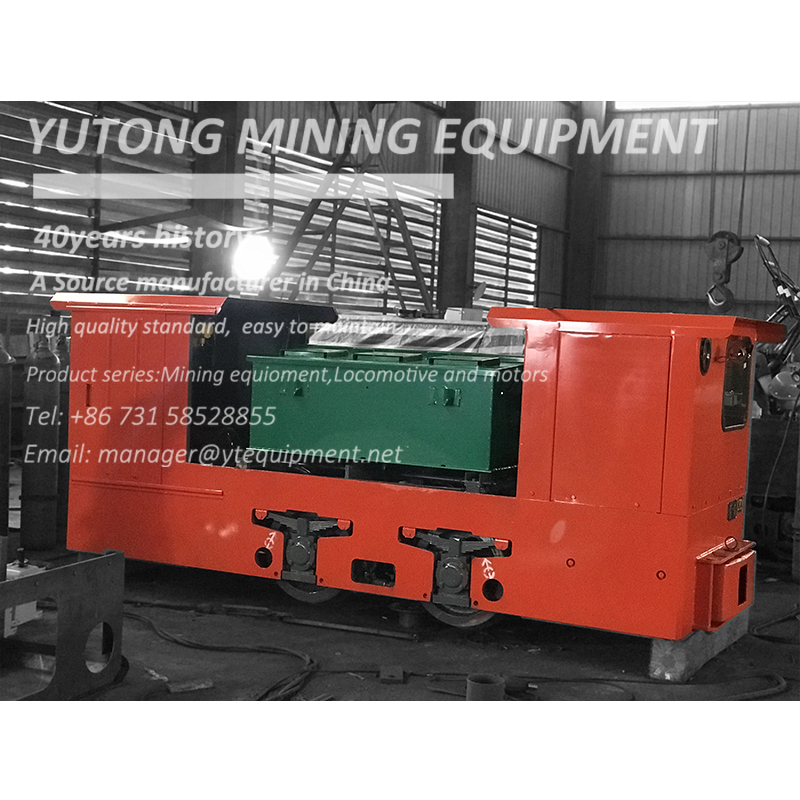

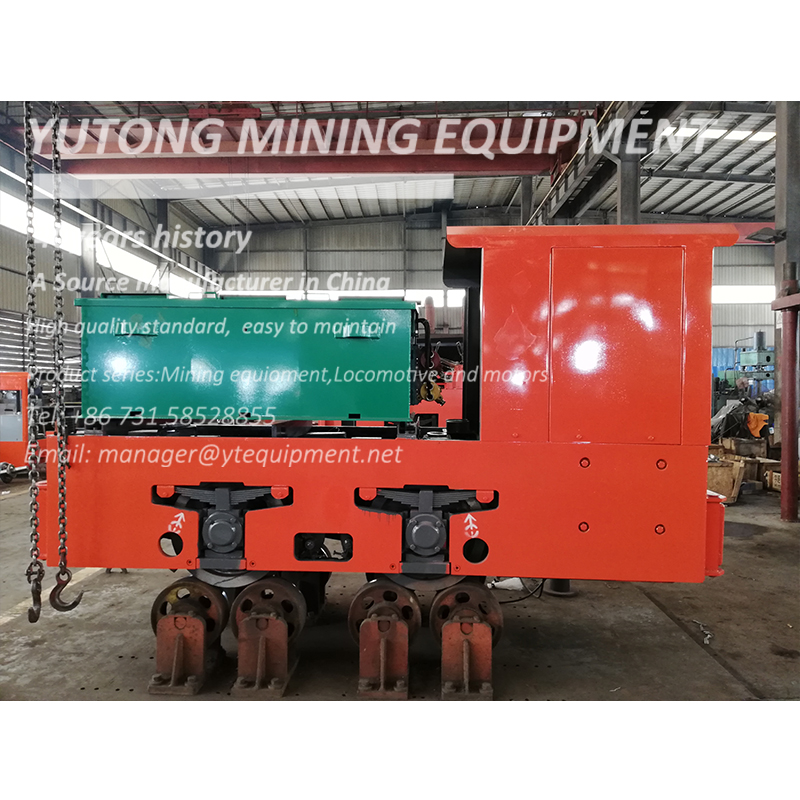

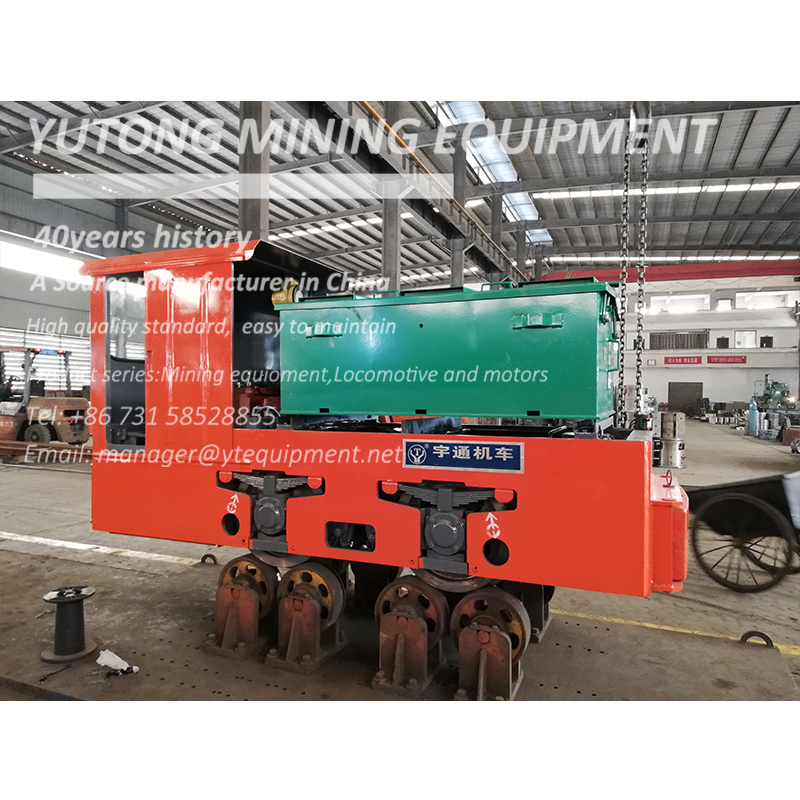

6 Ton Battery Electric Locomotive

We offers electric locomotive with battery as supply, which is durable and easy to maintenance. Our factory has more than 20 years of production and maintenance, got good feedback from South America and Europe.

Battery-powered locomotives are designed for horizontal rail transport especially in mines and enclosed spaces. They are also intended for use in potentially explosive environment with coal dust and methane in volume up to 1.5 %. Speed and engine torque is controlled by the frequency converter. Trolleys and axle bus-bars/pantographs are fitted with carbon or aluminum strips. Engine and brake control is proportional by means of one lever in its entire range of travel speed.

Explosion-proof special type accumulator industrial and mining electric locomotive is suitable for the main transport roadway of high gas mine as the power source of hauling mining car and rickshaw transport equipment.

	Model			CTY6/6、7、9G(B)
	Total-weight			6t
	Track gague			500、600、762 or 900mm
	Tracktion force			7.06kN
	Max traction			12.26kN
	Speed			7km/h
	Battery device		Voltage	90V
			Capacity	385Ah
	Motor power			7.5 kW×2
	dimensions	Lenght		3170mm
		Width		920、1082 or 1220mm
		Height		1550mm
		Wheel base		850mm
		Wheel diameter		Φ520mm
	Min turn radius			6m
	Controlling way			Resistence or IGBT
	Brake way			Mechnical brake or hydraulic
