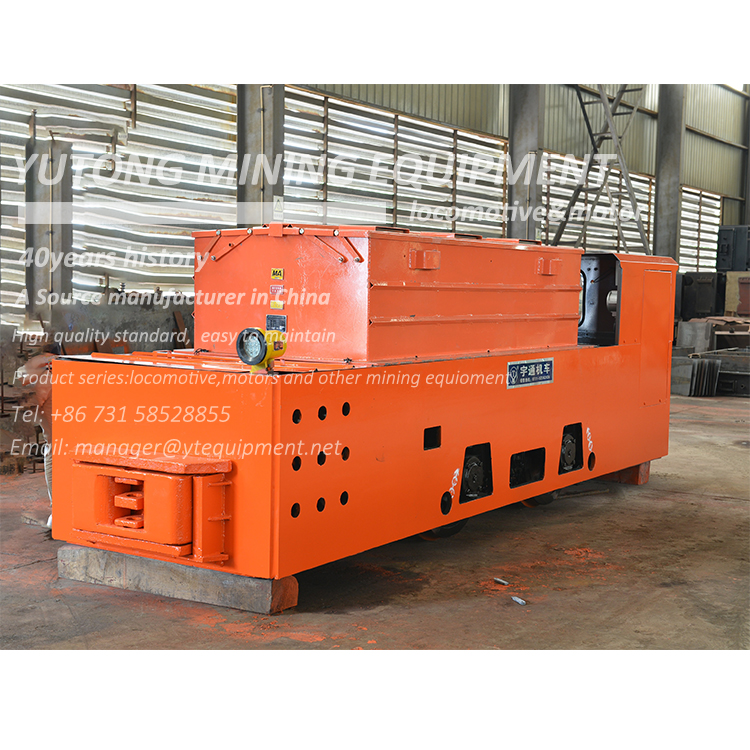

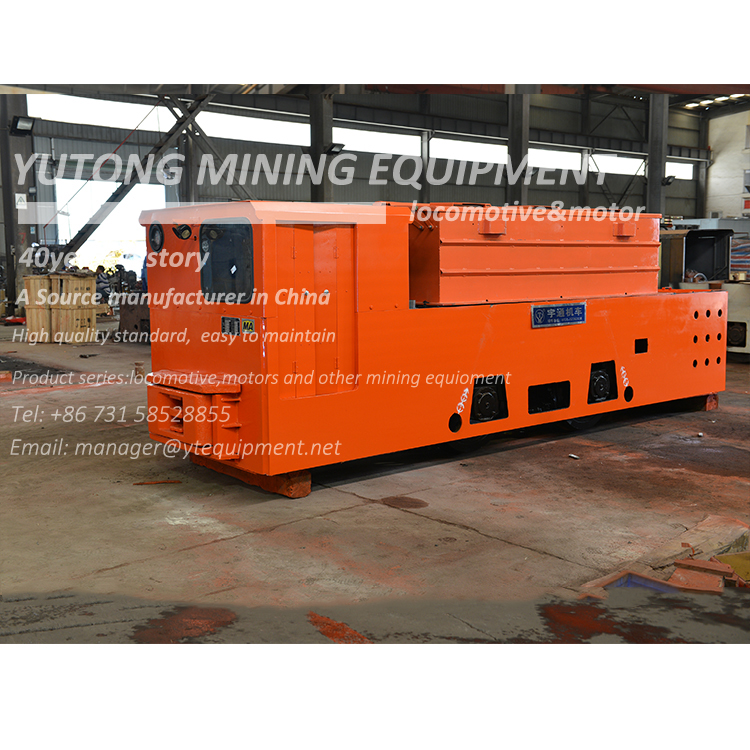

12 Ton Electric Mining Battery Locomotive

12 ton electric mining battery locomotive, the use of exhaust gas purification system that allows diesel engine exhaust emissions to meet explosion-proof "diesel technology for coal mine explosion test standard" requirement.

CJY10 Ton Underground Mining Trolley Locomotive

12 ton electric mining battery locomotive, the use of exhaust gas purification system that allows diesel engine exhaust emissions to meet explosion-proof "diesel technology for coal mine explosion test standard" requirement. Particularly suitable for the remote areas, lack of electricity, less electricity, gas and coal dust explosions which are dangerous places of the mine rail practical. So the traction is not only the advantage of a tractor battery, but also safer, more economical, easier maintenance. Practice confirmed that the product is the ideal auxiliary transport coal mine equipment.



Battery-powered locomotives are designed for horizontal rail transport especially in mines and enclosed spaces. They are also intended for use in potentially explosive environment with coal dust and methane in volume up to 1.5 %. They can work on slopes of rail lines up to 35‰ , with track gauge from 500 to 1060 mm, at ambient temperatures from -20°C to +40°C.


Model CTY12/679G(B)
Weight 12t
Track gauge 600762 or 900mm
Traction force 16.48kN
Max traction force 29.43kN
Speed 8.7km/h
Battery device voltage 192V
capacity 560Ah
Motor power 22Kw x 230Kw x 2
Dimensions Length 5100mm
width 10501212 or 1350mm
Height 1800mm
Wheel base 1220mm
Wheel diameter Φ680mm
Min turn radius 10m
Controller method ResistanceIGBT or frequency
Brake method MechnicalElectricAc frequency
