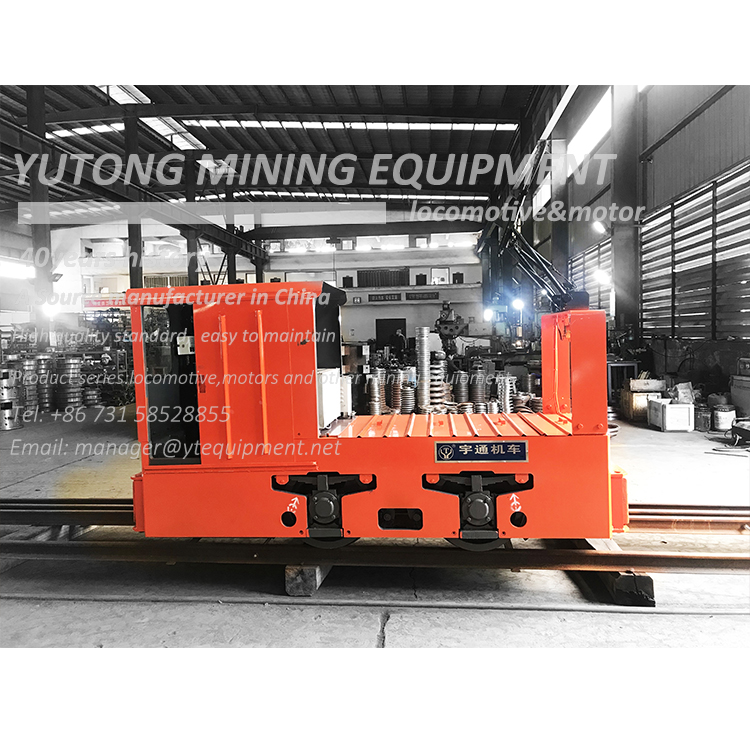

4 ton Electric Trolley Locomotive have 40 ton capacity of traction, this model locomotive is often be applied in the Uzbekistan gold mine
CJY4 ton Electric Trolley Locomotive have 40 ton capacity of traction, this model locomotive is often be applied in the Uzbekistan gold mine.
Quick details of 4 ton Electric Trolley Locomotive
| Motor Power | 7.5KW*2 |
| Dimensions(mm) | 3150x1050x1500 or as required |
| Max Traction | 12.26Kn/h |
| Max Speed | 18km/h |
| Track Gauge(mm) | 500,600,762,900 |
What should be pay attention to before the electric trolley locomotive go underground?
Before going underground, the electric trolley locomotive must remove the wire connecting the conductive frame, also the front and rear lights and the electrical appliances installed in the cab interior wall, but can not be removed the label on the end of the wire. At the same time, it is necessary to remove the upper cover and the roof of the cab, tie the removed wires to the frame, remove the front and rear lights, the pantograph frame and its driver, the control equipment in the cab, and the controller to be supported by wood. After the electric locomotive already in underground, restore all the removed parts, and check the correctness of the connection of the wires and electrical equipment according to the wiring installation drawing.
