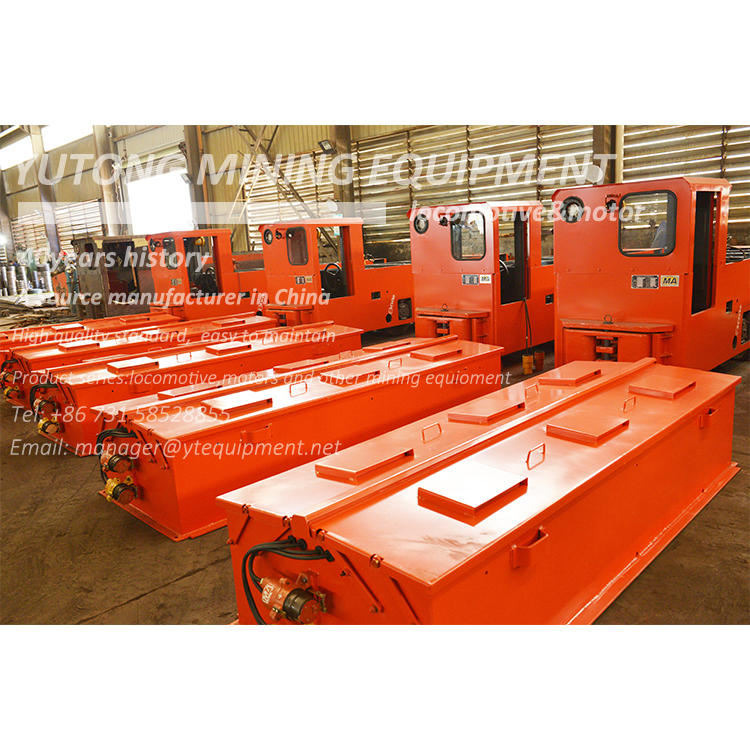

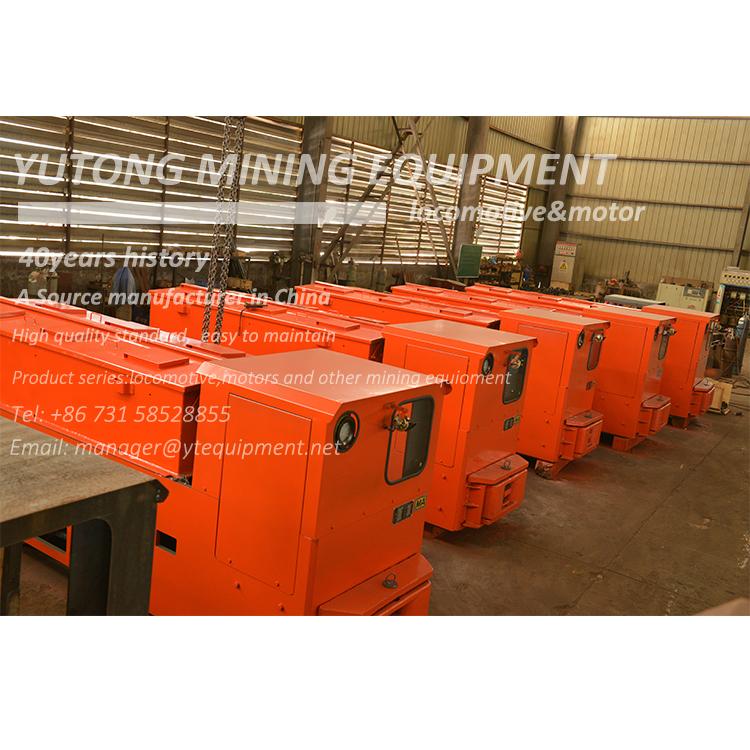

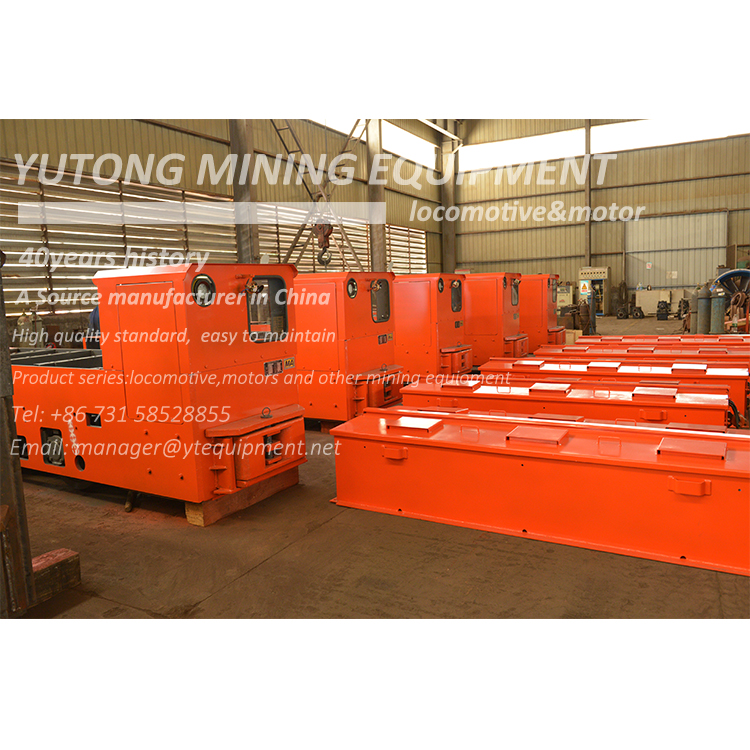

The 15 ton battery locomotive suitable for transportation and traction of non-explosion-proof places such as narrow-gauge railway grounds in industries or metallurgy, mining, forests, railways, and highway tunnel construction.
The 15 Ton underground mining battery locomotive is supplied with DC power from a battery box. The DC power is converted into three-phase AC power with adjustable voltage and frequency by a traction converter for two AC squirrel-cage induction motors. Each motor rotor drives a gear reduction transmission box through a universal joint, and is reduced to the axle through a two-stage gear, thereby traction the locomotive.
Facotry Video of our product
15ton Battery Locomotive |
||
Adhesive / total weight (t) |
15 |
|
Track gauge (mm) |
600,762 or 900 |
|
Traction (KN) |
18.93 |
|
Max. Traction (KN) |
36.78 |
|
Speed(km/h) |
9.6 |
|
Max. Speed(km/h) |
19.2 |
|
Battery Voltage (V) |
256 |
|
Battery Capacity (Ah) |
620 |
|
Power (KW) |
30*2 |
|
Dimensions |
Length(mm) |
5200 |
Width(mm) |
1400 |
|
Height(mm) |
2140 |
|
Coupler height(mm) |
320/430 |
|
Wheelbase (mm) |
2200 |
|
Wheel diameter (mm) |
680 |
|
Min Curve radius (m) |
15 |
|
Controller |
AC frequency conversion |
|
Braking method |
Mechanical Brake |
