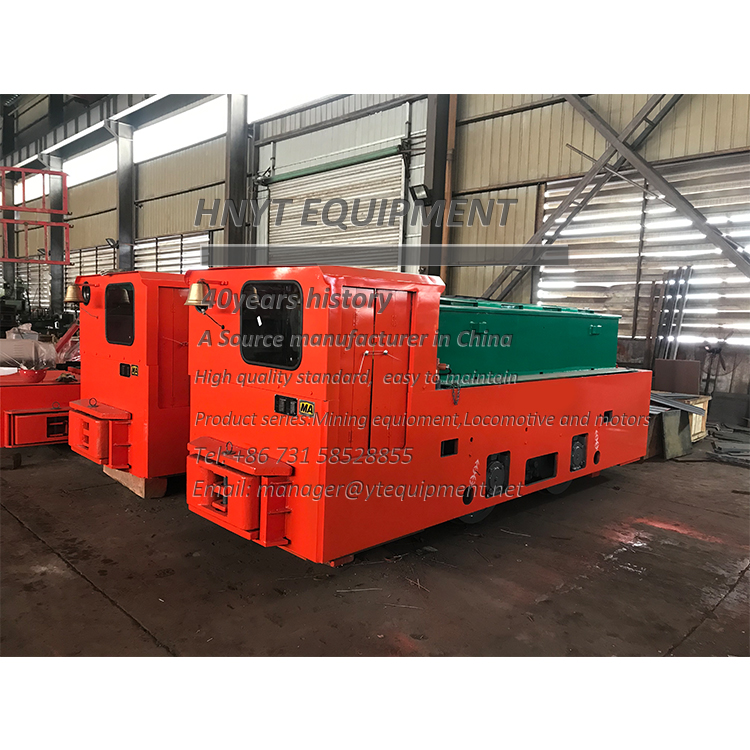

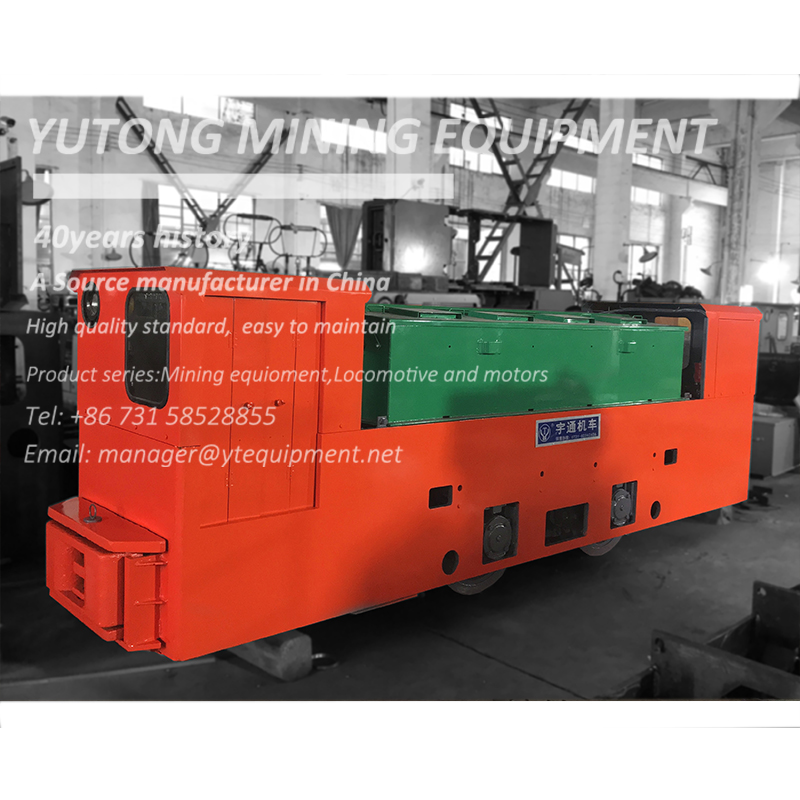

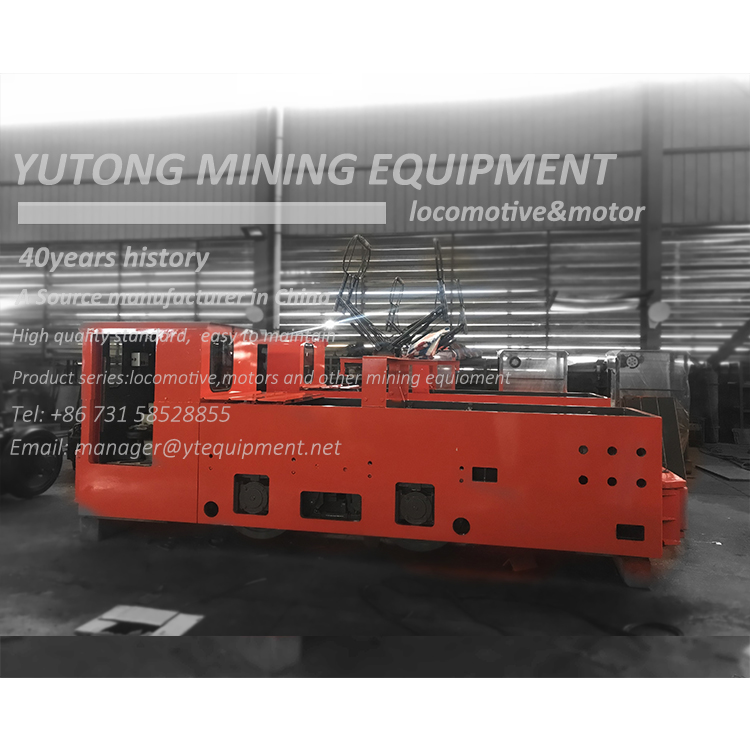

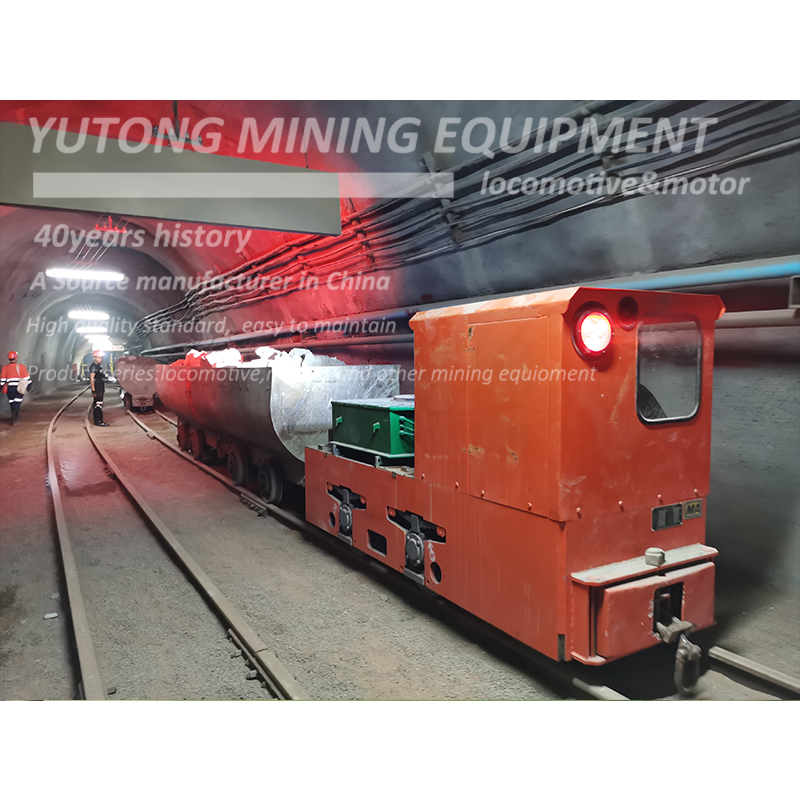

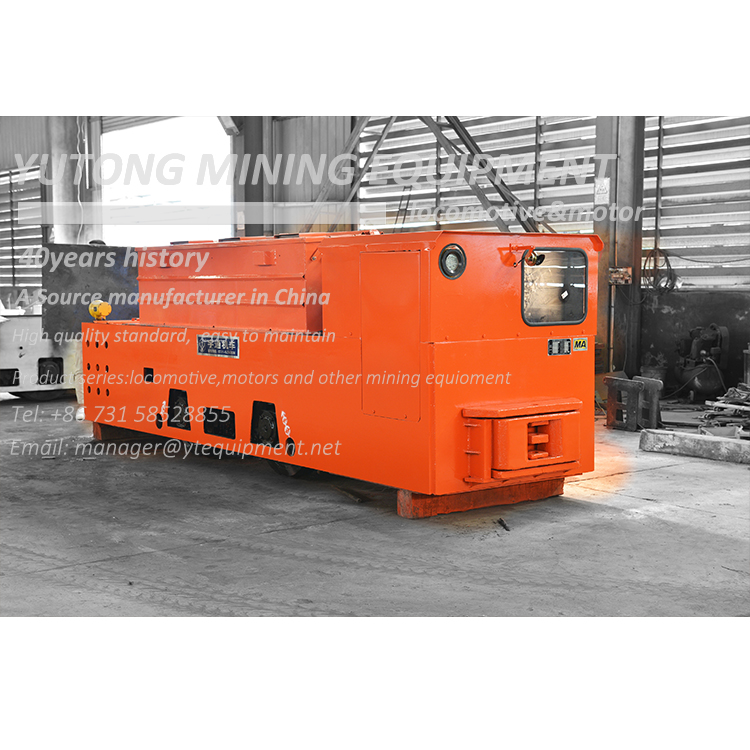

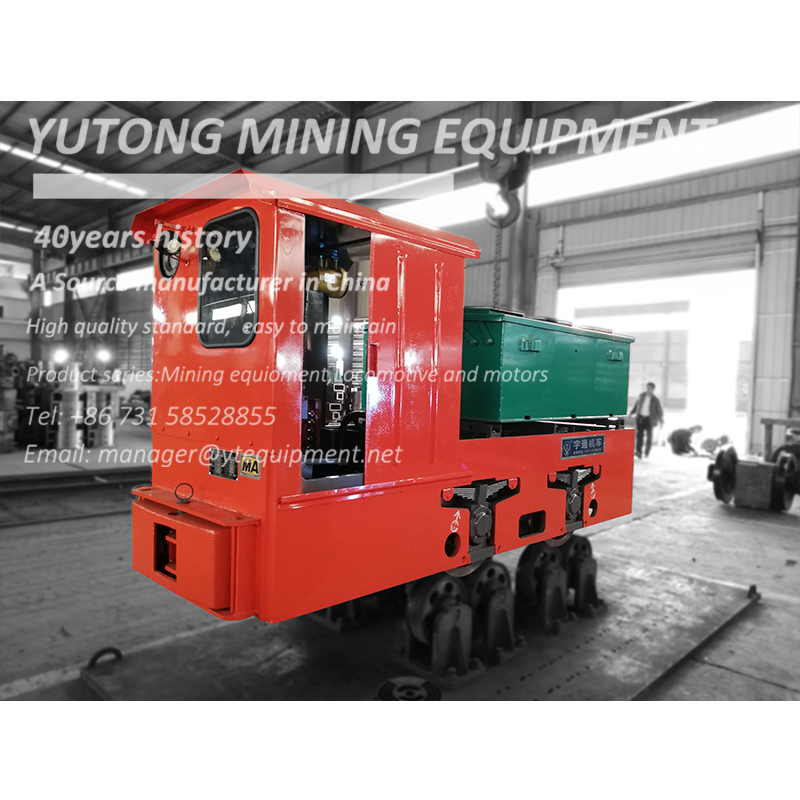

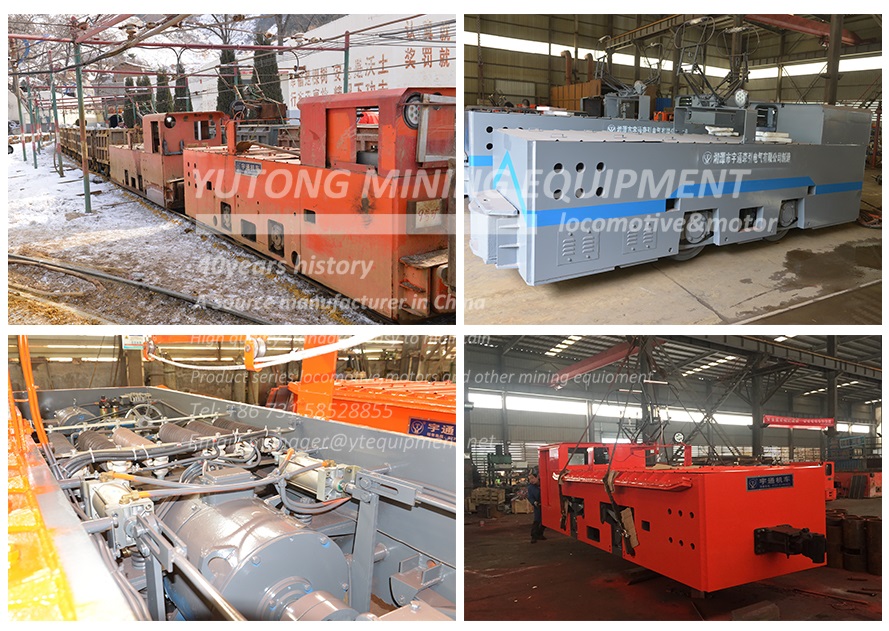

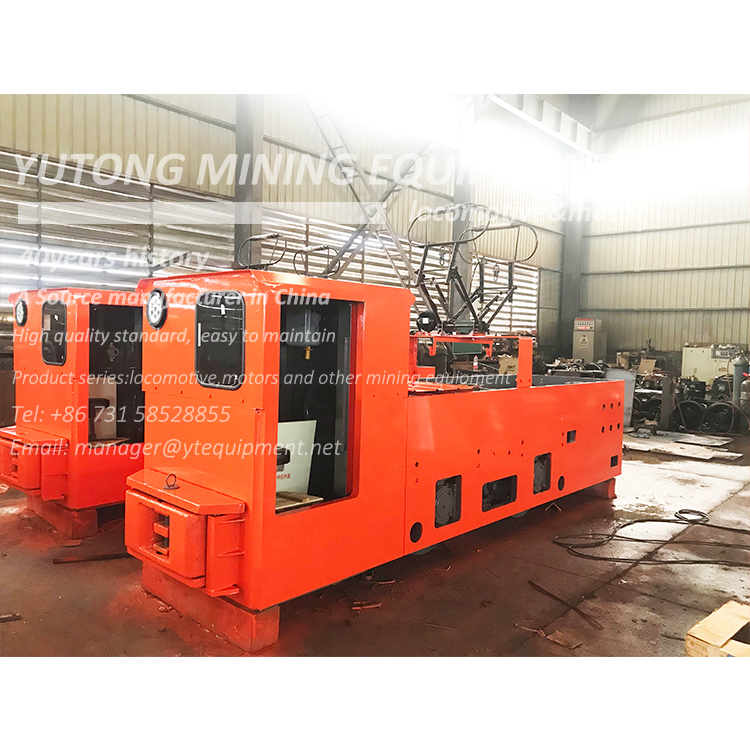

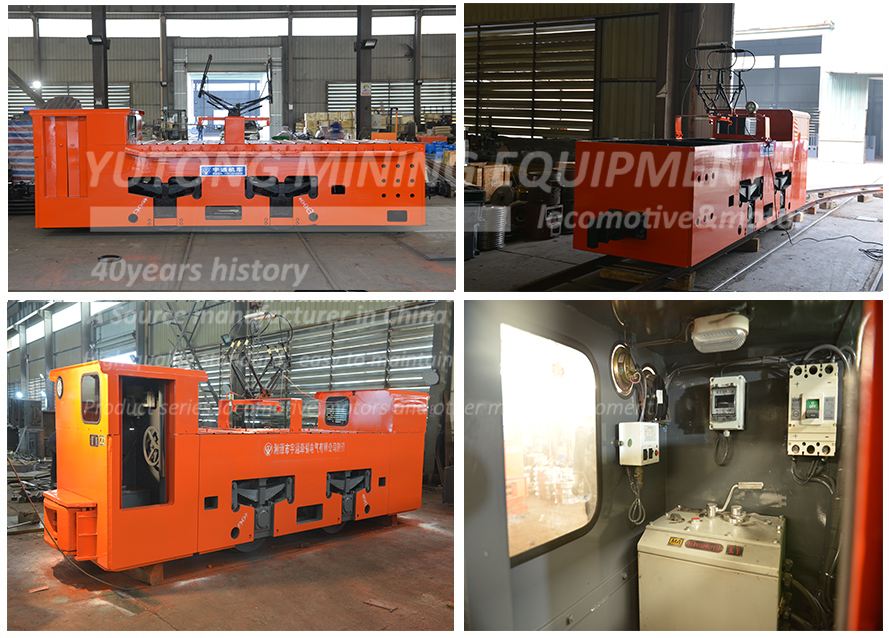

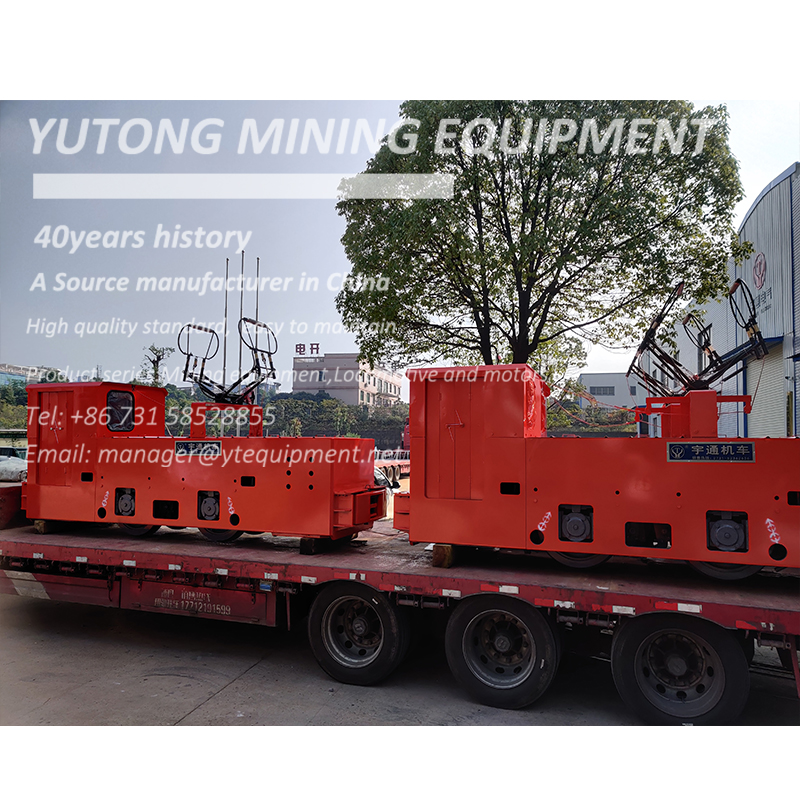

The 7 Ton Underground Mining trolley locomotive is mainly used for the no-gas mine,
level one, level two gas mine and underground mine with fresh wind flow.
Quick information of this 7ton trolley locomotive
Dead-weight :7 ton
Voltage :250 or 550V
Motor Power : 21x2 or 24kw x2
Pull traction(ton) : 70ton ores.
7ton Trolley Locomotive |
|||
Model |
CJY7/6、7、9G(B)(P) |
||
Adhesive / total weight (t) |
7t |
||
Track gauge (mm) |
600、762 or 900mm |
||
Traction |
13.05kN |
15.09kN |
|
Max. Traction (KN) |
17.2kN |
||
Speed |
11km/h |
||
Direct Voltage |
250V |
550V |
|
motor power |
21Kw×2 |
24kW×2 |
|
Dimensions |
Length |
4550mm |
|
Width |
1050、1212 or 1350mm |
||
Height |
1600mm |
||
Wheel Base |
1100mm |
||
Wheel Diameter |
Φ680mm |
||
Operational height of current-controller |
1800~2200mm |
||
Min Curve radius (m) |
7m |
||
Controller |
Resistance or IGBT |
||
Braking method |
Mechanical Brake |
