This versatile 6 ton mining diesel truck for tunnel features a high quality suspension system that provides a smooth and comfortable ride, even on rough terrain. The powerful diesel engine delivers excellent performance and fuel efficiency, while the spacious cab offers a safe and ergonomic work environment for the operator. This versatile truck is ideal for a wide range of mining applications, including hauling rock, ore, and other materials.

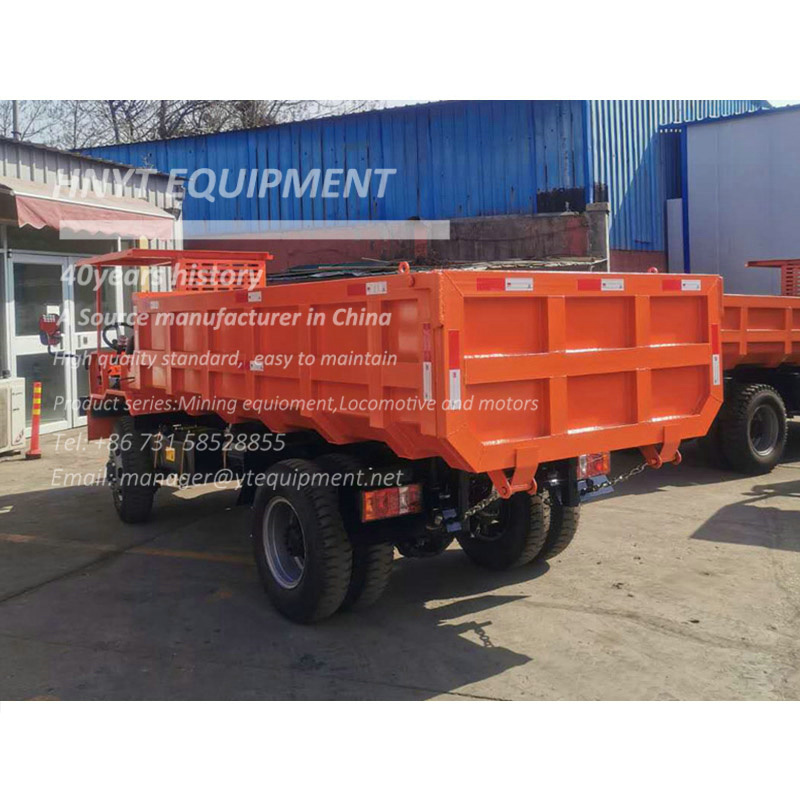

Versatile 6 ton mining diesel truck for tunnel
This versatile 6 ton mining diesel truck for tunnel features a high quality suspension system that provides a smooth and comfortable ride, even on rough terrain. The powerful diesel engine delivers excellent performance and fuel efficiency, while the spacious cab offers a safe and ergonomic work environment for the operator. This versatile truck is ideal for a wide range of mining applications, including hauling rock, ore, and other materials.
Video

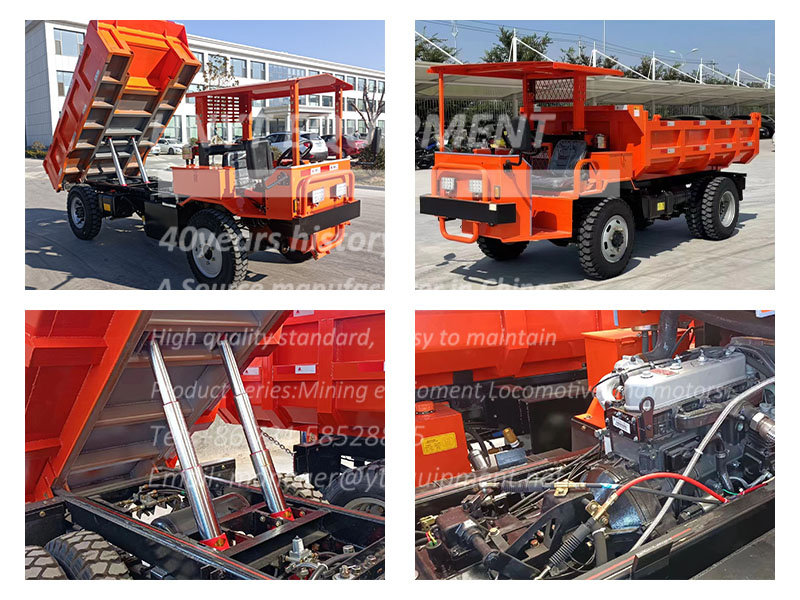

Shipment and site details
| Load capacity | 4 ton | 5 ton | 6 ton | 8 ton | 10 ton | 12 ton |
| Fuel type | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel |
| Motor model | Changchai 490 | Yunnei 490 | Yunnei 490 | Yunnei 4102 | Yunnei 4102 | Yunnei 4105 |
| Motor power | 46KW (63 HP) | 46KW (63 HP) | 46KW (63 HP) | 81KW (110 HP) | 81KW (110 HP) | 90KW (122 HP) |
| Gearbox model | 530 (12-speed) | 530 (Twelve high and low speed gears) | 530 (Twelve high and low speed gears) | 546 (Twelve high and low speed gears) | 546 (Twelve high and low speed gears) | 545 (Twelve high and low speed gears) |
| Rear axle | SL176T | DF1069 | DF1069 | DF1092 | DF1092 | DF1098D |
| Front axle | SL175T | SL178 | SL178 | SL2059 | SL2059 | SL450 |
| Braking system | Air Brake | Air Brake | Air Brake | Air Brake | Air Brake | Air Brake |
| Rear wheel track | 1450mm | 1630mm | 1630mm | 1800mm | 1800mm | 2150mm |
| Front wheel track | 1450mm | 1630mm | 1630mm | 1800mm | 1800mm | 1900mm |
| Wheelbase | 2400mm | 2400mm | 2620mm | 2620mm | 2650mm | |
| Chassis | Main beam: Height 120mm * Width 60mm * Thickness 8mm, Bottom beam: Height 80mm * Width 60mm * Thickness 6mm | Main beam: Height 120mm * Width 60mm * Thickness 8mm, Bottom beam: Height 80mm * Width 60mm * Thickness 6mm | Main beam: Height 120mm * Width 60mm * Thickness 8mm, Bottom beam: Height 80mm * Width 60mm * Thickness 8mm | Main beam: Height 140mm * Width 60mm * Thickness 10mm, Bottom beam: Height 80mm * Width 60mm * Thickness 8mm | Main beam: Height 200mm * Width 60mm * Thickness 10mm, Bottom beam: Height 80mm * Width 60mm * Thickness 8mm | |
| Unloading method | Rear unloading | Rear unloading, double 800mm hydraulic jacks | Rear unloading, double 800mm hydraulic jacks | Rear unloading, double 110mm hydraulic jacks | Rear unloading, double 110mm hydraulic jacks | Rear unloading, double 110mm*950mm hydraulic jacks |
| Front tire model | 650-16 steel wire tire | 700-16 mining tire | 700-16 mining tire | 750-16 mining tire | 825-16 mining tire | 825-16 mining tire |
| Rear tire model | 700-16 steel wire tire (dual) | 700-16 mining tire (double tire) | 700-16 mining tire (double tire) | 750-16 mining tire (double tire) | 825-16 mining tire (double tire) | 825-16 mining tire (double tire) |
| D imensions | L*W*H : 3950mm*1450mm*1330mm | L*W*H : 4900mm*1630mm*1400mm | L*W*H : 4900mm*1630mm*1400mm | L*W*H : 5200mm*1800mm*1750mm | L*W*H : 5400mm*1800mm*1750mm | L*W*H : 5100mm*2150mm*1750mm |
| Cargo dimensions | L*W*H : 2400mm*1330mm*450mm | L*W*H : 3100mm*1600mm*500mm | L*W*H : 3100mm*1600mm*500mm | L*W*H : 3400mm*1750mm*750mm | L*W*H : 3600mm*1750mm*750mm | L*W*H : 3400mm*2100mm*750mm |
| Cargo plate thickness | Bottom 8mm, Side 5mm | Bottom 10mm, Side 5mm | Bottom 10mm, Side 5mm | Bottom 10mm, Side 5mm | Bottom 10mm, Side 5mm | Bottom 10mm, Side 6mm |
| Steering wheel | Hydraulic Power Steering | Hydraulic Power Steering | Hydraulic Power Steering | Hydraulic Power Steering | Hydraulic Power Steering | Hydraulic Power Steering |
| Cargo volume | 1.6 m3 | 2.2 m3 | 2.2 m3 | 4.3 m3 | 4.7 m3 | 5 m3 |
