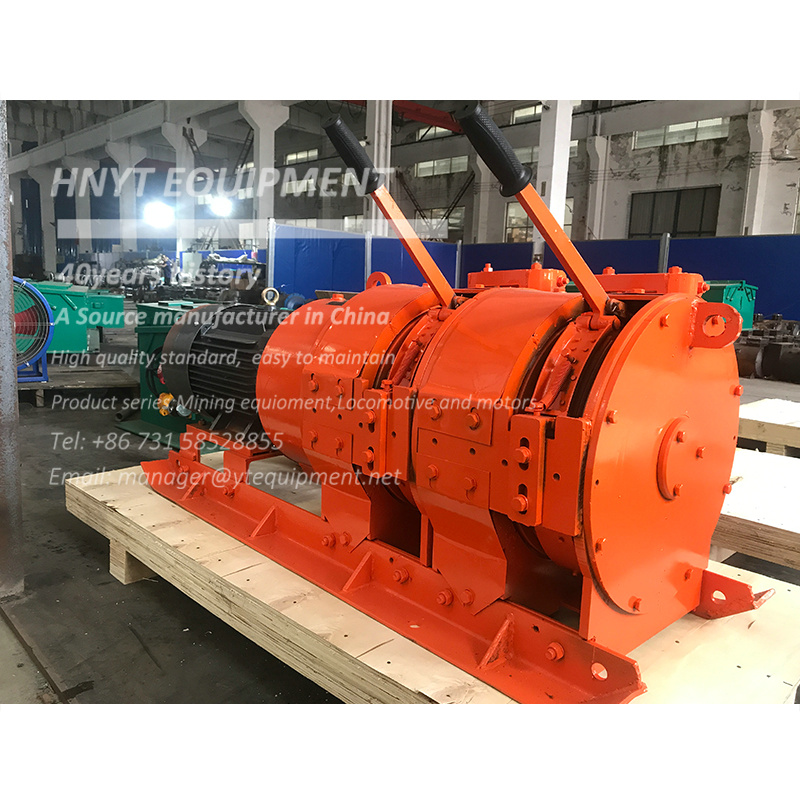

15kw electric rake winch for mining
15kw electric rake winch is a heavy-duty machine designed for medium-scale mining applications. With a power of 15 kW, the 2JP-15 winch is ideal for hoisting, dragging, and positioning materials in underground and surface mining operations.The 2JP-15 winch is easy to operate and maintain, making it a reliable and safe choice for mining operation.
Shipment and site details
| Item | Unit | Model | ||||
| 2JP-7.5 | 2JP-15 | 2JP-22 | 2JP-30 | |||
| Average pulling force | KN | 8 | 14 | 20 | 27.5 | |
| Average speed of working steel wire | main steel wire | m/s | 1 | 1.1 | 1.2 | 1.2 |
| sub steel wire | 1 | 1.5 | 1.6 | 1.6 | ||
| Diameter of steel wire | main steel wire | mm | 9.3 | 12.5 | 14 | 15.5 |
| sub steel wire | mm | 9.3 | 11 | 11 | 14 | |
| Rope | Diameter | mm | 205 | 225 | 280 | 280 |
| Wheel dia | mm | 350 | 435 | 510 | 510 | |
| Width | mm | 80 | 125 | 160 | 160 | |
| Rope capacity of working drum | Main rope | m | 45 | 80 | 80 | 80 |
| Sub Rope | m | 45 | 100 | 100 | 110 | |
| Motor power | kw | 7.5 | 15 | 22 | 30 | |
| Motor Rotating speed | m/s | 1440 | 1460 | 1470 | 1470 | |
| Dimensions | mm | 1210*565*490 | 1525*660*620 | 1600*730*640 | 1650*820*700 | |
| Weight(dont including the rake) | KG | ≤390 | ≤660 | ≤900 | ≤1155 | |
