The ZWY120 wheel scraper mucking loader is designed for maximum mucking capacity in large underground mining operations. It features a massive bucket capacity, a powerful engine, and a robust design that can handle even the most challenging materials.

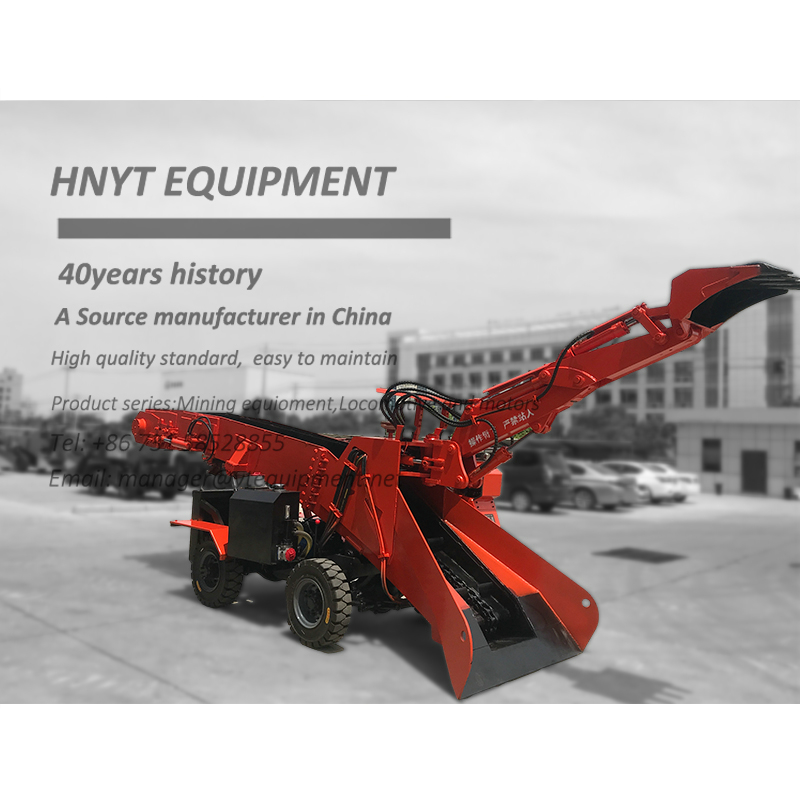

ZWY120 Wheel Scraper Mucking Loader
The ZWY120 wheel scraper mucking loader is designed for maximum mucking capacity in large underground mining operations. It features a massive bucket capacity, a powerful engine, and a robust design that can handle even the most challenging materials.

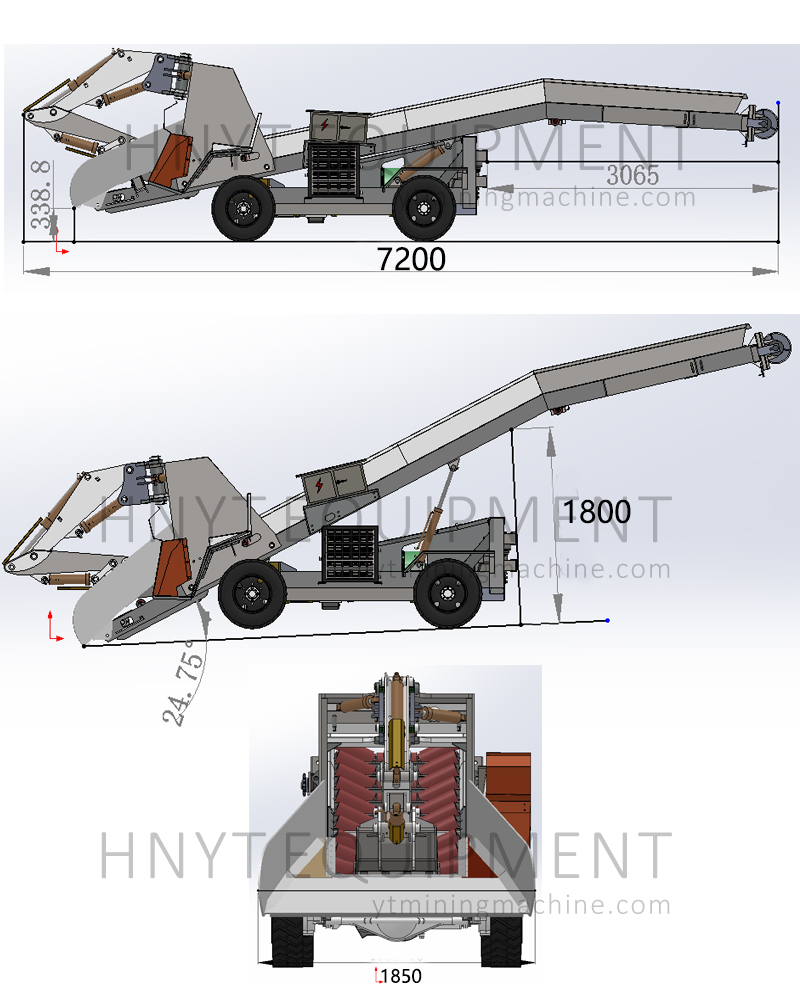

Outline Drawing of crawler mucking loader
←ZWY80 Wheel Scraper Mucking Loader
No Information→
| Wheel scraper mucking loader parameter table | ||||
| Index | Unit | ZWY-1.7-80 | ZWY-1.8-120 | |
| Loading capacity | M3/H | ≤80 | ≤120 | |
| Total weight | KG | 5800±200 | 6200±200 | |
| Wheelbase | MM | 1600 | 1780 | |
| Gauge | MM | 1460/1460 | 1640/1480 | |
| Minimum turning radius | R | ≤5 | ≤6 | |
| Minimum ground clearance | MM | 190 | 190 | |
| Digging width | MM | 3200 | 3500 | |
| Digging depth | MM | 450 | 540 | |
| Digging height | MM | 2900 | 3100 | |
| Digging distance | MM | 1650 | 1750 | |
| Unloading height(customizable) | MM | 1700 | 1900 | |
| Unloading distance(customizable) | MM | 1900 | 3000 | |
| Gradeability | ° | ±12(Hard ground) | ±12(Hard ground) | |
| Conveyor belt speed | M/S | 0.54 | 0.54 | |
| Total motor power | KW | 30(Double 15) | 30(Double 15) | |
| Main motor power | KW | 30(Double 15) | 30(Double 15) | |
| Electric drum power | KW | / | / | |
| Fan power | KW | 0.8 | 0.8 | |
| Walking speed | KM/H | High 5.5,low 3 | High 5.5,low 3 | |
| Rated operating pressure | Mpa | 15 | 15 | |
| Dimensions | L | MM | 6600±50 | 7500±50 |
| W | MM | 1750±50 | 1850±50 | |
| H | MM | 1800±50 | 2000±50 | |
| Adapation dimension | M | 2.4*2.4 | 2.8*2.8 | |
