The ZWY80 crawler belt mucking loader provides superior traction and stability on uneven and slippery surfaces, ensuring optimal performance and safety in underground mining operations. Its wide crawler tracks and heavy-duty design enable it to handle steep slopes and loose materials with ease, reducing the risk of accidents and downtime.
ZWY80 Crawler Belt Mucking Loader
The ZWY80 crawler belt mucking loader provides superior traction and stability on uneven and slippery surfaces, ensuring optimal performance and safety in underground mining operations. Its wide crawler tracks and heavy-duty design enable it to handle steep slopes and loose materials with ease, reducing the risk of accidents and downtime.

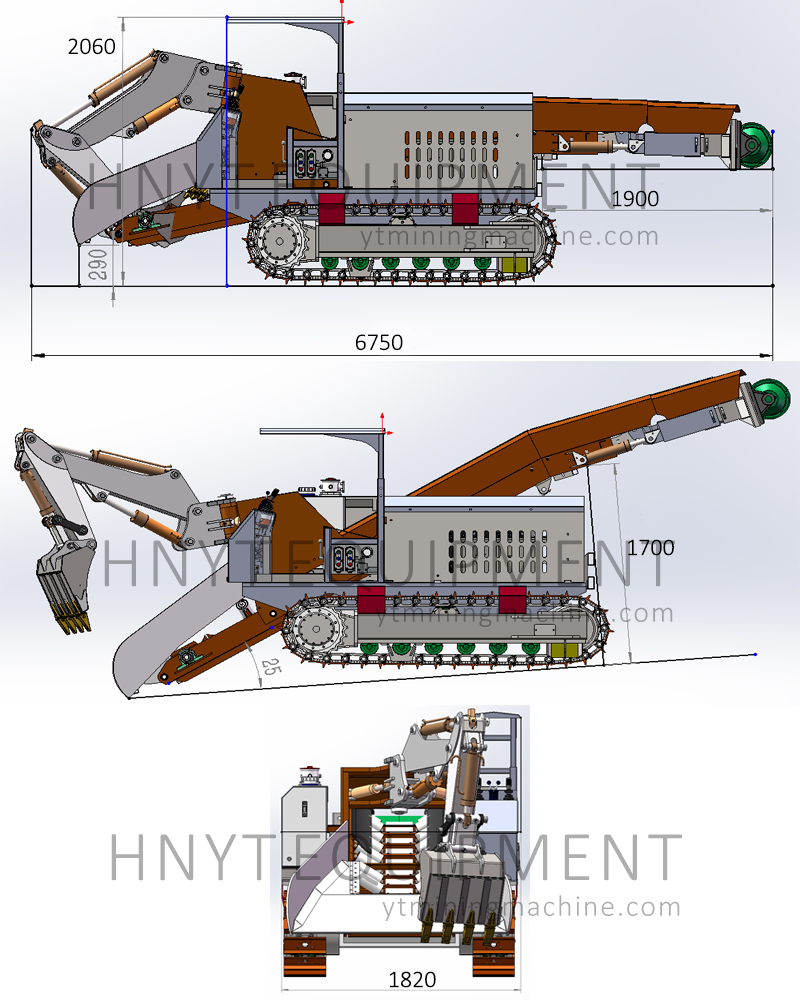

Outline Drawing of crawler mucking loader
| Crawler belt mucking loader parameter table | ||||
| Index | Unit | ZWY135-60 | ZWY135-80 | |
| Loading capacity | M3/H | ≤60 | ≤80 | |
| Total weight | KG | 5200±200 | 6200±200 | |
| Wheelbase | MM | / | / | |
| Gauge | MM | / | / | |
| Minimum turning radius | R | ≤3 | ≤3 | |
| Minimum ground clearance | MM | 280 | 300 | |
| Digging width | MM | 3500 | 4100 | |
| Digging depth | MM | 550 | 550 | |
| Digging height | MM | 2700 | 2800 | |
| Digging distance | MM | 1650 | 2010 | |
| Unloading height(customizable) | MM | 1450 | 1700 | |
| Unloading distance(customizable) | MM | 1750 | 2100 | |
| Gradeability | ° | ±12 | ±12 | |
| Conveyor belt speed | M/S | 0.8 | 0.8 | |
| Total motor power | KW | 22(Double 11) | 30(Double 15) | |
| Main motor power | KW | 22(Double 11) | 30(Double 15) | |
| Electric drum power | KW | 5.5 | / | |
| Fan power | KW | 0.8 | 1.5 | |
| Walking speed | KM/H | 2.1±0.05 | 2.1±0.05 | |
| Rated operating pressure | Mpa | 18 | 18 | |
| Dimensions | L | MM | 6030±50 | 6750±50 |
| W | MM | 1660±50 | 1820±50 | |
| H | MM | 1900±50 | 2060±50 | |
| Adapation dimension | M | 2.4*2.4 | 2.6*2.6 | |
