Wheel Belt Mucking loader

The wheel belt type mucking loader is a continuous operation and high-efficiency slagging equipment suitable for large medium and small roadways with a working face of 1.8 meters * 1.8 meters and above. Mainly used in coal mines and non-coal mines wat

CJY10 Ton Underground Mining Trolley Locomotive

The wheel type mucking loader is a continuous operation and high-efficiency slagging equipment suitable for large medium and small roadways with a working face of 1.8 meters * 1.8 meters and above. Mainly used in coal mines and non-coal mines water diversion tunnel engineering urban pipe network excavation and loading operations. The working principle is to excavate and transport various ore and slag materials and directly load them into hopper trucks agricultural vehicles or other transportation equipment which greatly improves work efficiency. It is an ideal mechanized slagging equipment for mines and tunnels.
This series of mucking loader integrates walking digging collecting conveying and loading. The structure is compact the driving force is large the picking range is wide the lifting positioning is flexible and adjustable the material transportation speed is fast and the rock can be fully loaded without leaving dead corners. It does not require manual assistance to clean the working surface has the characteristics of stable loading flexible operation environmental protection energy saving no exhaust gas low use cost continuous efficiency and labor saving.

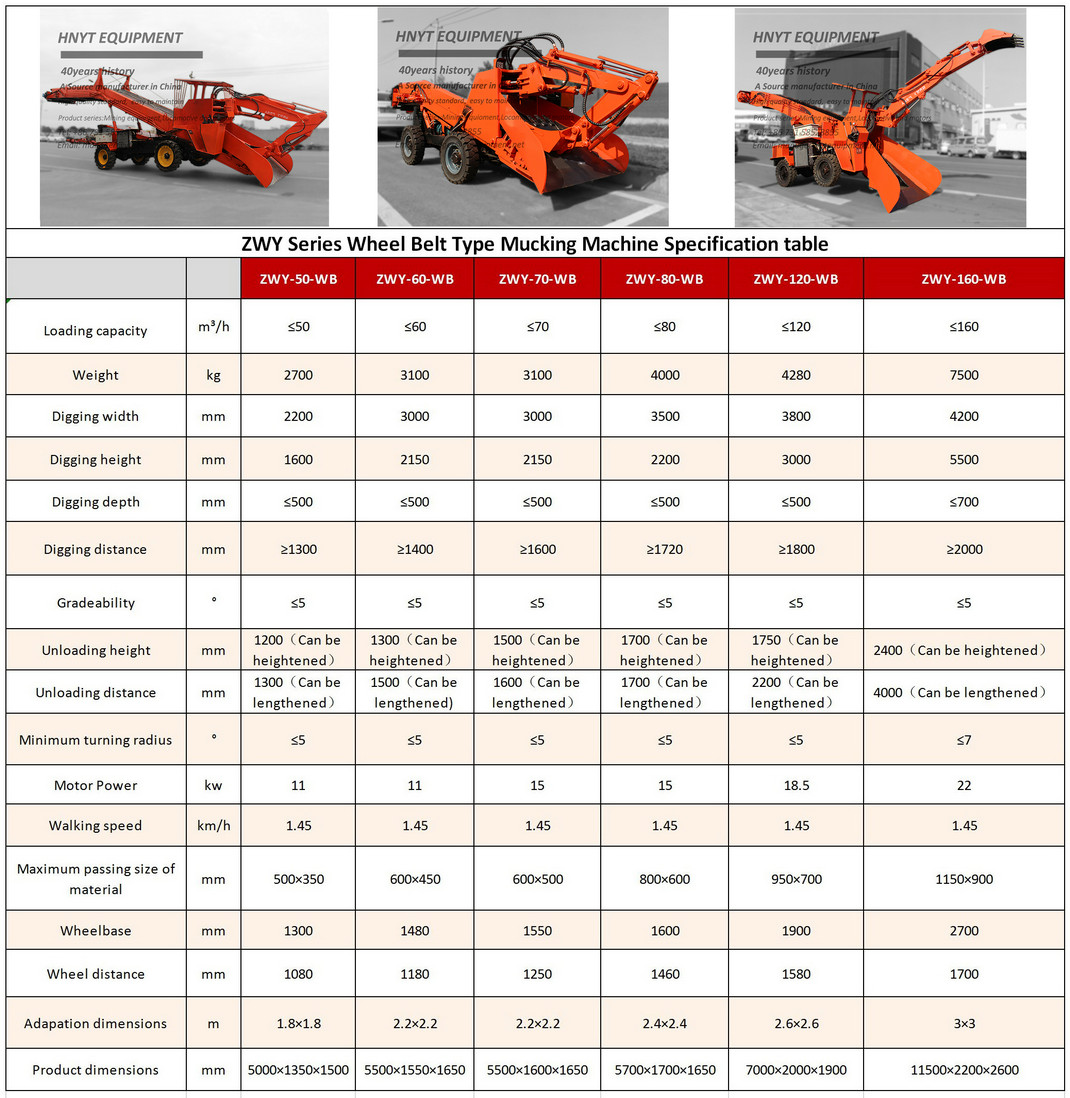

Wheel Belt Mucking loader(图1)

Wheel Belt Mucking loader(图2)

Wheel Belt Mucking loader(图3)

Wheel Belt Mucking loader(图4)


Wheel Belt Mucking loader(图5)

Wheel Belt Mucking loader(图6)


Wheel Belt Mucking loader(图7)


Wheel Belt Mucking loader(图8)

Wheel Belt Mucking loader(图9)

Wheel Belt Mucking loader(图10)
