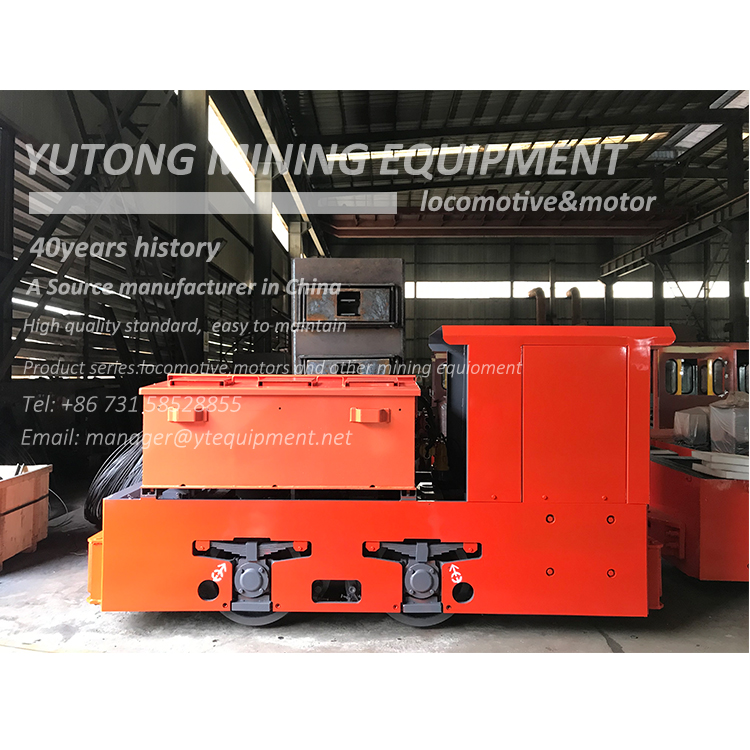

5 Ton Battery Locomotive

The 5 Ton Electric Mining Battery Locomotive is most applied in those smallmiddle mines or tunnel construction. This type of locomotive could pull about 50 ton ores at the slope of 3‰ it will be a good choice for small or middle mines.

CJY10 Ton Underground Mining Trolley Locomotive

Product Description:

The 5 ton battery locomotive is applied in small or middle mines it shall pull about 50tonne ores. Before purchased you should be choose your configuration requirements.
The configuration could be choose as follows:
1. Rail gauge
2.Controller method
3.Brake method
4.Explosion-proof type or normal type
5.Lithium battery or lead-acid battery

Operation Video




Hot Tags: 5 ton battery locomotive, China, manufacturers, suppliers, factory, customized, price
Model CTY5/679G(B)
Total-weight 5t
Track gague 500600762 or 900mm
Tracktion force 7.06kN
Max traction 12.26kN
Speed 7km/h
Battery device Voltage 90V
Capacity 385Ah
Motor power 7.5 kW×2
dimensions Lenght 3170mm
Width 9201082 or 1220mm
Height 1550mm
Wheel base 850mm
Wheel diameter Φ520mm
Min turn radius 6m
Controlling way Resistence or IGBT
Brake way Mechnical brake or hydraulic
