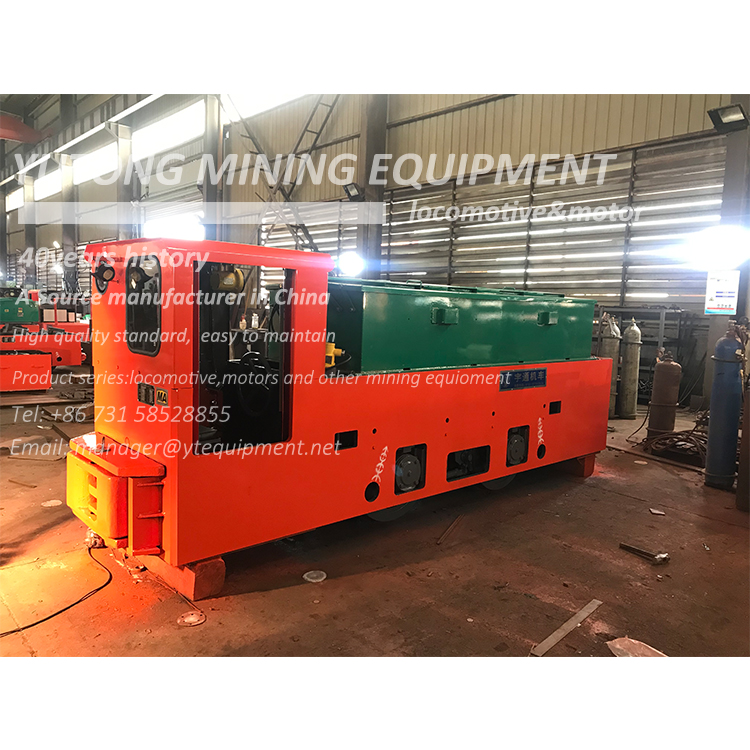

8 Ton Battery Locomotive

This 8 ton battery locomotive have 2 types one is for normal and the other is for anti-explosion. it could suitable for the coal mining or other mining that do not exist gas.

CJY10 Ton Underground Mining Trolley Locomotive

Battery-powered locomotives are designed for horizontal rail transport especially in mines and enclosed spaces. They are also intended for use in potentially explosive environment with coal dust and methane in volume up to 1.5 %. They can work on slopes of rail lines up to 35‰ with track gauge from 500 to 1060 mm at ambient temperatures from -20°C to +40°C.

Advantages of our 8 ton battery locomotive controller:

The control part of our 8-ton battery electric locomotive is equipped with multiple protections which improves the safety factor of the locomotive during operation. The locomotive has compact and practical structure large starting torque and stable operation. It could applicated to mines or tunnels.

Video of our Battery locomotive:


Hot Tags: 8 ton battery locomotive, China, manufacturers, suppliers, factory, customized, price

Specifications

8ton Explosion-proof Battery Locomotive

Specifications

Adhesive / total weight (t)

8

Track gauge (mm)

600762 or 900

Traction (KN)

11.18 or 12.83

Max. Traction (KN)

19.62

Speed

6.2 7.5 or 7.8

Battery Voltage (V)

110132140 or144

Battery Capacity (Ah)

560

Power (KW)

11*2 or 15*2

Dimensions

Length(mm)

4430 4420

Width(mm)

10541356 or 1356

Height(mm)

1600

Wheelbase (mm)

1100 or 1150

Wheel diameter (mm)

680

Min Curve radius (m)

7

Controller

IGBT or AC Converter

Braking method

Pneumatic and Mechanical Brake
