22kw Electric Scraper Rake Winch

The Electric Scraper winch is composed of a reducer a drum a control mechanism a wire rope guide and other components and a motor. It is mainly used for ore handling and filling in me<x>tal mines and other mine pits or in the open air. It is used for

Send Inquiry →
CJY10 Ton Underground Mining Trolley Locomotive

The Electric Scraper winch is composed of a reducer a drum a control mechanism a wire rope guide and other components and a motor. It is mainly used for ore handling and filling in me

tal mines and other mine pits or in the open air.

Se utiliza para rastrillar en pendientes con un nivel o inclinación no mayor a 44°.

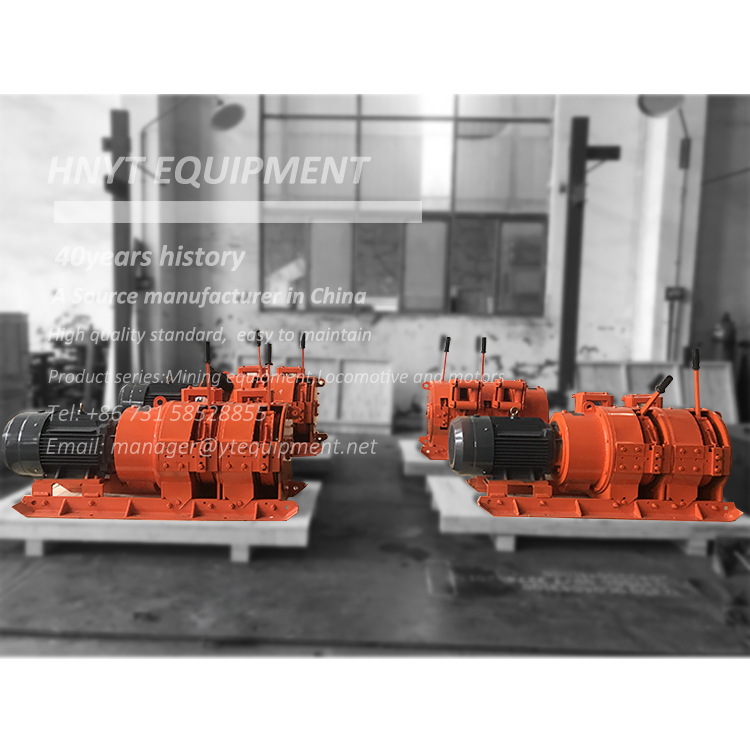

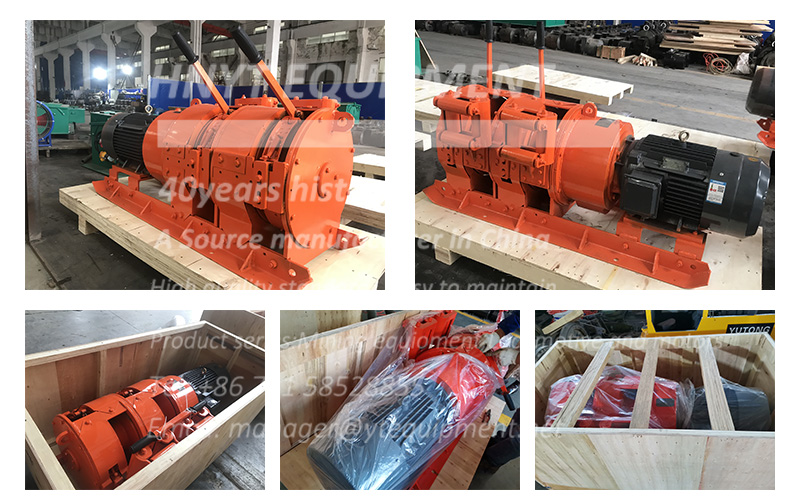

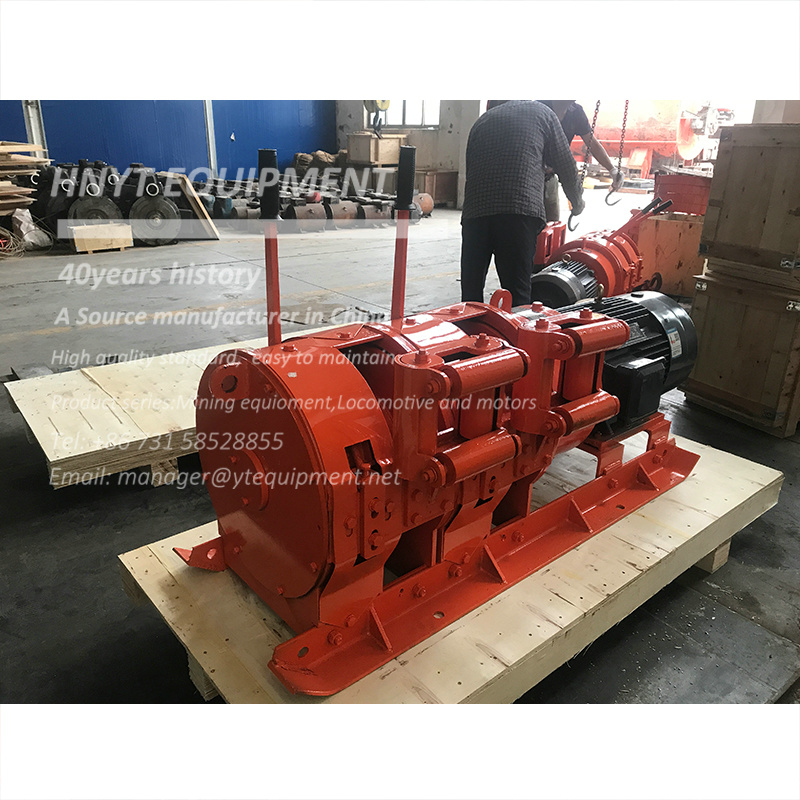

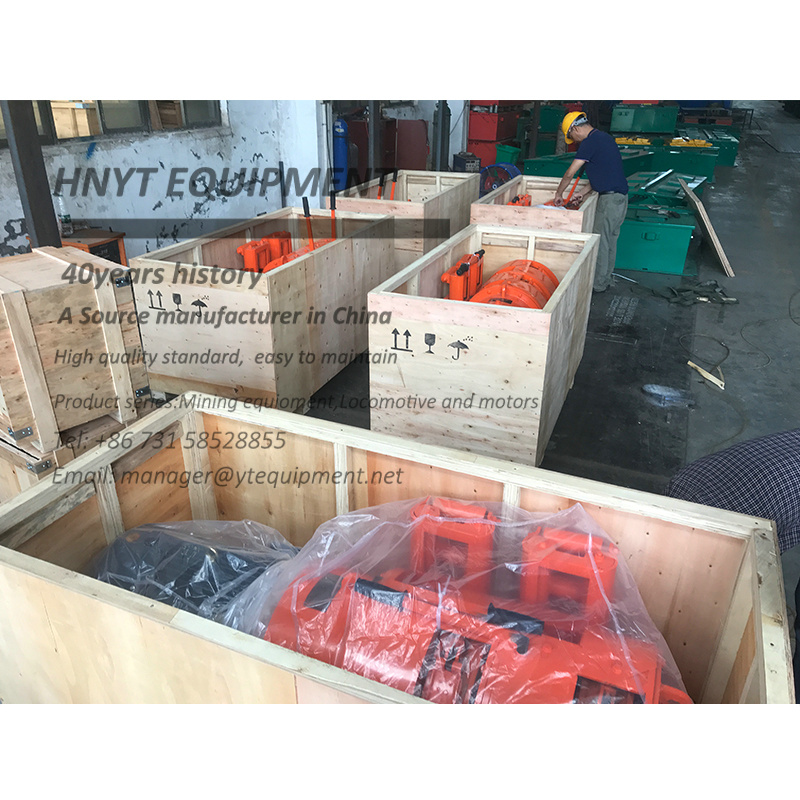

Below are the 5 units Winch with 440V voltage designed for our South America clients.

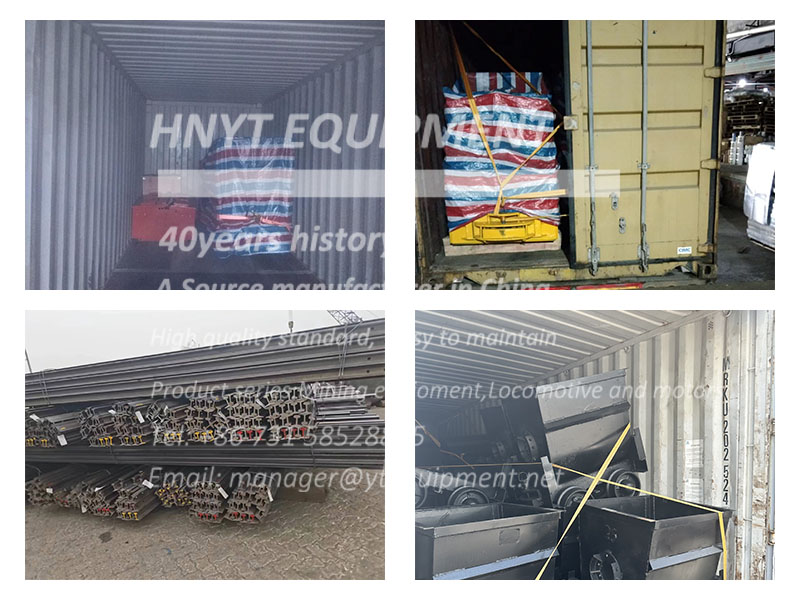

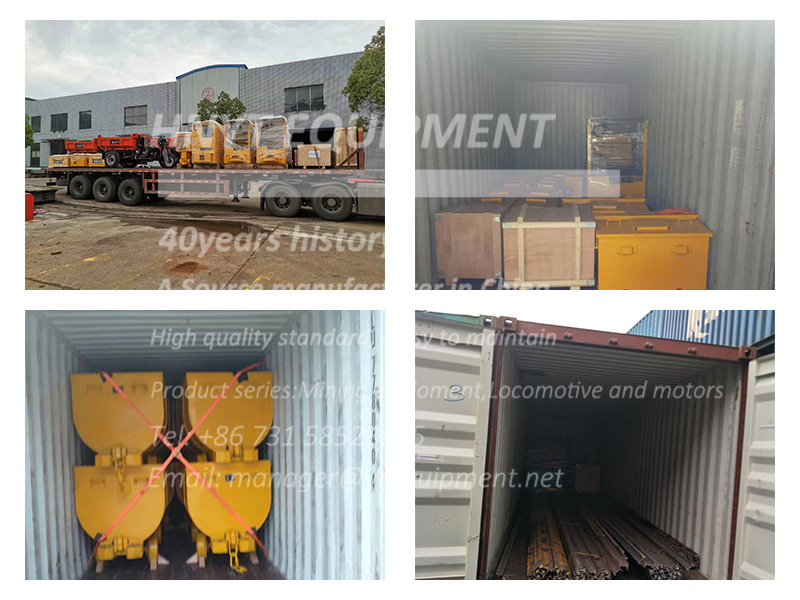

shipment and site 13.jpg

shipment and site 12.jpg



Hot Tags: mining electric locomotive  |   traction motor  |   electric rake winch  |   explosion-proof electric locomotive  |   accumulator locomotive  |   pneumatic rock shovel  |   battery electric locomotive  |

←No Information

7.5kw electric raking winch for underground mining→

Related Product
Model 2JPB-7.5 2JPB-15 2JPB-22 2JPB-30
2JP-7.5 2JP-15 2JP-22 2JP-30
Average pulling force of main wire rope KN 8 14 20 27.5
Wire rope
speed		 Main wire rope    m/s 1.0 1.10 1.20 1.20
Sub wire rope    m/s 1.0 1.50 1.60 1.60
Average        m/s 1.0 1.3 1.4 1.4
Motor Model YBK3-132M-4 YBK3-160L-4 YBK3-180L-4 YBK3-200L-4
Y132M-4 Y160L-4 Y180L-4 Y200L-4
Power        kW 7.5 15 22 30
Main drum Rope capacity       m 45 80 80 70
Drum dia   mm 205 220 280 280
Drum width    mm 80 125 156 156
Main wire rope Dia        mm 10 12 14 16
Structure 6×19
Minimum breaking force  kN 55.8 80.4 109 143


22kw Electric Scraper Rake Winch(图1)
