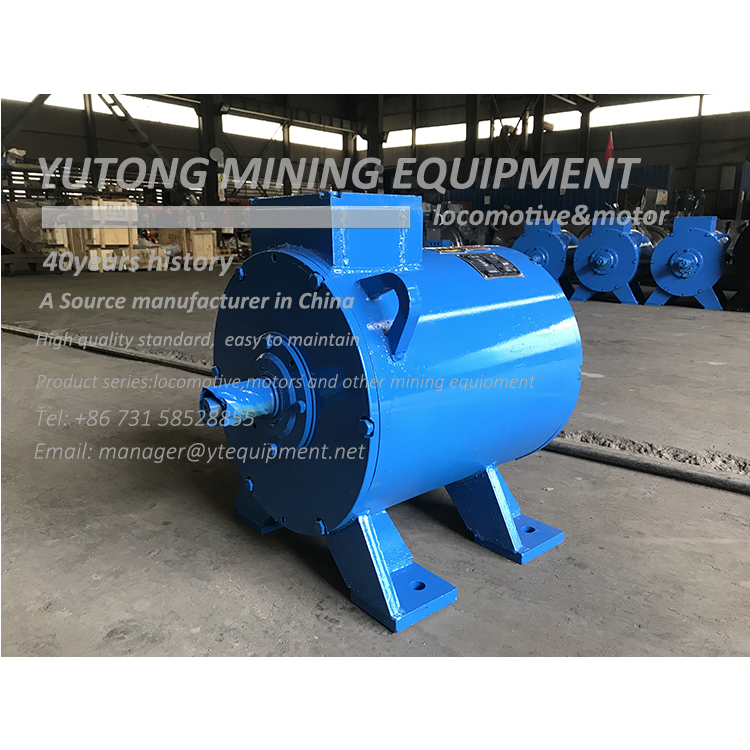

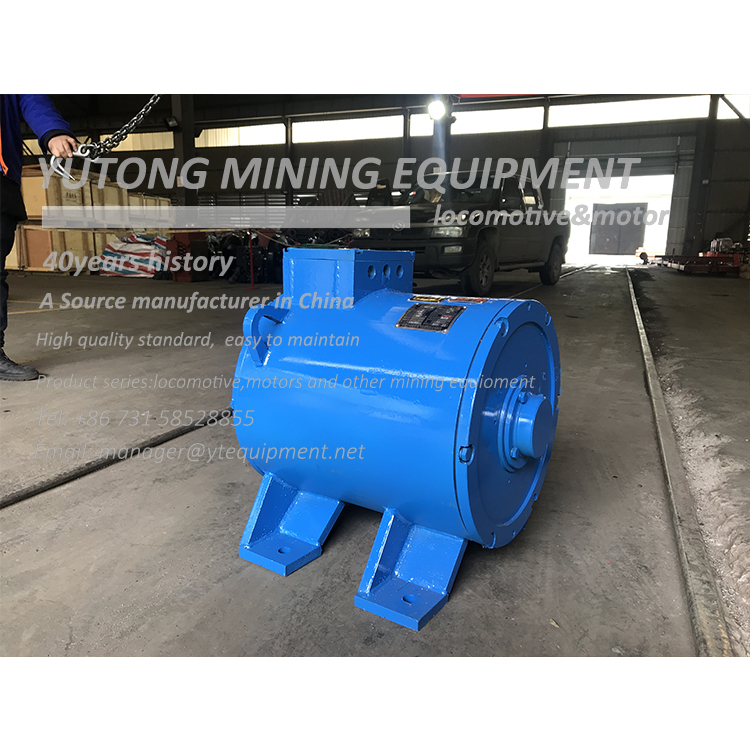

YBVF-15Q AC Motor For Mine 8 Ton Battery Locomotive

The motor is applied as the driving motor of explosion-proof battery locomotive of two-stage driving (twice of speed variation) of Model CTY8-6.7.9/140 and suitable for working in workplace with methane and coal dust explosive mixture. As a substitut

CJY10 Ton Underground Mining Trolley Locomotive

YBVF-15Q AC Motor is applied as the driving motor of explosion-proof battery locomotive of two-stage driving (twice of speed variation) of Model CTY8-6.7.9/140 and suitable for working in workplace with methane and coal dust explosive mixture.

The exterior of the motor should be regularly cleaned of pulverized coal and dust so that the motor can dissipate heat well.

Specification

YBVF-15Q AC motors Model YBVF-15Q
Working rating S2-60min
Power kw 15
Voltage v 100
Current A 114.9
Frequency Hz 54.1
Speed of rotation r/min 1062
Insulation grade F or H
Level of protection Ip54
Weight kg 310
