The motor is applied as the driving motor of explosion-proof battery locomotive of Model CTY12-6.7.9/192 and suitable for working in workplace with methane and coal dust explosive mixture. As a substitute of DC traction motor this model has features

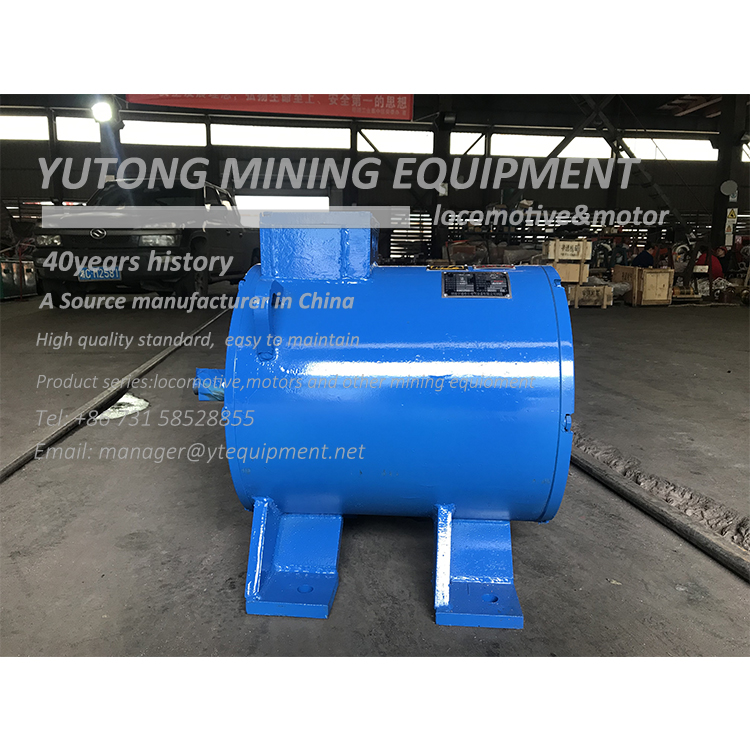

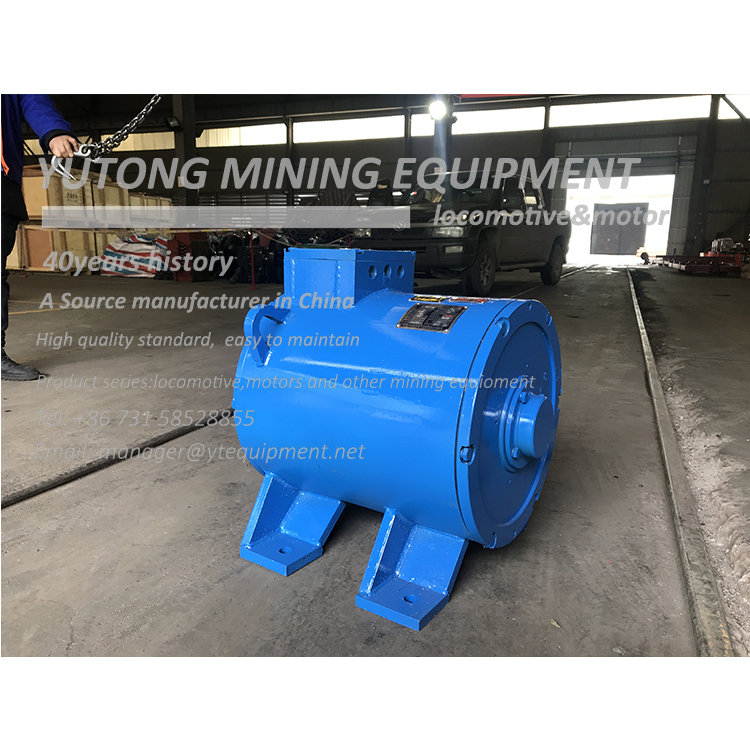

YBVF-22Q AC Motor is applied as the driving motor of explosion-proof battery locomotive of Model CTY12-6.7.9/192 and suitable for working in workplace with methane and coal dust explosive mixture.
Each explosion-proof surface of the motor is a key part of the motor and care must be taken to maintain it to prevent corrosion and damage. When the motor is repaired the flameproof surface must be coated with 204-1 replacement type anti-rust oil (painting is not allowed).
Specification
 |
Model | YBVF-22Q |
| Working rating | S2-60min | |
| Power kw | 22 | |
| Voltage v | 140 | |
| Current A | 127.2 | |
| Frequency Hz | 63 | |
| Speed of rotation r/min | 1243 | |
| Insulation grade | F or H | |
| Level of protection | Ip54 | |
| Weight kg | 355 |
