CJY10 Ton Underground Mining Trolley Locomotive

Cjy 10Ton trolley locomotive could be used in middle or big mine, it has the advantages of big traction, easy to operate.

Send Inquiry →

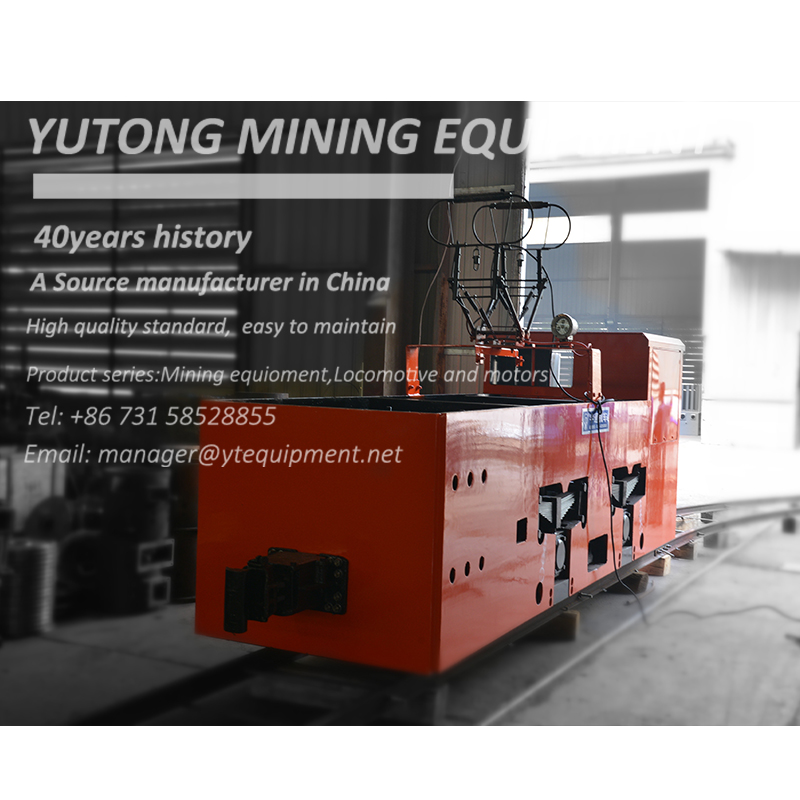

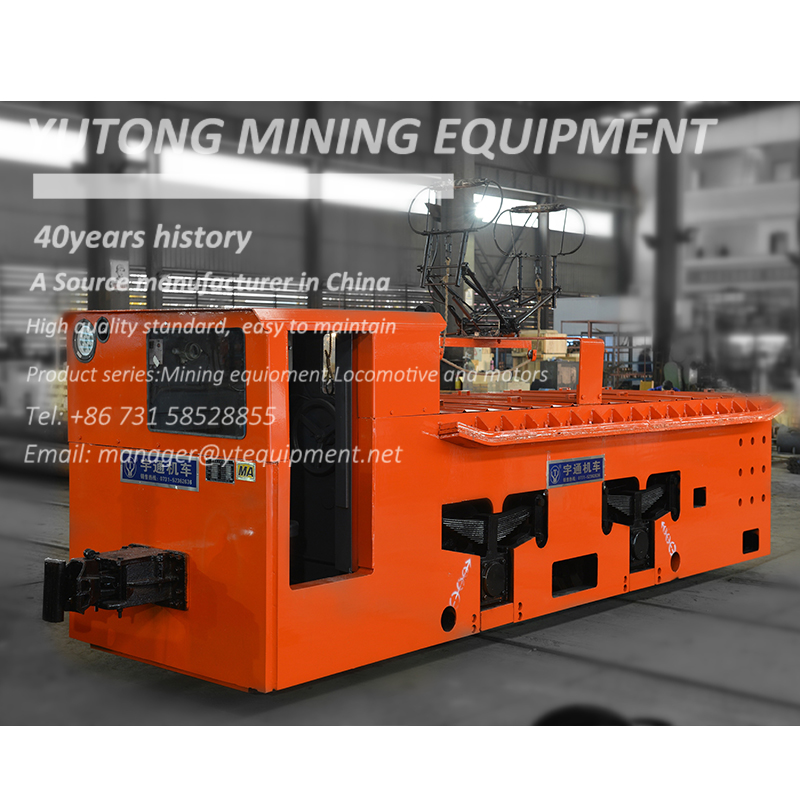

CJY10 Ton Underground Mining Trolley Locomotive
This 10ton trolley locomotive has four options: normal type thicken lateral plate type added sails type and two- motors type. The working rated voltages include 250V and 550V. Main features include: short wheel base and high stiffness of vehicle body. With application of new-type buffer the shockproof performance is good with big cushion angle.

Locomotive Avantage Please Click: Locomotive Advantages.

Operation Video


Hot Tags: CJY10 Ton Underground Mining Trolley Locomotive, China, manufacturers, suppliers, factory, customized, price

←1.5 Ton Underground Mining Trolley Locomotive

14 Ton Underground Mining Trolley Locomotive→

Related Products

10ton Trolley Locomotive

Model

CJY10/6、7、9G(B)(P)

Adhesive / total weight (t)

10t

Track gauge (mm)

600、762 or 900mm

Traction

13.05kN

18.93kN

Max. Traction (KN)

24.5kN

Speed

11km/h

Direct Voltage

250V

550V

motor power

24Kw×2

30kW×2

Dimensions

Length

4550mm

Width

1050、1212 or 1350mm

Height

1600mm

Wheel base

1100、1220mm

Wheel Diameter

Φ680mm

Operational height of current-controller

1800~2200mm、2000~2400mm

Min Curve radius (m)

7、10m

Controller

Resistance or IGBT

Braking method

Mechanical Brake
