The 14 tonne coil locomotive has the voltage of 250v or 550v. It could pull about 140 tonne ores, it suitable for the big mines with no gas exist.
Product Features and Application

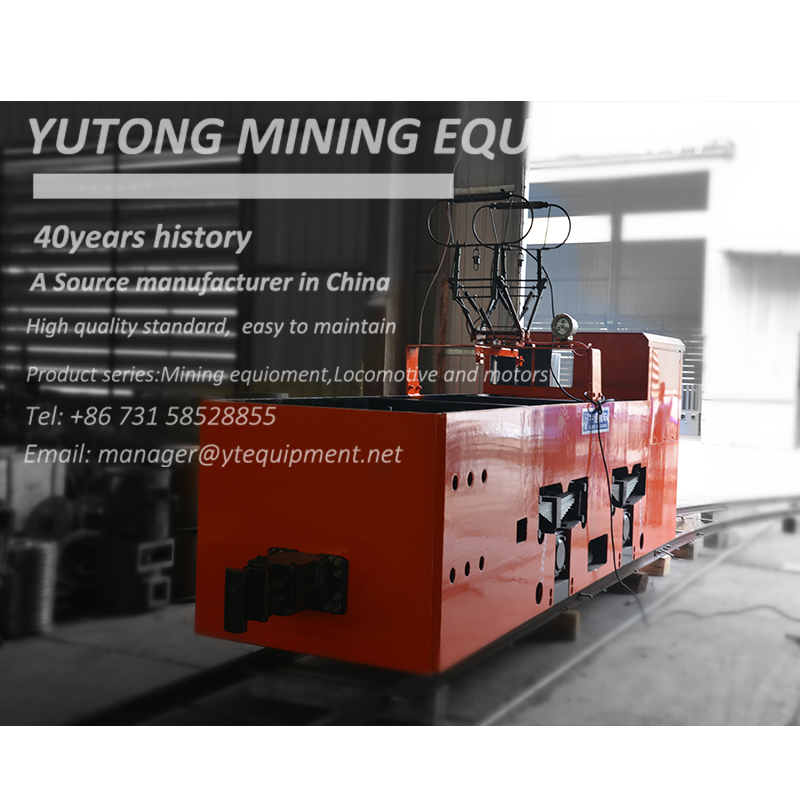

This 14 tonne coil trolley locomotive is specially designed for big mines. The model has two options:
one for underground application and the other for outdoors service. Main features include: strong
traction force and carrying capacity and high speed.
|
14ton Trolley Locomomtive |
|||
|
Model |
CJY14/6、7、9G(B)(P) |
||
|
Adhesive / total weight (t) |
14t |
||
|
Track gauge (mm) |
600、762 or 900mm |
||
|
Traction |
26.68kN |
||
|
Max. Traction (KN) |
34.3kN |
||
|
Speed |
12.87km/h |
||
|
Direct Voltage |
250V |
550V |
|
|
motor power |
52kW×2 |
||
|
Dimensions |
Length |
4800mm |
|
|
Width |
1060、1222 or 1360mm |
||
|
Height |
1700mm |
||
|
Wheel Base |
1700mm |
||
|
Wheel Diameter |
Φ760mm |
||
|
Operational height of current-controller |
2000～3200mm |
||
|
Min Curve radius (m) |
12m |
||
|
Controller |
Resistance or IGBT |
||
|
Braking method |
Air Mechanical Brake |
||
