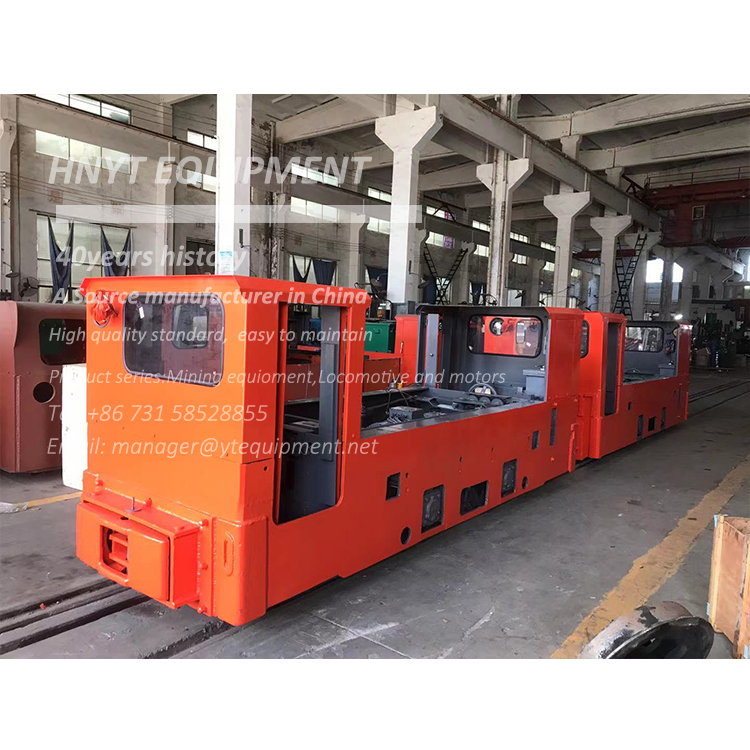

8 Ton Battery Electric Locomotive

CJY10 Ton Underground Mining Trolley Locomotive

We could customized electric battery locomotive according different mine environment with competitive price. We specialized in mining locomotive for many years covering the market in South America and Europe in these years.

This 8 Ton Battery Electric Locomotive is used leac-acid or lithium battery as its power supply it could applied in coal mines metal mines or tunnel. The main role of this locomotive is to pull the ores from the underground.

Product Specification table and overviews


Model CTY(L)8/679G
Dead-weight 8t
Track gague 600762 or 900mm
Tracktion force 11.18kN 12.83kN
Speed 6.2km/h 7.5 km/h 7.8 km/h
Max traction 19.62kN
Battery device Voltage 110V 132V 140V 144V
Capacity 440Ah
Motor power 11kW×2 15kW×2
dimensions Lenght 4430mm 4250mm
Width 105012121350mm
Height 1600mm 1600mm
Wheel base 1100mm 1150mm
Wheel diameter Φ680mm Φ680mm Φ600mm
Min turn radius 7m
Controlling way Resistence or IGBT or AC Converter
Brake way Mechnical brake or air brake

Shipment and one site details

8 Ton Battery Electric Locomotive(图2)

8 Ton Battery Electric Locomotive(图3)
