6 Ton Battery Electric Locomotive

CJY10 Ton Underground Mining Trolley Locomotive

We offers electric locomotive with battery as supply, which is durable and easy to maintenance. Our factory has more than 20 years of production and maintenance, got good feedback from South America and Europe.

Battery-powered locomotives are designed for horizontal rail transport especially in mines and enclosed spaces. They are also intended for use in potentially explosive environment with coal dust and methane in volume up to 1.5 %. Speed and engine torque is controlled by the frequency converter. Trolleys and axle bus-bars/pantographs are fitted with carbon or aluminum strips. Engine and brake control is proportional by means of one lever in its entire range of travel speed.

Explosion-proof special type accumulator industrial and mining electric locomotive is suitable for the main transport roadway of high gas mine as the power source of hauling mining car and rickshaw transport equipment.

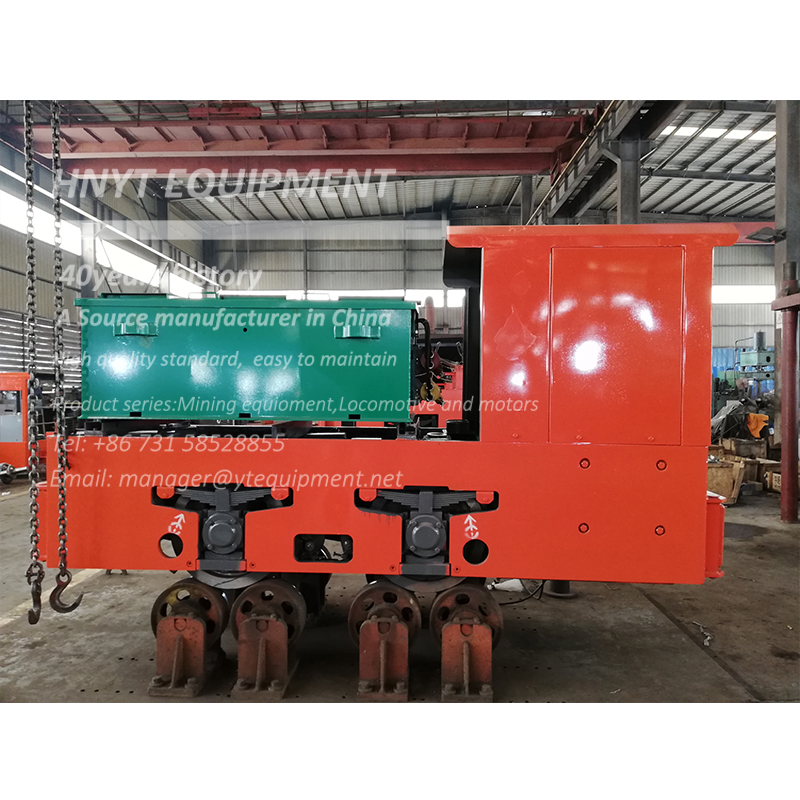

6 Ton Battery Electric Locomotive(图1) Model CTY6/679G(B)
Total-weight 6t
Track gague 500600762 or 900mm
Tracktion force 7.06kN
Max traction 12.26kN
Speed 7km/h
Battery device Voltage 90V
Capacity 385Ah
Motor power 7.5 kW×2
dimensions Lenght 3170mm
Width 9201082 or 1220mm
Height 1550mm
Wheel base 850mm
Wheel diameter Φ520mm
Min turn radius 6m
Controlling way Resistence or IGBT
Brake way Mechnical brake or hydraulic



Shipment and one site details

5t battery locomotive 2.jpg

shipment and site 11.jpg
