6 Ton Battery Powered Mine Locomotive

6 Ton Battery Locomotive is specifically designed for South AmericaAdhesive / total weight (t): 6<br>Traction (KN): 7.06<br>Max. Traction (KN): 12.26<br>Battery Voltage (V): 90

CJY10 Ton Underground Mining Trolley Locomotive

Battery Powered Mine Locomotive is an important transportation tool for long-distance transportation of mine horizontal roadway and plays an important role in coal transportation and auxiliary transportation in mine. It has the advantages of low cost large transportation capacity convenient operation and use and non-working reserve system.



The mine electric locomotive consists of mechanical part and electrical part. The mechanical part includes: frame wheelset bearing box spring bracket braking device sanding device connecting buffer device etc.



The electrical part includes: DC series motor controller resistance box pantograph air automatic switch or flameproof plug battery (battery electric locomotive).

Locomotive Avantage Please Click: Locomotive Advantages.


Operation video



Shipment and one site details

5t battery locomotive 2.jpg

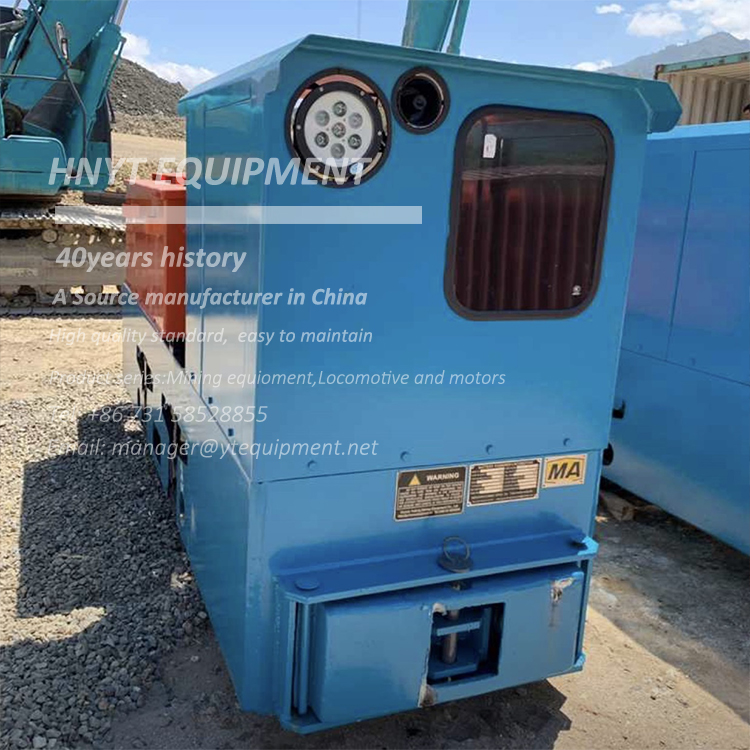

6 Ton Battery Powered Mine Locomotive(图1) Model CTY6/679G(B)
Total-weight 6t
Track gague 500600762 or 900mm
Tracktion force 7.06kN
Max traction 12.26kN
Speed 7km/h
Battery device Voltage 90V
Capacity 385Ah
Motor power 7.5 kW×2
dimensions Lenght 3170mm
Width 9201082 or 1220mm
Height 1550mm
Wheel base 850mm
Wheel diameter &Phi;520mm
Min turn radius 6m
Controlling way Resistence or IGBT
Brake way Mechnical brake or hydraulic



5t battery locomotive 2.jpg

shipment and site 11.jpg
