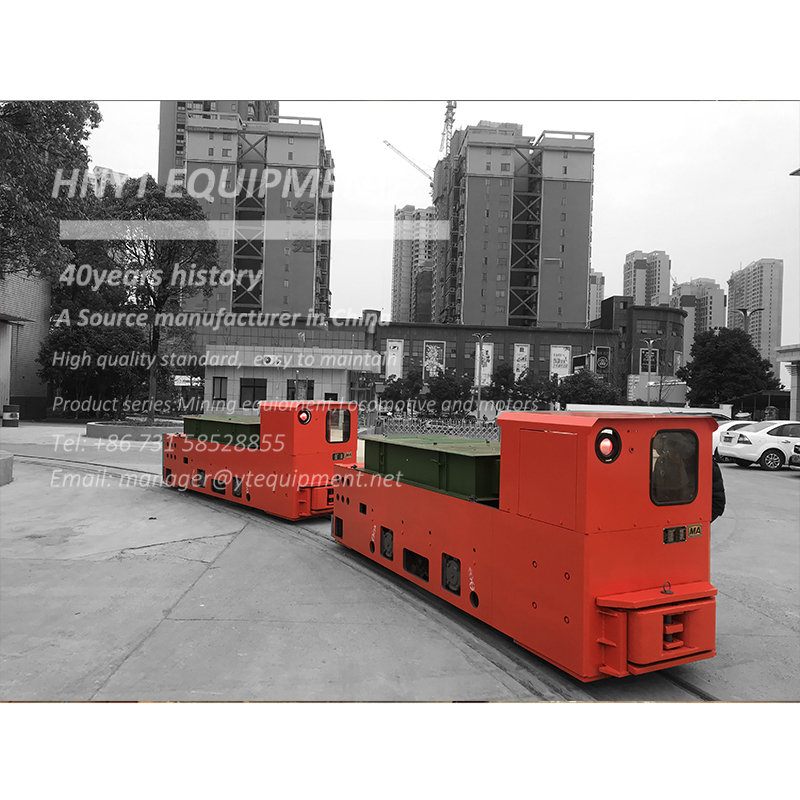

8 Ton Battery Powered Mine Locomotive

We could offer mine locomotive which is using battery as supply with CE certification. Covering the market in South America and Europe, hoping to start business with you soon.

CJY10 Ton Underground Mining Trolley Locomotive

Introduction of Battery Powered Mine Locomotive

Battery Powered Mine Locomotive has the characteristics of simple structure and reliable operation. The above 8T locomotives can be derived from the double-headed driver's cab according to user requirements, and IGBT chopper speed control and variable frequency speed control systems can be used. The locomotive controlled by the IGBT chopper speed regulation division has a strong main circuit shutdown capability. The trigger circuit uses integrated voltage regulators, integrated timers, and combined components, so that the entire circuit has fewer components, convenient installation, and easy debugging. Reliable. Industrial experiments have proven that the device has a simple circuit and no runaway, which greatly reduces the maintenance workload. Using this device, the locomotive starts smoothly, has uniform speed regulation, flexible operation, strong overload capacity, saves about 30% of electrical energy, prolongs the service life of the battery, and is welcomed by drivers and maintenance personnel


Locomotive Avantage Please ClickLocomotive Advantages.

Video

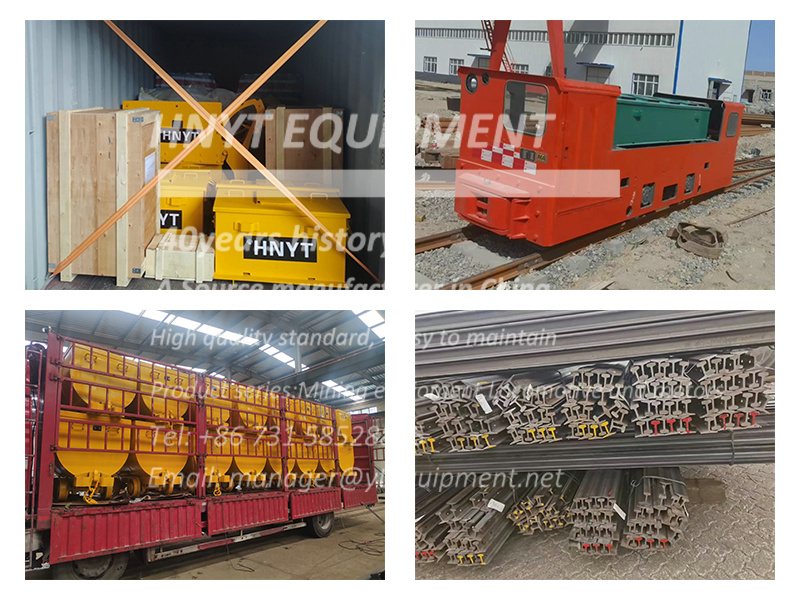

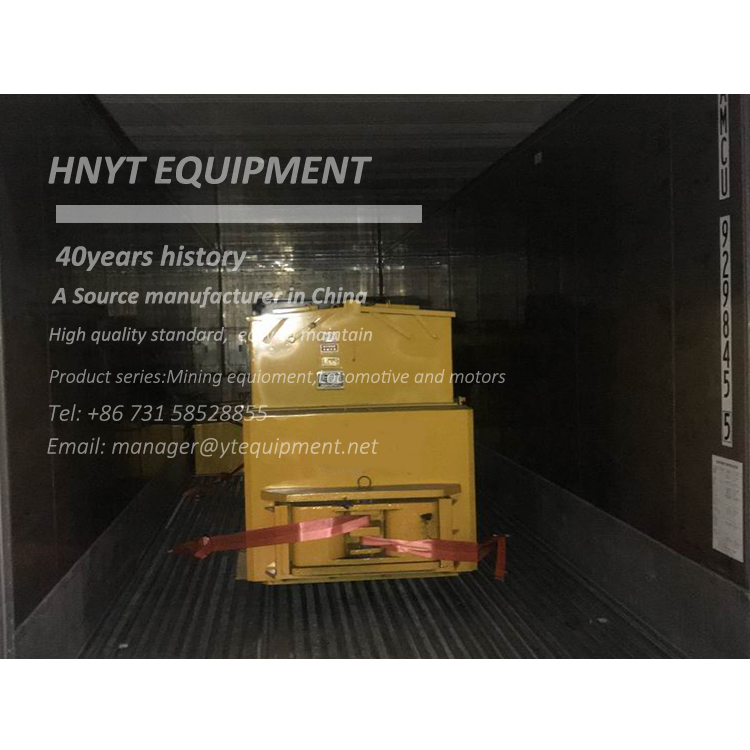

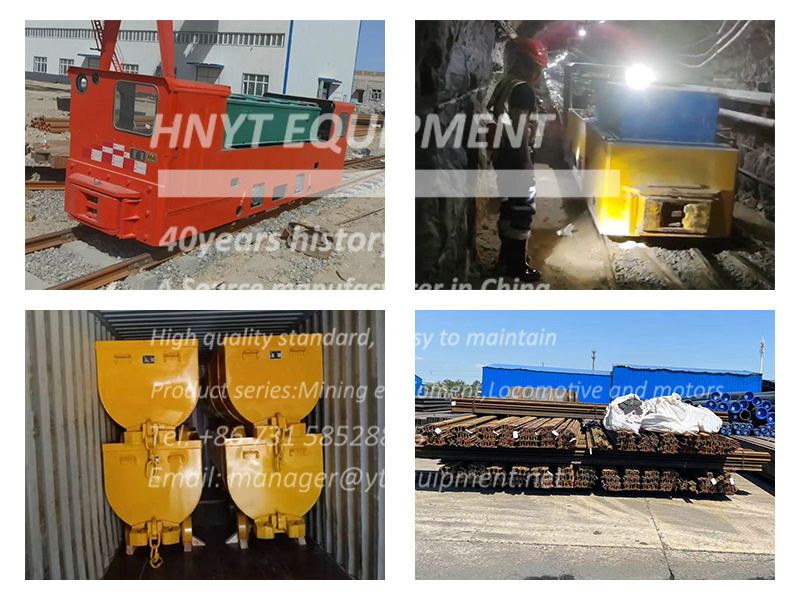

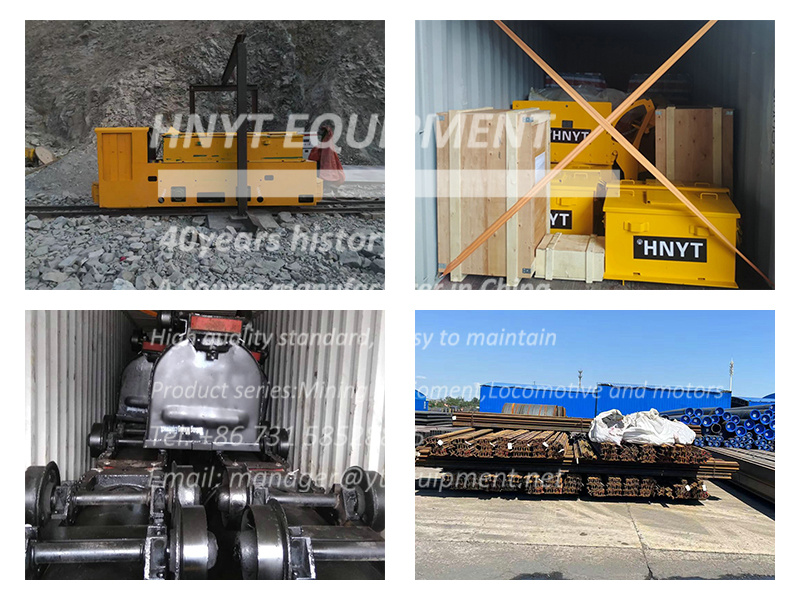

Shipment and one site details

8o12t battery locomotive 2.jpg






Technical Specification

Model CTY(L)8/6、7、9G
Dead-weight 8t
Track gague 600、762 or 900mm
Tracktion force 11.18kN 12.83kN
Speed 6.2km/h 7.5 km/h 7.8 km/h
Max traction 19.62kN
Battery device Voltage 110V 132V 140V 144V
Capacity 440Ah
Motor power 11kW×2 15kW×2
dimensions Lenght 4430mm 4250mm
Width 1050、1212 or 1350mm
Height 1600mm 1600mm
Wheel base 1100mm 1150mm
Wheel diameter Φ680mm Φ680mm Φ600mm
Min turn radius 7m
Controlling way Resistence or IGBT or AC Converter
Brake way Mechnical brake or air brake

8o12t battery locomotive 1.jpg

shipment and site 13.jpg
