12 Ton Underground Mining Battery Locomotive

CJY10 Ton Underground Mining Trolley Locomotive

Product introduction

Battery locomotive is equipped with battery pack as energry with no limited of distance.The battery pack need charging

by professional charging equipment accordingly to the instruction. They can work on slopes of rail lines up to 35‰ , with

track gauge from 500 to 1060 mm, at ambient temperatures from -20°C to +40°C.

This 12 Ton Underground Mining Battery Locomotive could be divided into 3 types:  Normal type, Security type and Explosion proof type.

Traction pull force will be 90-100 ton ores



Shipment and one site details

8o12t battery locomotive 2.jpg









Model CTY12/679G(B)
Weight 12t
Track gauge 600762 or 900mm
Traction force 16.48kN
Max traction force 29.43kN
Speed 8.7km/h
Battery device voltage 192V
capacity 560Ah
Motor power 22Kw x 230Kw x 2
Dimensions Length 5100mm
width 10501212 or 1350mm
Height 1800mm
Wheel base 1220mm
Wheel diameter Φ680mm
Min turn radius 10m
Controller method ResistanceIGBT or frequency
Brake method MechnicalElectricAc frequency

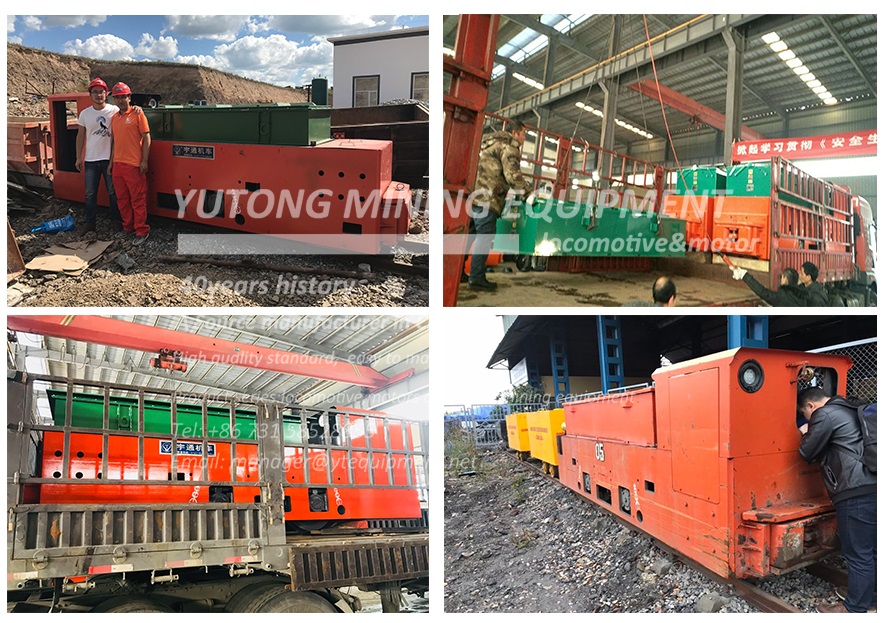

Shipment and one site details

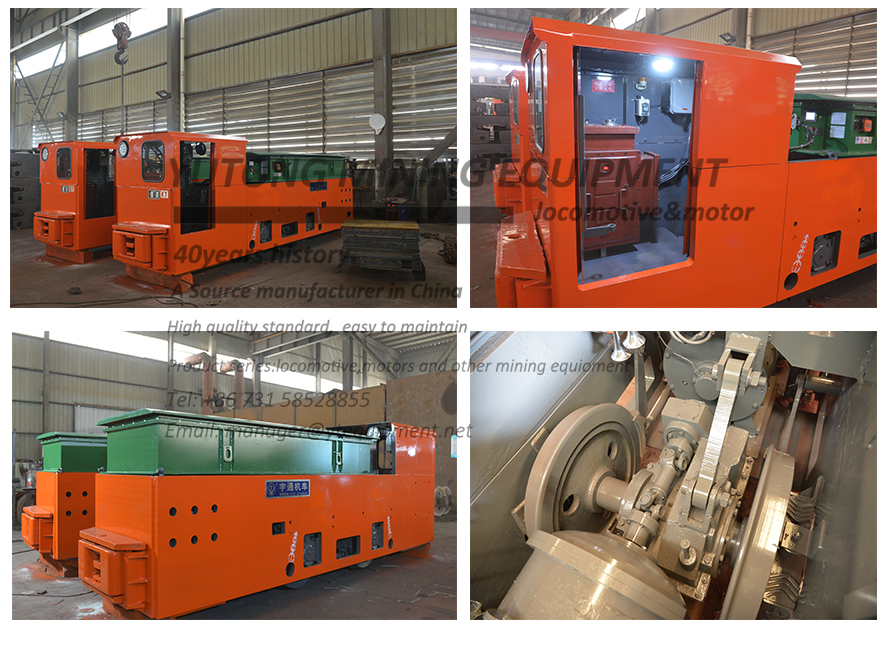

12 Ton Underground Mining Battery Locomotive(图1)
12 Ton Underground Mining Battery Locomotive(图2)
