ZWY120 Crawler Scraper Mucking Loader

The ZWY120 crawler scraper mucking loader with heavy-duty tracks is designed for increased durability and stability in harsh underground mining conditions. The heavy-duty tracks provide better traction and reduce the risk of track derailment. The tracks also feature a wider footprint, providing increased stability on uneven surfaces.

CJY10 Ton Underground Mining Trolley Locomotive

ZWY120 Crawler Scraper Mucking Loader

The ZWY120 crawler scraper mucking loader with heavy-duty tracks is designed for increased durability and stability in harsh underground mining conditions. The heavy-duty tracks provide better traction and reduce the risk of track derailment. The tracks also feature a wider footprint, providing increased stability on uneven surfaces.

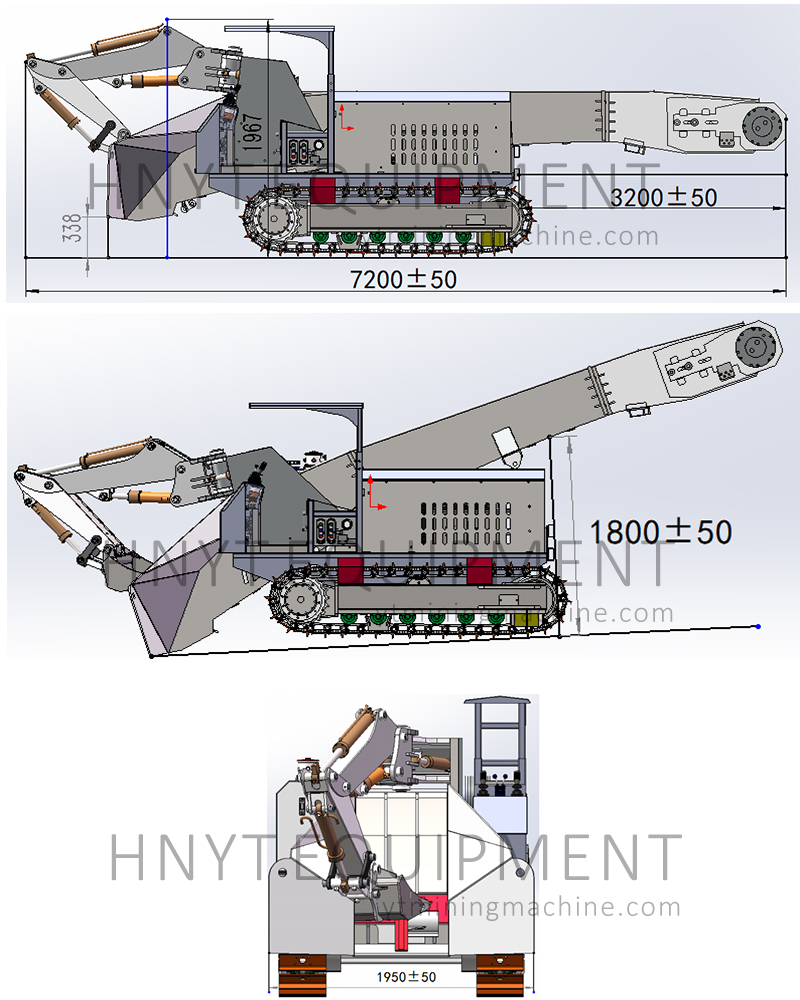

Outline Drawing of crawler mucking loader

zwy120 cralwer chain muck loader标准型.jpg


Crawler scraper mucking machine(图1)

Crawler scraper mucking machine(图2)

Crawler scraper mucking machine(图3)

Crawler scraper mucking machine(图4)


Crawler scraper mucking machine(图5)

Crawler scraper mucking machine(图6)


Crawler scraper mucking machine(图7)


Crawler scraper mucking machine(图8)

Crawler scraper mucking machine(图9)

Crawler scraper mucking machine(图10)




Hot Tags: pneumatic Rock loader  |   mining locomotive  |   mucking loader  |   crawler mucking loader  |
Crawler scraper mucking loader parameter table
IndexUnitZWY135-80ZWY135-120
Loading capacityM³/H≤80≤120
Total weightKG6800±2006900±200
WheelbaseMM//
GaugeMM//
Minimum turning radiusR≤3≤3
Minimum ground clearanceMM300330
Digging widthMM41004600
Digging depthMM550650
Digging heightMM29003300
Digging distanceMM20102430
Unloading height(customizable)MM17001800
Unloading distance(customizable)MM19003200
Gradeability°±25±25
Conveyor belt speedM/S0.540.54
Total motor powerKW30(Double 15)30(Double 15)
Main motor powerKW30(Double 15)30(Double 15)
Electric drum powerKW//
Fan powerKW1.52
Walking speedKM/H2.1±0.052.1±0.05
Rated operating pressureMpa1818
DimensionsLMM6750±507500±50
WMM1820±501950±50
HMM2060±502200±50
Adapation dimensionM2.6*2.62.8*2.8
