The ZWY50 wheel belt mucking loader is a compact and powerful machine that is ideal for small and medium-sized underground mining operations. It features a robust design, a powerful engine, and a large bucket capacity for its size, making it capable of handling even the most challenging tasks in confined spaces.

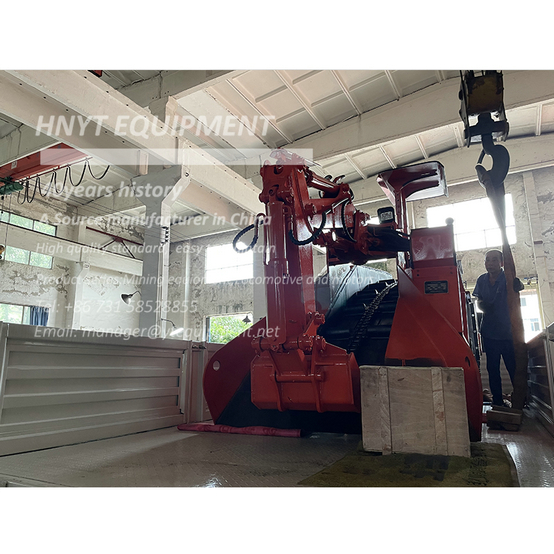

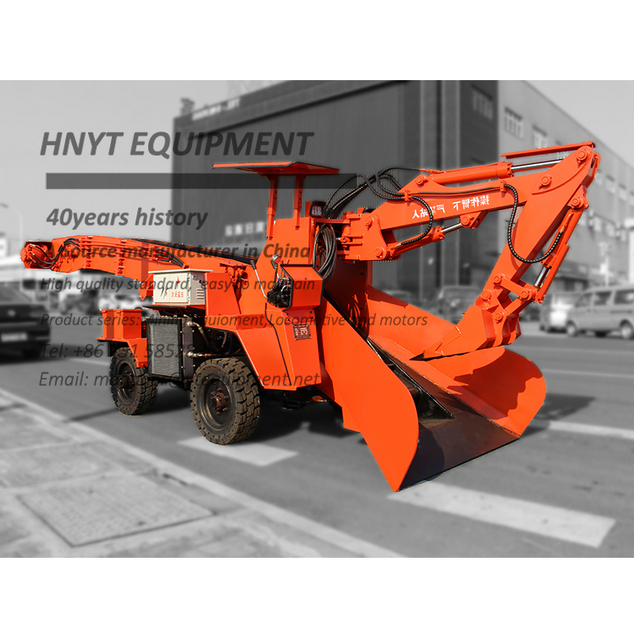

ZWY50 Wheel Belt Mucking Loader

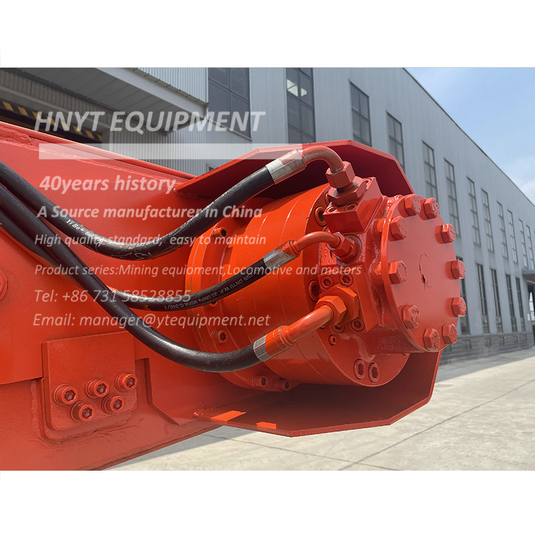

The ZWY50 wheel belt mucking loader is a compact and powerful machine that is ideal for small and medium-sized underground mining operations. It features a robust design, a powerful engine, and a large bucket capacity for its size, making it capable of handling even the most challenging tasks in confined spaces.

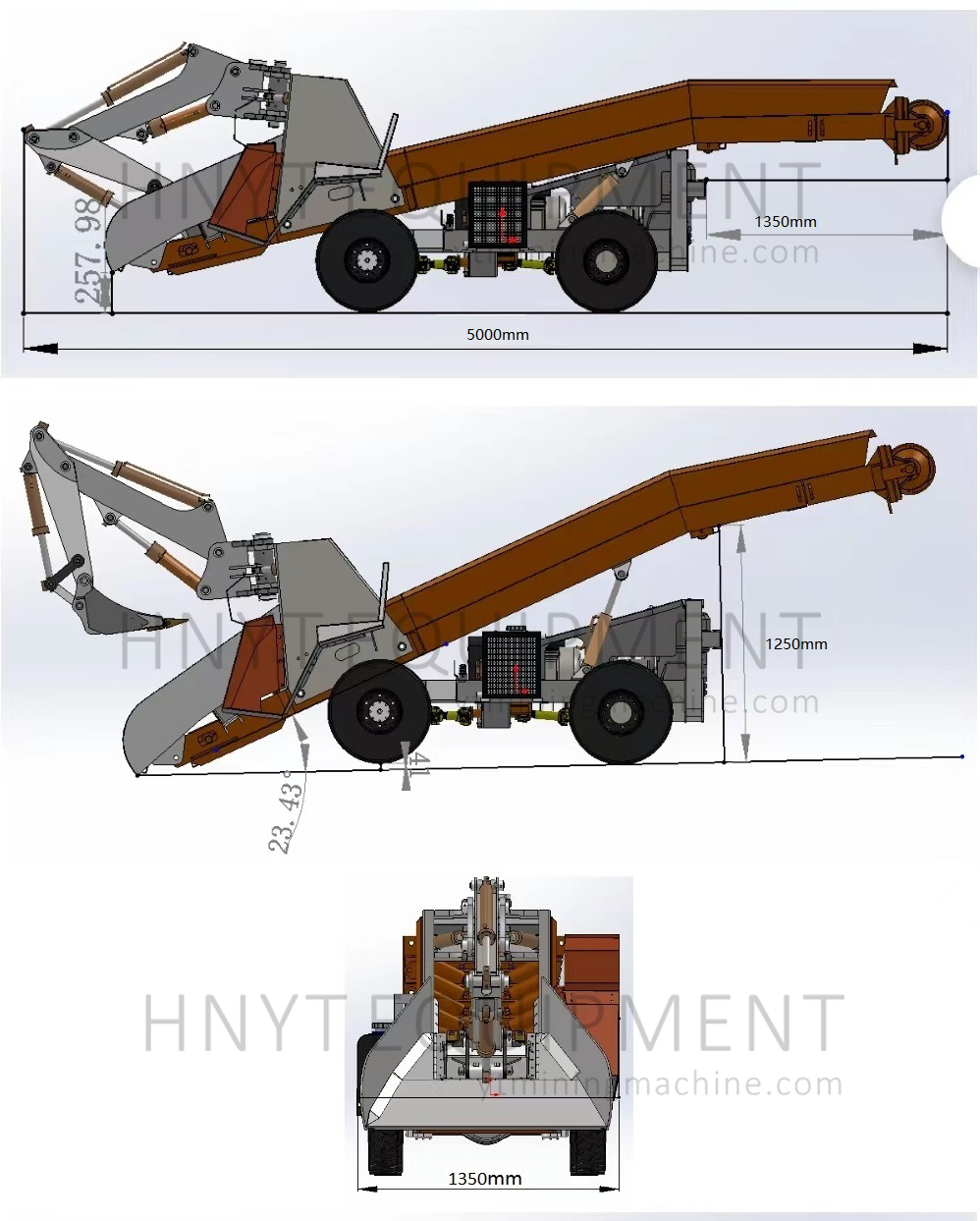

Outline Drawing of crawler mucking loader
| Wheel belt mucking loader parameter table | |||||||
| Index | Unit | ZWY-1.2-50 | ZWY-1.3-60 | ZWY-1.7-80 | ZWY-1.8-120 | ZWY-2.2-160 | |
| Loading capacity | M3/H | ≤50 | ≤60 | ≤80 | ≤120 | ≤160 | |
| Total weight | KG | 2800±200 | 2950±200 | 4200±200 | 4400±200 | 6000±200 | |
| Wheelbase | MM | 1250 | 1480 | 1600 | 1780 | 2700 | |
| Gauge | MM | 1120 | 1180/1130 | 1460/1460 | 1640/1480 | 1740/1720 | |
| Minimum turning radius | R | ≤4 | ≤4 | ≤5 | ≤6 | ≤7 | |
| Minimum ground clearance | MM | 180 | 180 | 190 | 190 | 190 | |
| Digging width | MM | 2200 | 2800 | 3200 | 3500 | 4200 | |
| Digging depth | MM | 260 | 350 | 450 | 540 | 700 | |
| Digging height | MM | 1750 | 2500 | 2900 | 3100 | 4200 | |
| Digging distance | MM | 1600 | 1600 | 1650 | 1750 | 2350 | |
| Unloading height(customizable) | MM | 1250 | 1350 | 1700 | 1800 | 2400 | |
| Unloading distance(customizable) | MM | 1350 | 1500 | 1900 | 3000 | 4000 | |
| Gradeability | ° | ±6(Hard ground) | ±6(Hard ground) | ±6(Hard ground) | ±6(Hard ground) | ±6(Hard ground) | |
| Conveyor belt speed | M/S | 0.8/0.63 | 0.8/0.63 | 0.8/0.63 | 0.8/0.63 | 0.8/0.63 | |
| Total motor power | KW | 11+5.5 | 11+5.5 | 15+5.5 | 18.5 | 22 | |
| Main motor power | KW | 11 | 11 | 15 | 18.5 | 22 | |
| Electric drum power | KW | 5.5 | 5.5 | 5.5 | / | / | |
| Fan power | KW | 0.2 | 0.2 | 0.2 | 0.75 | 0.75+1 | |
| Walking speed | KM/H | 3 | 3 | High 5.5,low 3 | High 5.5,low 3 | High 5.5,low 3 | |
| Rated operating pressure | Mpa | 15 | 15 | 15 | 15 | 15 | |
| Dimensions | L | MM | 5000±50 | 5600±50 | 6600±50 | 7200±50 | 11500±50 |
| W | MM | 1350±50 | 1400±50 | 1750±50 | 1850±50 | 2200±50 | |
| H | MM | 1500±50 | 1650±50 | 1800±50 | 1900±50 | 2600±50 | |
| Adapation dimension | M | 1.8*1.8 | 2.0*2.0 | 2.4*2.4 | 2.8*2.8 | 4.0*4.0 | |
