10 Ton Trolley Locomotive

The 10 ton trolley locomotive has 2 type voltage one is 250V and the other is 550V. The traction of pull is about 100 ton ores.

CJY10 Ton Underground Mining Trolley Locomotive

Product introduction

The 10 ton trolley locomotive has four options: normal type thicken lateral plate type added sails type and two- motors type.

The working rated voltages include 250V and 550V. It could pull about 100 ton ores. It has the advantages of short wheel base

and forceful traction. Suitable for middle or big mines as a main transporation vehicle.

Factory Video

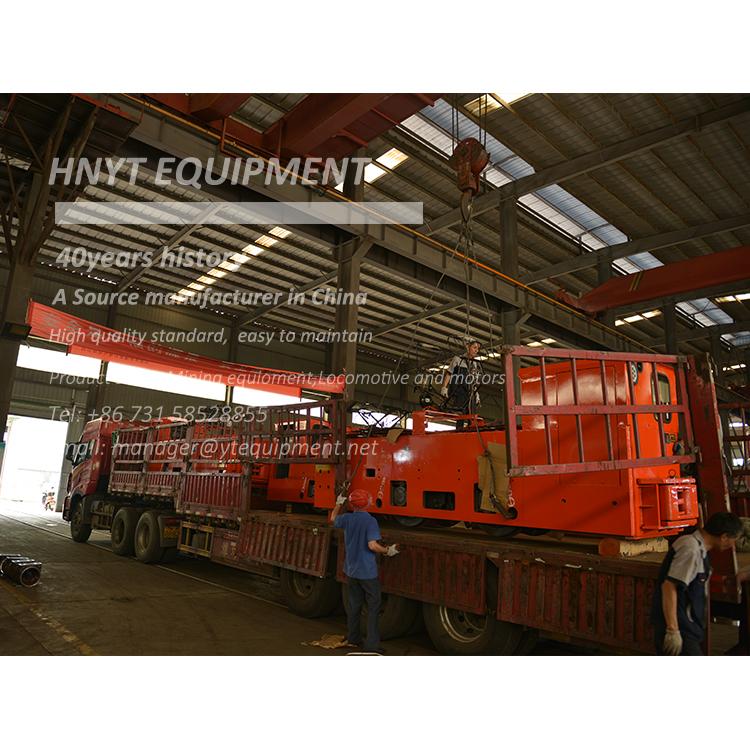

Shipment and one site details

7o10t trolley locomotive 1.jpg







No Information

6 Ton Trolley Locomotive



10ton Trolley Locomotive

Model

CJY10/6、7、9G(B)(P)

Adhesive / total weight

10t

Track gauge

600、762 or 900mm

Traction

13.05kN

18.93kN

Max. Traction

24.5kN

Speed

11km/h

Direct Voltage

250V

550V

motor power

24Kw×2

30kW×2

Dimensions

Length

4550mm

Width

1050、1212 or 1350mm

Height

1600mm

Wheel base

1100、1220mm

Wheel Diameter

Φ680mm

Operational height of current-controller

1800~2200mm、2000~2400mm

Min Curve radius

7、10m

Controller

Resistance or IGBT

Braking method

Mechanical Brake
