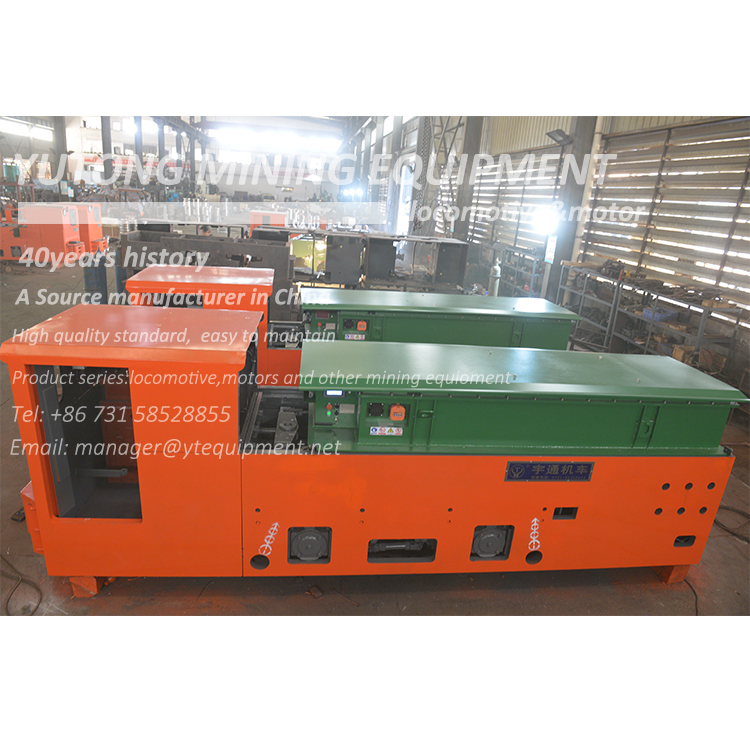

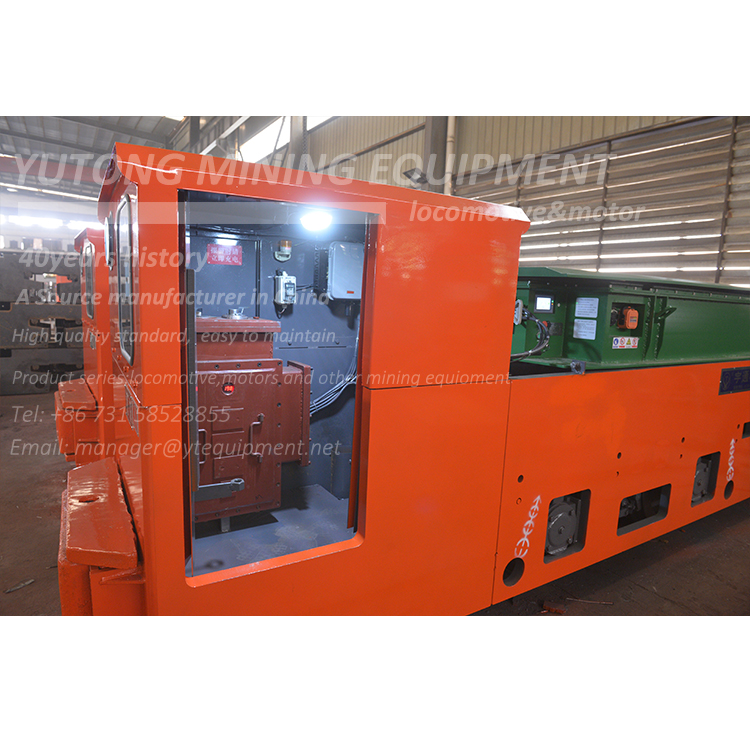

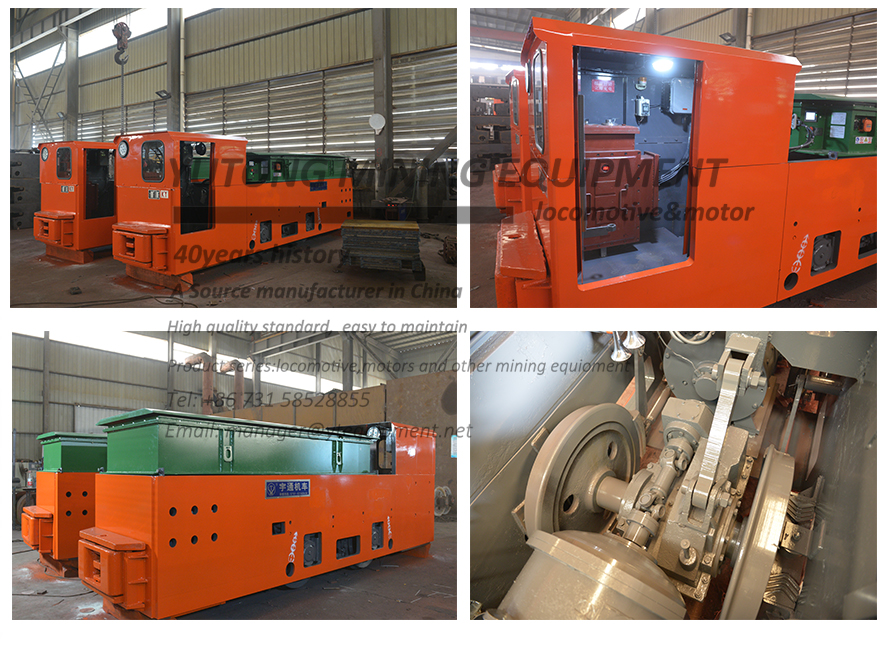

12 Ton Lithium battery Locomotive

The 12 Ton Lithium Battery locomotive is applied of speed control of IGBT or AC frequency controller. It usually be used in big minings or tunels for transporation with the advtanges of big traction force loading capacityenergy efficiency and short br

Send Inquiry →
CJY10 Ton Underground Mining Trolley Locomotive
1.Product Introduction
The 12 Ton Lithium Battery locomotive is applied of speed control of IGBT or AC frequency controller. It usually be used in big minings or tunels for transporation with the advtanges of big traction force loading capacityenergy efficiency and short brake distance.
The loading capacity is about 80-100 Ton ores when transporating.

2.Questions before inquiry
Track gauge: 600762900 or others
Speed control method: resistance IGBT Or frequency controller
Brake way: mechnical or air brake

Locomotive Avantage Please Click: Locomotive Advantages.



Hot Tags: 12 Ton Lithium battery Locomotive, China, manufacturers, suppliers, factory, customized, price

←10 Ton Lithium Battery Locomotive

2.5 Ton Explosion-proof Lithium Battery Locomotive→

Related Products
Model CTY12/6、7、9G(B)
Weight 12t
Track gauge 600、762 or 900mm
Traction force 16.48kN
Max traction force 29.43kN
Speed 8.7km/h
Battery device voltage 192V
capacity 560Ah

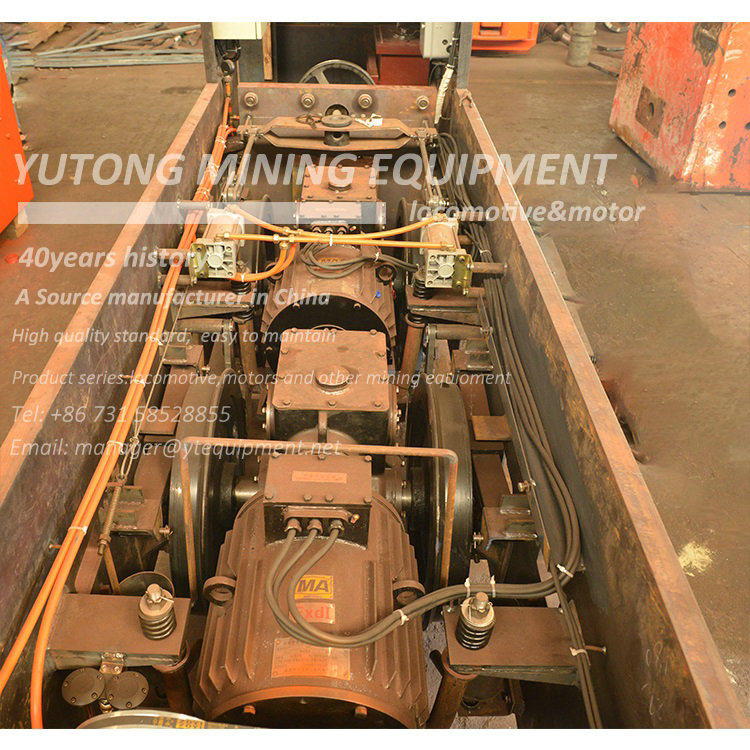

Motor power 22Kw x 2、30Kw x 2
Dimensions Length 5100mm
width 1050、1212 or 1350mm
Height 1800mm
Wheel base 1220mm
Wheel diameter Φ680mm
Min turn radius 10m
Controller method ResistanceIGBT or frequency
Brake method MechnicalElectricAc frequency
