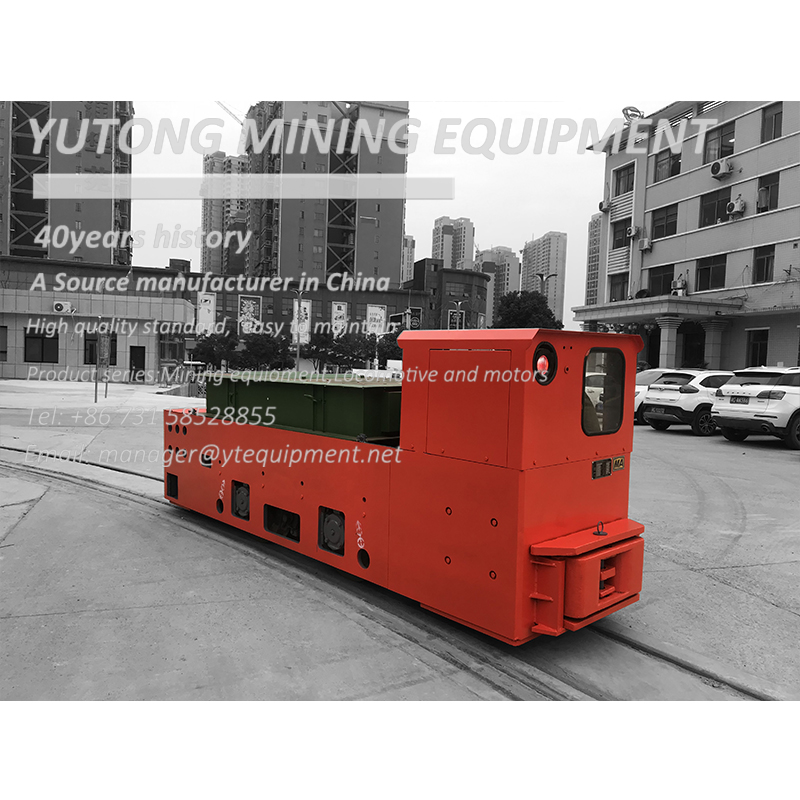

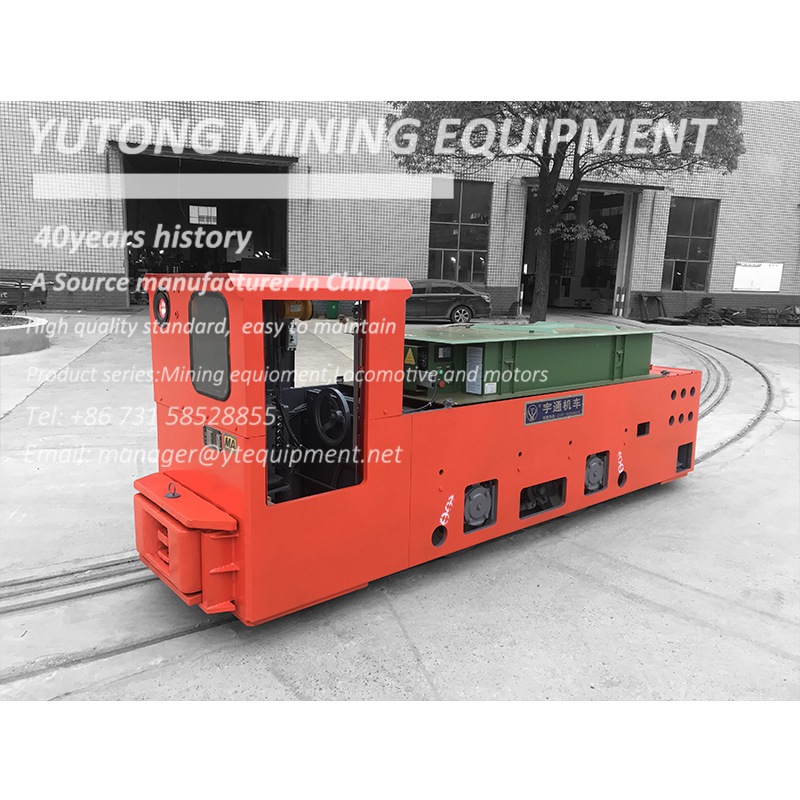

8 Ton Mining battery locomotive

The 8 Ton Lithium Battery Locomotive has a cargo capacity of about 70-80 tons on a slope of 3‰ (the weight of the mine wagons and the weight of the locomotive should be calculated.)

Send Inquiry →
CJY10 Ton Underground Mining Trolley Locomotive
1. Product model meaning and carrying capacity introduction (8 Ton Mining battery locomotive)
The 8 Ton Lithium Battery Locomotive has a cargo capacity of about 70-80 tons on a slope of 3‰ (the weight of the mine wagons and the weight of the locomotive should be calculated.)

2. Questions before inquiry
The speed control methods include: Resistance control IGBT control or Ac frequency controller
The gauge is divided into three types: 600 762 and 900 or as required
The voltage are 110V and 140V type
The brake Method including hydraulic brake and air brake

3. The use conditions of the mine lithium battery electric locomotive electric locomotive
1. The altitude does not exceed 1200m if exceed we suggest use the Plateau Motor
2. The highest temperature of the surrounding air is +40℃ and the lowest temperature is -20℃.
3. The average maximum relative humidity of the wettest month is 95% (the average minimum temperature of the same month is not more than +25℃).
4. In mines that do not contain gas or explosive gas.

Advantage of our Locomotive please reference: Locomotive Advantages.


Hot Tags: 8 Ton Mining battery locomotive,China, manufacturers, suppliers, factory, customized, price

←5 Ton Explosion-proof Lithium Battery Locomotive

10 Ton Lithium Battery Locomotive→

Related Products
Technical Specification

Model CTY(L)8/6、7、9G
Dead-weight 8t
Track gague 600、762 or 900mm
Tracktion force 11.18kN 12.83kN
Speed 6.2km/h 7.5 km/h 7.8 km/h
Max traction 19.62kN
Battery device Voltage 110V 132V 140V 144V
Capacity 440Ah
Motor power 11kW×2 15kW×2
dimensions Lenght 4430mm 4250mm
Width 1050、1212 or 1350mm
Height 1600mm 1600mm
Wheel base 1100mm 1150mm
Wheel diameter Φ680mm Φ680mm Φ600mm
Min turn radius 7m
Controlling way Resistence or IGBT or AC Converter
Brake way Mechnical brake or air brake
