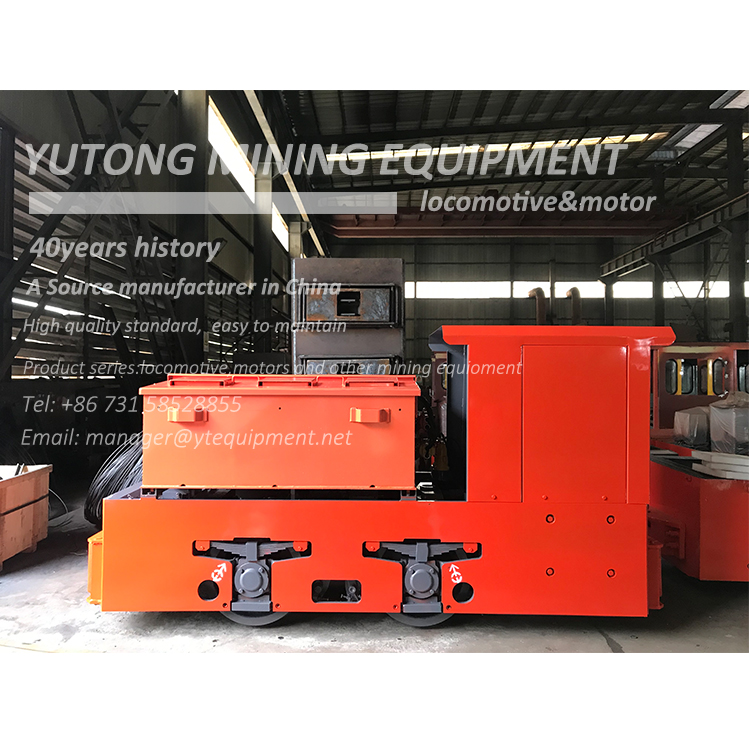

5 Ton Electric Mining Flameproof Battery Locomotive

5 Ton Electric Mining Flameproof Battery Locomotive generally refers to the traction equipment for rail transportation, and is the "locomotive" of rail vehicles. It is powered by a high-voltage cable or battery, and uses an electric motor to provide power to drive the wheels to rotate. Therefore, its traction is not only limited by the power of the traction motor, but also by the friction coefficient between the wheels and the rail surface. In addition, the gradient of the transportation track also has a significant impact on its transportation capacity. Generally, the gradient is required to be 3‰, and the local gradient cannot exceed 30‰.

	Model			CTY5/6、7、9G(B)
	Total-weight			5t
	Track gague			500、600、762 or 900mm
	Tracktion force			7.06kN
	Max traction			12.26kN
	Speed			7km/h
	Battery device		Voltage	90V
			Capacity	385Ah
	Motor power			7.5 kW×2
	dimensions	Lenght		3170mm
		Width		920、1082 or 1220mm
		Height		1550mm
		Wheel base		850mm
		Wheel diameter		Φ520mm
	Min turn radius			6m
	Controlling way			Resistence or IGBT
	Brake way			Mechnical brake or hydraulic
