The advantage of 10 Ton Electric Mining Flameproof Battery Locomotive is that it can get rid of the constraints of wiring, and it has advantages under the conditions of small output and irregular roadways, and does not require much construction in th

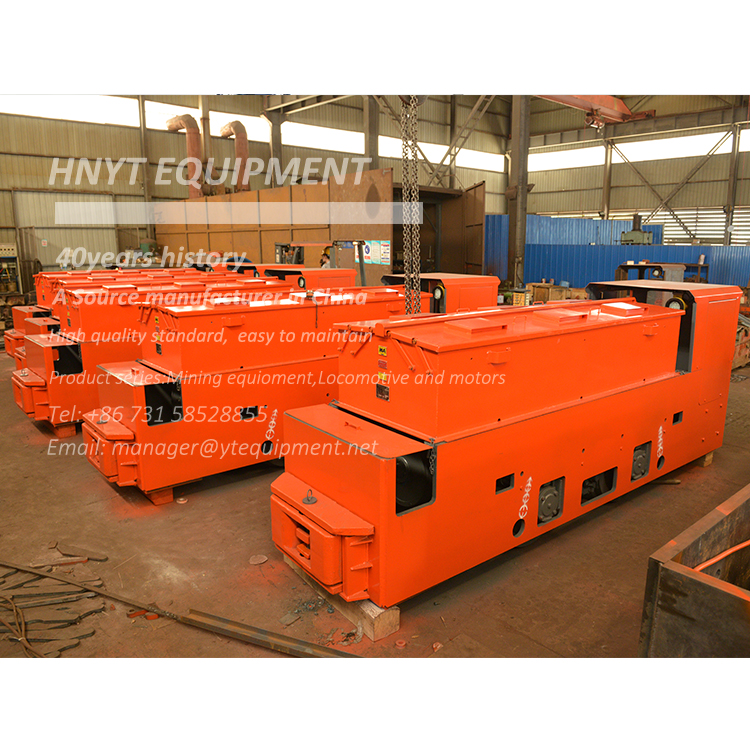

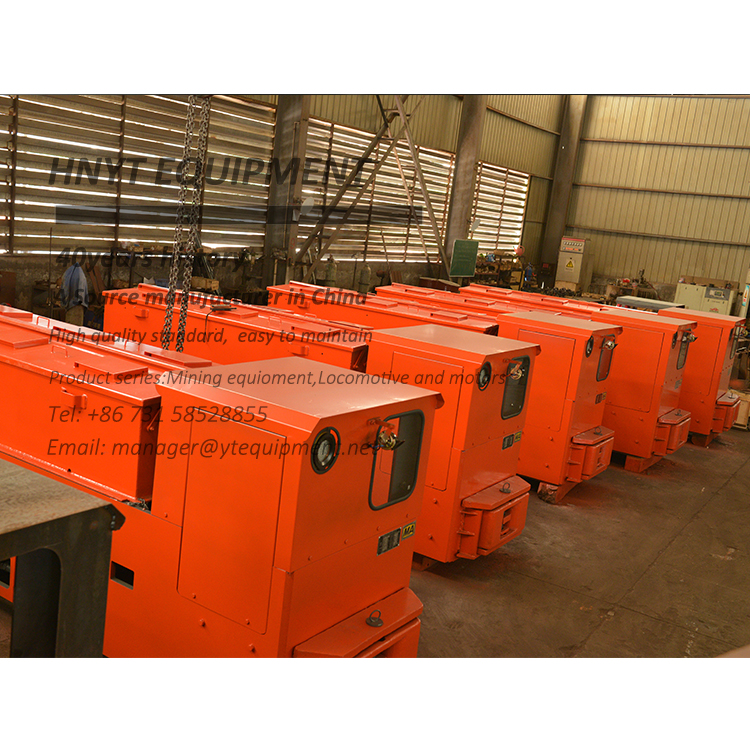

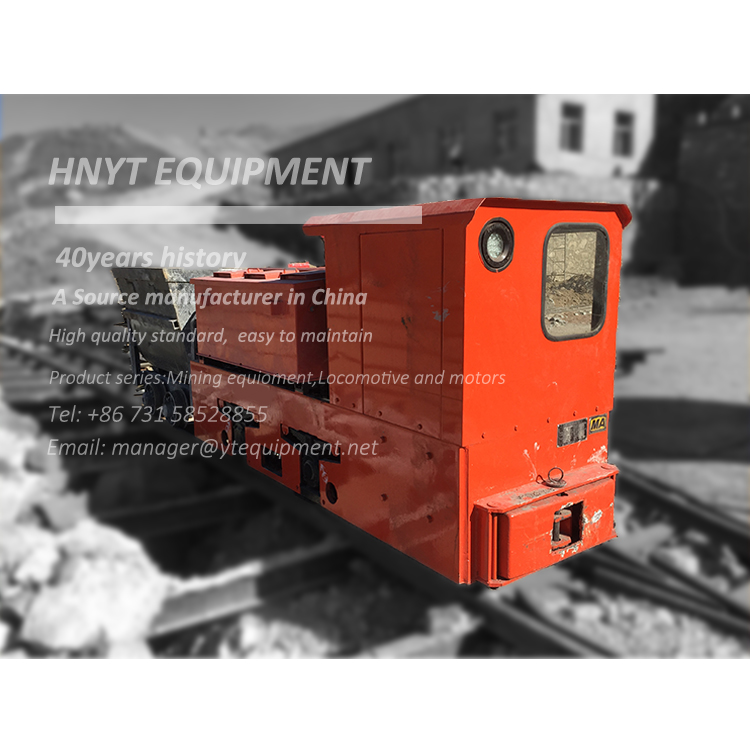

The advantage of 10 Ton Electric Mining Flameproof Battery Locomotive is that it can get rid of the constraints of wiring, and it has advantages under the conditions of small output and irregular roadways, and does not require much construction in the initial stage. And because it is powered directly by the battery, there is no danger of sparks to detonate the gas, and the use environment is more flexible.
| Model | CTY(L)10/6、7、9G | ||||||
| Dead-weight | 10t | |||||||
| Track gague | 600、762 or 900mm | |||||||
| Tracktion force | 11.18kN | 12.83kN | ||||||
| Speed | 6.2km/h | 7.5 km/h | 7.8 km/h | |||||
| Max traction | 19.62kN | |||||||
| Battery device | Voltage | 110V | 132V | 140V | 144V | |||
| Capacity | 440Ah | |||||||
| Motor power | 11kW×2 | 15kW×2 | ||||||
| dimensions | Lenght | 4430mm | 4250mm | |||||
| Width | 1050、1212或1350mm | |||||||
| Height | 1600mm | 1600mm | ||||||
| Wheel base | 1100mm | 1150mm | ||||||
| Wheel diameter | Φ680mm | Φ680mm | Φ600mm | |||||
| Min turn radius | 7m | |||||||
| Controlling way | Resistence or IGBT or AC Converter | |||||||
| Brake way | Mechnical brake or air brake | |||||||
Operation Video

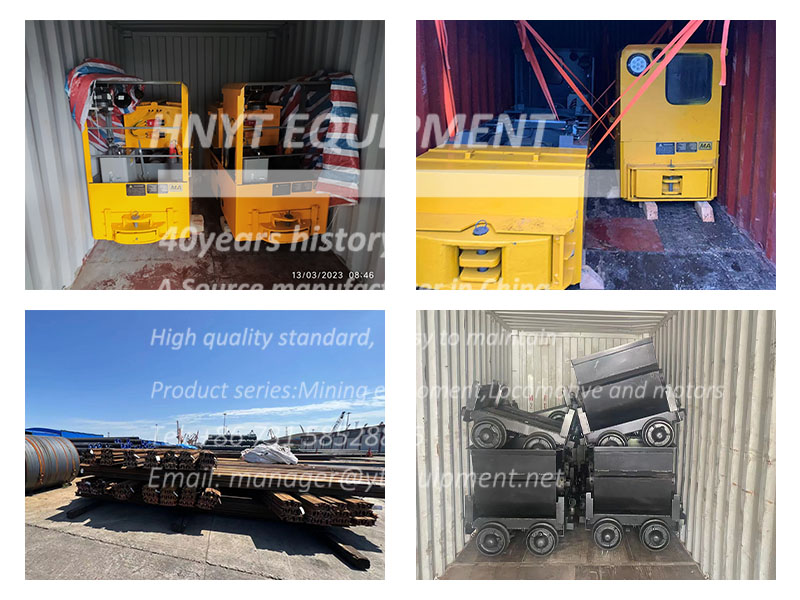

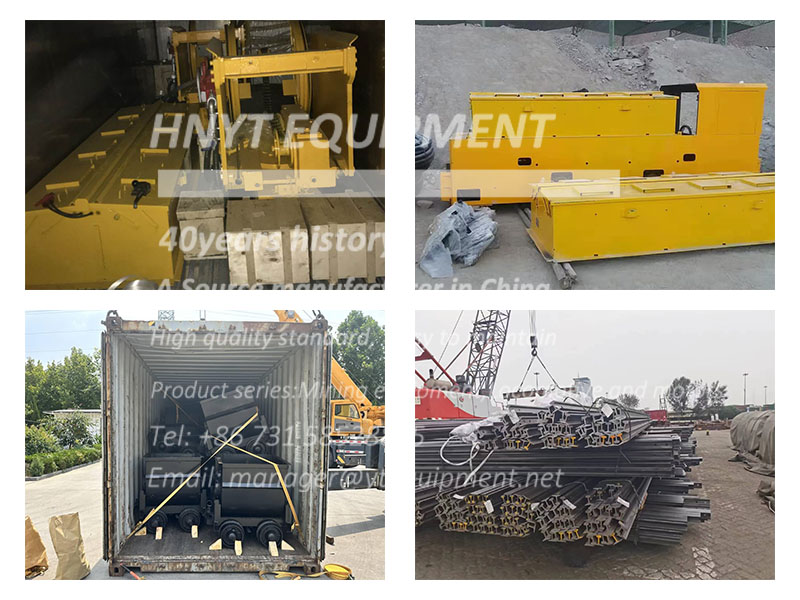

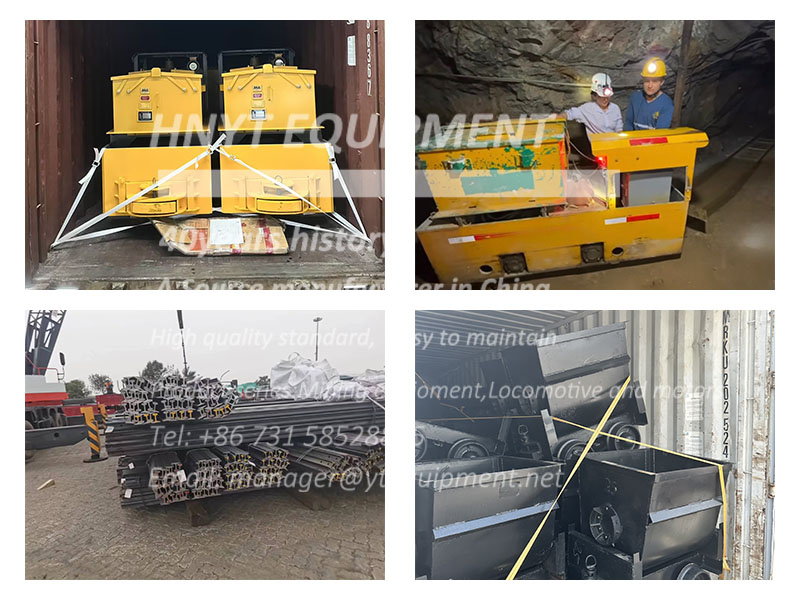

Shipment and one site details
