8 Ton Electric Mining Flameproof Battery Locomotive

The 8Ton electric mining flameproof battery locomotive is applied in the coal mine as main transportation vehicle.

CJY10 Ton Underground Mining Trolley Locomotive

The working principle of the 8 Ton Electric Mining Flameproof Battery Locomotive is similar to that of the overhead electric locomotive but because the power supply method is changed from a cable to a battery the current flows directly from the battery and enters the traction motor after passing through the explosion-proof plug and resistance box. Then the traction motor drives the wheels to rotate and the locomotive moves forward due to the friction between the wheels and the rail surface.



Model CTY(L)8/679G
Dead-weight 8t
Track gague 600762 or 900mm
Tracktion force 11.18kN 12.83kN
Speed 6.2km/h 7.5 km/h 7.8 km/h
Max traction 19.62kN
Battery device Voltage 110V 132V 140V 144V
Capacity 440Ah
Motor power 11kW×2 15kW×2
dimensions Lenght 4430mm 4250mm
Width 105012121350mm
Height 1600mm 1600mm
Wheel base 1100mm 1150mm
Wheel diameter680mm680mm600mm
Min turn radius 7m
Controlling way Resistence or IGBT or AC Converter
Brake way Mechnical brake or air brake




Application Video

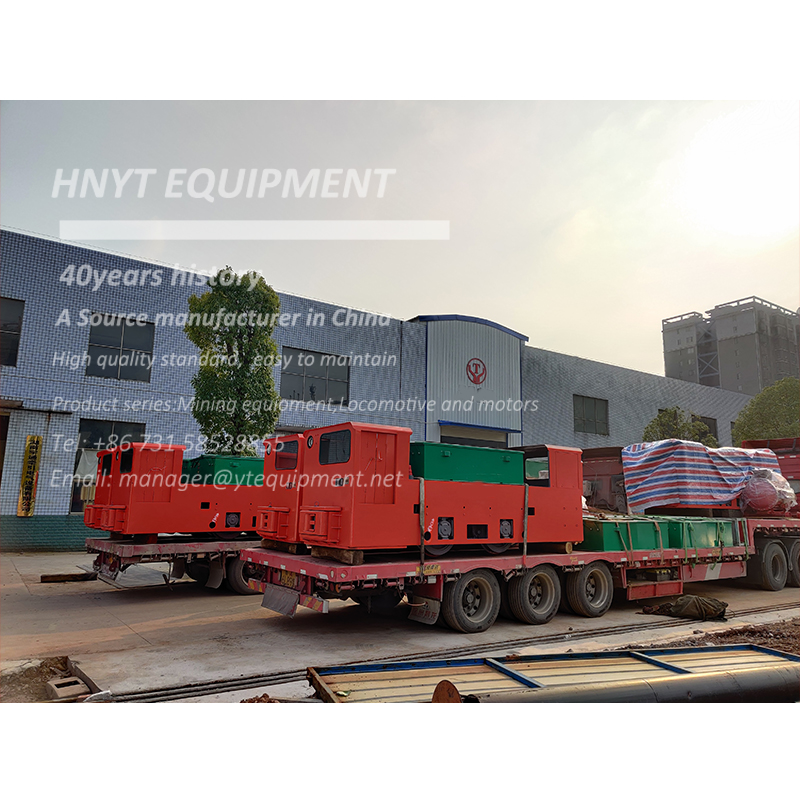

Shipment and one site details

8o12t battery locomotive 1.jpg
