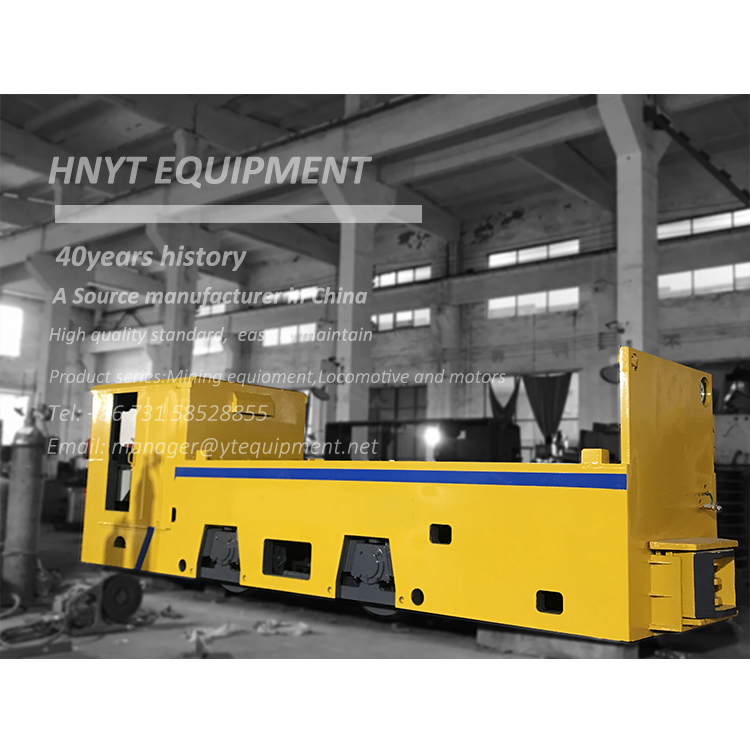

15 Ton Flameproof Battery Locomotive

15 Ton Flameproof Battery Locomotive could applied in middle or big minesit traction force could achieve 120-130 ton ores.

CJY10 Ton Underground Mining Trolley Locomotive

Main Characteristics

1. 15 Ton Flameproof Battery Locomotive constructed in welded steel and suspended by leaf spring or rubber studs on grease bearing seats with tapered roller bearings.

2. In order to achieve continuous and steeples speed regulation they have an electronic speed controller with high reliability.

3. The AC converters convert the DC from trolley line into AC and the controller adjusts the speed of AC motors by the power frequency of the AC converter.

4. Pneumatic brake to the four wheels by brake shoes. Stop brake by manual mechanical brake.

Running Video



Shipment and one site details

8o12t battery locomotive 1.jpg











15 ton flameproof locomotive

CAY15/679G

Adhesive / total weight (t)

15

Track gauge (mm)

600762 or 900

Traction (KN)

18.93

Max. Traction (KN)

36.78

Speed(km/h)

9.6

Max. Speed(km/h)

19.2

Battery Voltage (V)

256

Battery Capacity (Ah)

620

Power (KW)

30*2

Dimensions

Length(mm)

5200

Width(mm)

1400

Height(mm)

2140

Coupler height(mm)

320/430

Wheelbase (mm)

2200

Wheel diameter (mm)

680

Min Curve radius (m)

15

Controller

AC frequency conversion

Braking method

Mechanical Brake
Electrical Brake or Air Brake
