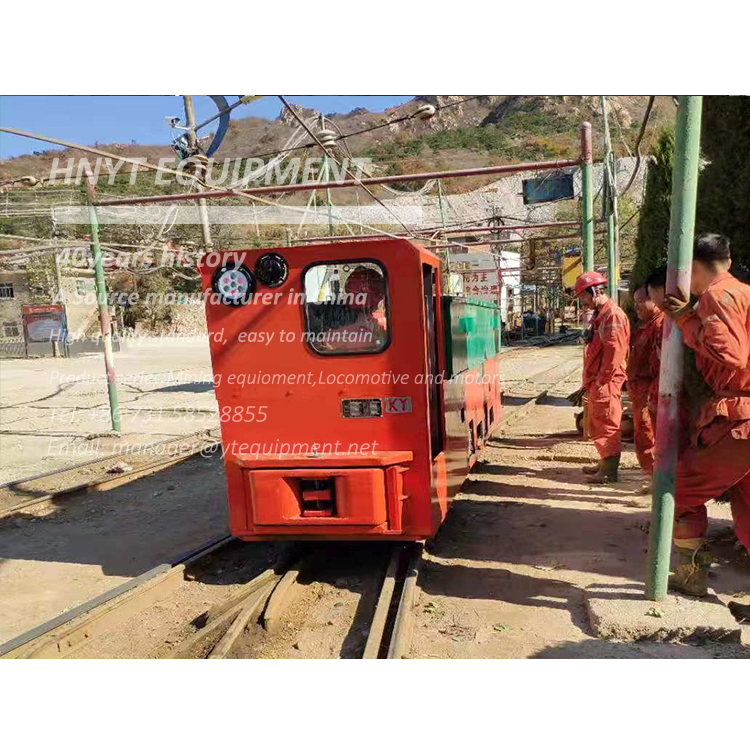

The 12 Ton Lithium Battery locomotive is applied of speed control of IGBT or AC frequency controller. It usually be used in big minings or tunels for transporation with the advtanges of big traction force loading capacityenergy efficiency and short br
1.Product Introduction
The 12 Ton Lithium Battery locomotive is applied of speed control of IGBT or AC frequency controller. It usually be used in big minings or tunels for transporation with the advtanges of big traction force loading capacityenergy efficiency and short brake distance.
The loading capacity is about 80-100 Ton ores when transporating.
2.Questions before inquiry
Track gauge: 600762900 or others
Speed control method: resistance IGBT Or frequency controller
Brake way: mechnical or air brake
Locomotive Avantage Please Click: Locomotive Advantages.
Shipment and one site details
| Model | CTY12/6、7、9G(B) | ||
| Weight | 12t | ||
| Track gauge | 600、762 or 900mm | ||
| Traction force | 16.48kN | ||
| Max traction force | 29.43kN | ||
| Speed | 8.7km/h | ||
| Battery device | voltage | 192V | |
| capacity | 560Ah | ||
| Motor power | 22Kw x 2、30Kw x 2 | ||
| Dimensions | Length | 5100mm | |
| width | 1050、1212 or 1350mm | ||
| Height | 1800mm | ||
| Wheel base | 1220mm | ||
| Wheel diameter | Φ680mm | ||
| Min turn radius | 10m | ||
| Controller method | ResistanceIGBT or frequency | ||
| Brake method | MechnicalElectricAc frequency | ||
