2.5 Ton Explosion-proof Lithium Battery Locomotive

Factory price explosion-proof lithium battery locomotive for sale. We have devoted ourselves to product and maintain locomotive for many years covering the most market of South America and Africa. Looking forward to cooperation with you.

CJY10 Ton Underground Mining Trolley Locomotive

Factory price explosion-proof lithium battery locomotive for sale. We have devoted ourselves to product and maintain locomotive for many years covering the most market of South America and Africa. Looking forward to cooperation with you.



Product Name: High Quality Underground Mining Electric Tunnel Locomotive

Fuel Type: Electric

Brand Name: HNYT

Traction mode power: 3.5x1

Dimensions (L x W x H) (mm): 2360*914*1550mm

Speed (km/h): 4.54km/h

Application: Mining; Subway Tunnel Locomotive

Rail gauge: 600/762/900mm

Place of Origin: Xiangtan China (Mainland)

Rated voltage: 48V

Advantages: Strong traction force

Braking type: Mechanical and Electric

Service: OEM/ODM

Speed control: Resistor or AC or IGBT

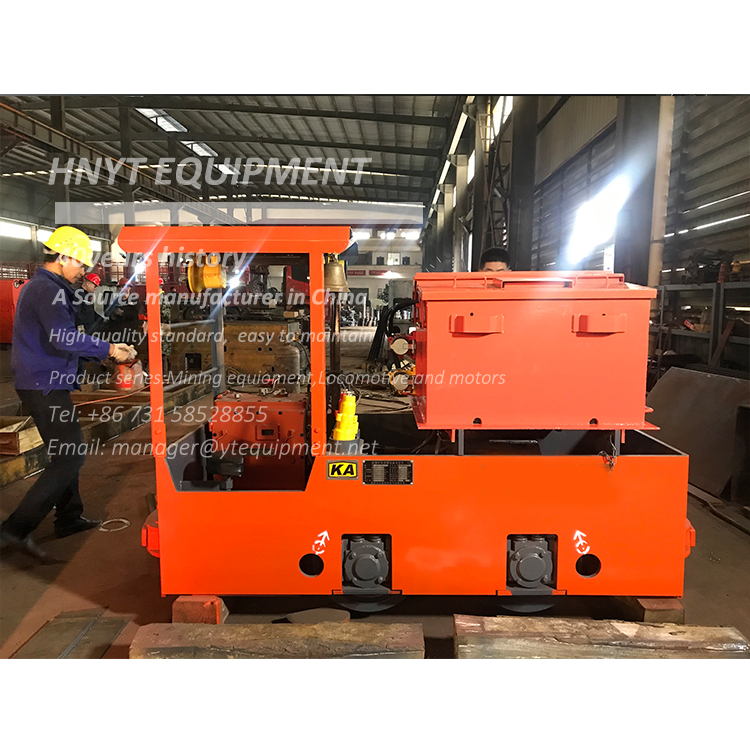

2.5ton Flameproof Battery Locomotive

CDY2.5/679G(B)

Specifications

Adhesive / total weight (t)

2.5

Track gauge (mm)

600762 or 900

Traction (KN)

2.55

Max. Traction (KN)

6.13

Speed

4.54

Battery Voltage (V)

48

Battery Capacity (Ah)

330

Power (KW)

3.5*1

Dimensions

Length(mm)

2360

Width(mm)

9141076 or 1214

Height(mm)

1550

Wheelbase (mm)

650

Wheel diameter (mm)

460

Min Curve radius (m)

5

Controller

Resistance or IGBT

Braking method

Mechanical Brake


Shipment and one site details

2.5t battery locomotive 2.jpg








Lithium battery is the ideal environmentally friendly energy with the features of highly energy storage long circle life and etc. The lead-acid charging needs 10 hours but lithium battery just needs 1-2 hours. Secondly lithium battery have no deflating phenomenon in charge and discharge no safely problem charging in the relatively closed environment also could not hurt staff. Lithium batteries have highly over discharge rate.
