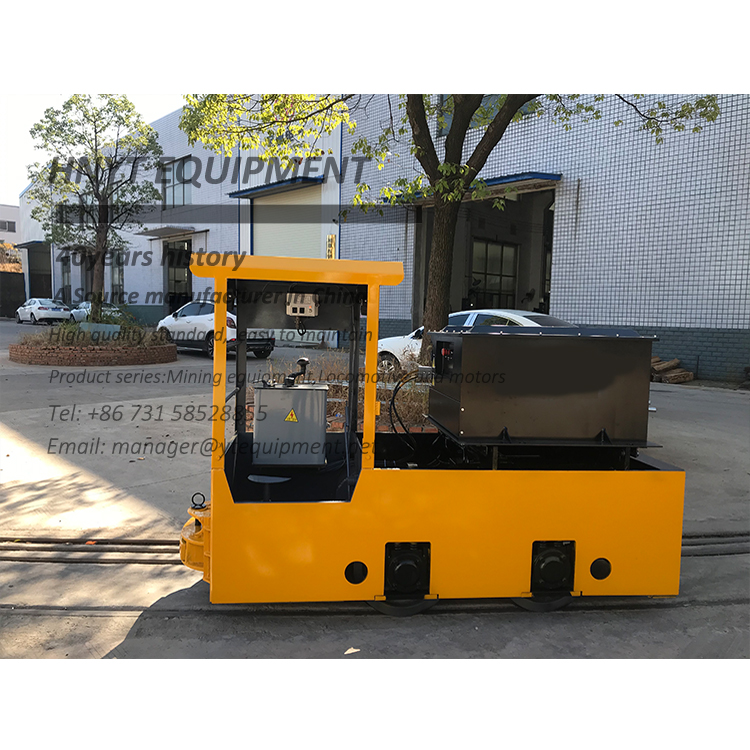

Mining Lithium Battery Locomotive, Underground Lithium Powered Battery Locomotive

Mining Lithium Battery Locomotive applied the lithium battery as its power supply.With the lithium battery, the battery no need to maintain,and the charging time only for 2-3 hours.

CJY10 Ton Underground Mining Trolley Locomotive

Mining Lithium Battery Locomotive applied the lithium battery as its power supply.

With the lithium battery, the locomotive has the belowe advantages.

1、Quick Charge, 2-3 hours.

2、Car Bms management system, Overcharge protection, over discharge protection, over current protection, short circuit protection and temperature protection to ensure high effective running.

3、Maintenece-free, no need to add bath solution, more environment friendly. labor-cost saving.

4、Long service life up to 5-8 years.



Below is the operation video of the Mining Lithium Battery Locomotive, Underground lithium powered battery locomotive

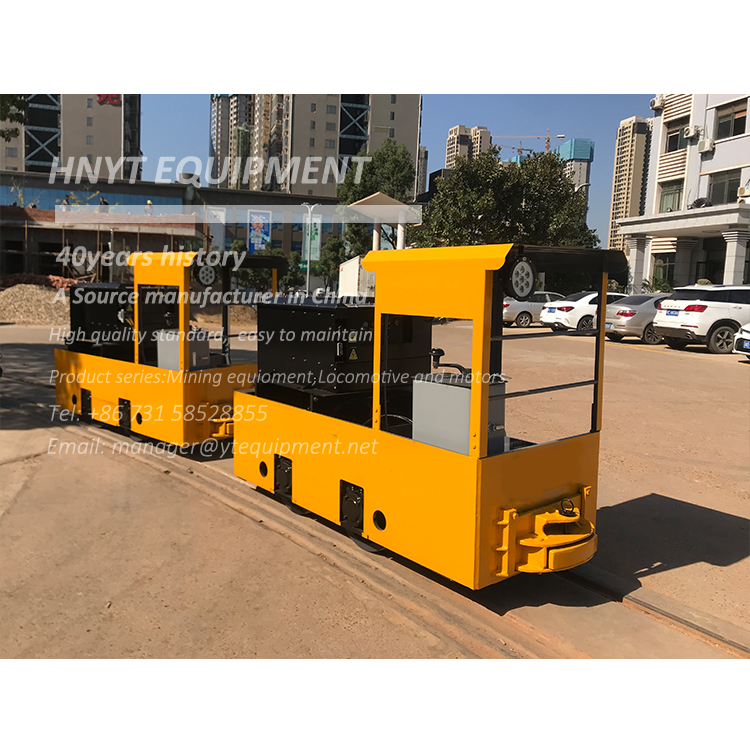

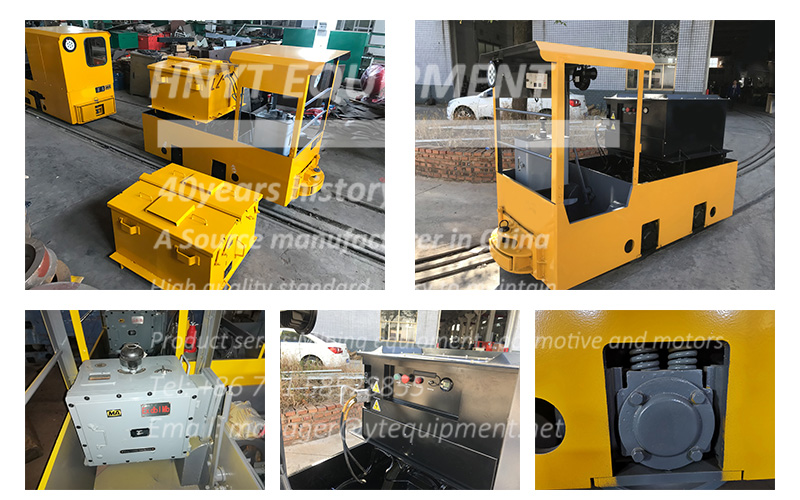

Shipment and one site details

2.5t battery locomotive 2.jpg







Hot Tags: accumulator locomotive  |   pneumatic Rock loader  |   electric rake winch  |   mining locomotive  |   rock loader  |

5 Ton Lithium Battery Locomotive

No Information

Specifactions:

2.5ton Battery Locomotive


Specifications

Adhesive / total weight (t)

2.5

Track gauge (mm)

600,762 or 900

Traction (KN)

2.55

Max. Traction (KN)

6.13

Speed

4.54

Battery Voltage (V)

48

Battery Capacity (Ah)

330

Power (KW)

3.5*1

Dimensions

Length(mm)

2360

Width(mm)

914,1076 or 1214

Height(mm)

1550

Wheelbase (mm)

650

Wheel diameter (mm)

460

Min Curve radius (m)

5

Controller

Resistance or IGBT

Braking method

Mechanical Brake
