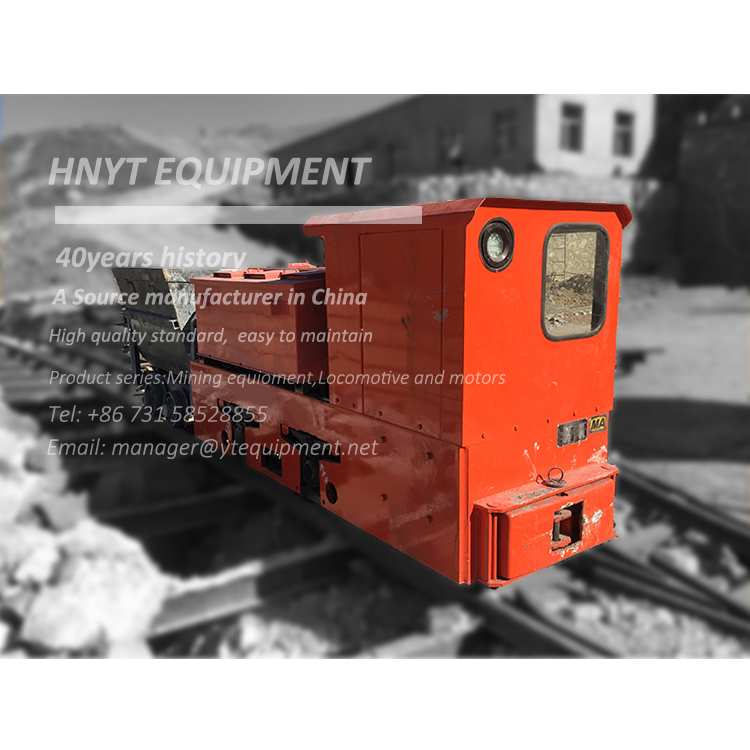

Our 5 ton explosion-proof locomotive have CE certificate. This 5 ton locomotive is widely used in gas mines.
What the special point of this 5 ton anti-explosion locomotive is that used the lithium battery as its power supply.
With the lithuim battery, the locomotive could be maintenance-free, BMS intelligent protection, charging without care, no memory, plug and play, quite labor-saving. Most importantly, the charging time only be 2-3 hours, which make the mining work more effiently
Operation video of our locomotive
Shipment and one site details
 | Model | CTY5/6、7、9G(B) | ||
| Total-weight | 5t | |||
| Track gague | 500、600、762 or 900mm | |||
| Tracktion force | 7.06kN | |||
| Max traction | 12.26kN | |||
| Speed | 7km/h | |||
| Battery device | Voltage | 90V | ||
| Capacity | 385Ah | |||
| Motor power | 7.5 kW×2 | |||
| dimensions | Lenght | 3170mm | ||
| Width | 920、1082 or 1220mm | |||
| Height | 1550mm | |||
| Wheel base | 850mm | |||
| Wheel diameter | Φ520mm | |||
| Min turn radius | 6m | |||
| Controlling way | Resistence or IGBT | |||
| Brake way |
Mechnical brake or hydraulic | |||
