2.5 Ton Battery Locomotive

The 2.5 ton battery locomotive is very popular among the small mines due to its flexible appearancethe pull ability is about 25 ton ores.

CJY10 Ton Underground Mining Trolley Locomotive

Production Introduction

The 2.5 ton battery locomotive is very popular among the small mines due to its flexible appearance and the performance of easy operate. The pull ability is about 25 ton ores.

Before puchase or inquiry you have to choose the configuration requirements

Mode: Explosion-proof or common mode

Speed governor : Cam controller or chopper controller

Battery device : lead-acid Maintenance-free battery or Li-ion battery

Track gauge: 500600762900 or based on requirement

Video:

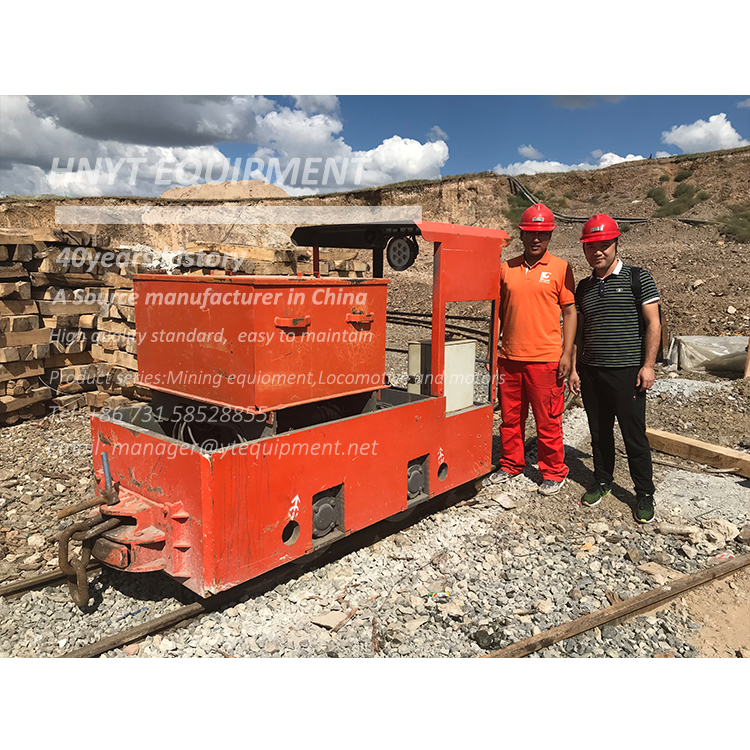

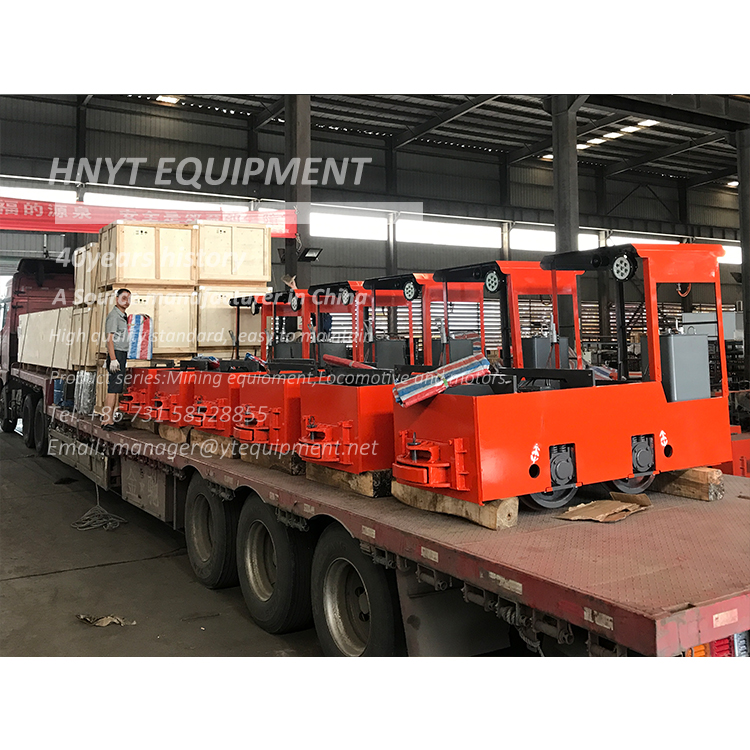

Shipment and one site details

2.5t battery locomotive 2.jpg







3 Ton Battery Locomotive

No Information

We could provide durable battery locomotive with factory price and CE certification. Our factory has more than 40 years experience of production and maintenance mining locomotive got good feedback from South America and Europe.

2.5ton Battery Locomotive

Specifications

Adhesive / total weight (t)

2.5

Track gauge (mm)

600762 or 900

Traction (KN)

2.55

Max. Traction (KN)

6.13

Speed

4.54

Battery Voltage (V)

48

Battery Capacity (Ah)

330

Power (KW)

3.5*1

Dimensions

Length(mm)

2360

Width(mm)

9141076 or 1214

Height(mm)

1550

Wheelbase (mm)

650

Wheel diameter (mm)

460

Min Curve radius (m)

5

Controller

Resistance or IGBT

Braking method

Mechanical Brake




2.5 Ton Battery Locomotive(图2)
