3 Ton Battery Locomotive

We offer high quality battery locomotive with competitive price and CE certification. Our factory has more than 40 years experience of production and maintenance mining locomotive covering the market of South America and Europe. We are expecting to b

CJY10 Ton Underground Mining Trolley Locomotive

Features

The structure of the 3 Ton battery locomotive is reasonable, the explosion-proof performance is reliable, the starting is smooth, and the energy consumption is saved. Organic speed locomotives use battery series and parallel, motor series and parallel plus magnetic field weakening. The number of speed adjustment stages is 7 and the car starts more smoothly without obvious impact. The explosion-proof performance is reliable, the quality is good, the structure is simple, easy to maintain, and it is very popular among users.


The 3 Ton Battery Locomotive supplied by our company takes into account the small and compact characteristics of small locomotives and has strong traction, which is 1.5 times that of DC motor traction locomotives of the same tonnage. It has the characteristics of reasonable structure layout, safe and reliable driving operation and small maintenance. At the same time, the frequency converter is also equipped with various protection functions such as undervoltage, overvoltage, overheat, overcurrent, and overspeed, as well as brake deceleration charging function, full speed control and electrical braking function. The safety of the locomotive is greatly improved, and the occurrence of safety accidents is reduced or even avoided.




Technical Specification

Model CTY3/6、7、9G(B)
Dead weight 3 t
Track gauge 600、762 or 900mm
Traction force 2.55kN
Max traction force 6.13kN
Speed 4.54km/h
Battery device Lithium battery 51.2v 300ah
Lead acid battery 48V330AH
Motor power 4.8 kW×1
Dimensions Length 2330mm
width 914、1076 or 1212mm
Height 1550mm
Wheelbase 650mm
Wheel diameter Φ460mm
Min turn radius 5m
Controlling way Resistance or IGBT chopper
Brake way Mechanical brake

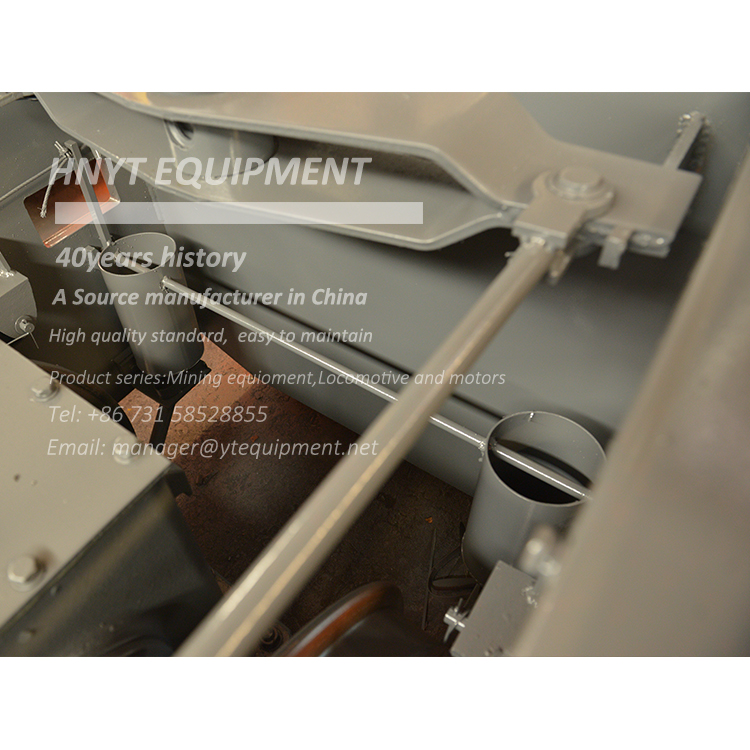

Shipment and one site details

2.5t battery locomotive 1.jpg
