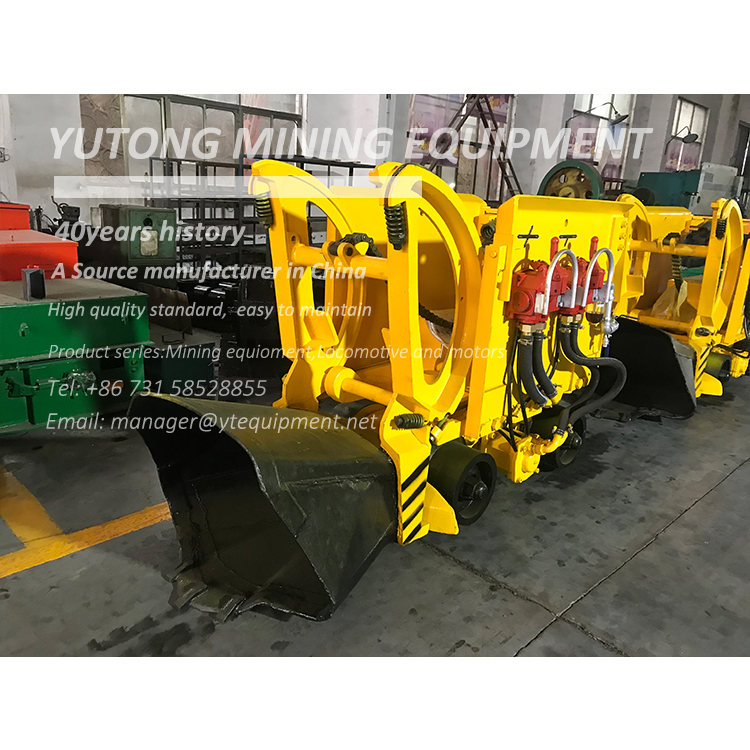

Zq-26 Pneumatic Ore Mucking Machine

The ZQ-26 pneumatic ore mucking machine is suitable for working in horizontal excavation roadways with a gauge of 600 mm, a roadway height of 2.25 meters or more, a roadway width of 1.8 to 2.5 meters, and a slope of less than 8 C. The range of loaded

Send Inquiry →
CJY10 Ton Underground Mining Trolley Locomotive
The ZQ-26 pneumatic ore mucking machine is suitable for working in horizontal excavation roadways with a gauge of 600 mm, a roadway height of 2.25 meters or more, a roadway width of 1.8 to 2.5 meters, and a slope of less than 8 °C.
The range of loaded materials is wide, and it can be loaded with various hard rocks and ores. The maximum size of the loaded rock can reach 500 mm, but the rock size in the range of 200 to 300 mm is the best.
The pneumatic rock loader has a compact structure, convenient and reliable operation, good sealing performance, and dust and moisture resistance. Due to the use of compressed air, the power source can work in an environment with gas and flammable gas.



Hot Tags:

←Wheel type pneumatic rock shovel loader

Wheel pneumatic rock loader→

Related Product
Specification Table
Model Z-17AW Z-20AW Z-30AW ZQ-26
Loading capacity m³/h 20-30 30-40 50-60 40-50
Loading area m³ 0.17 0-20 0.3 0.26
Loading width m 1.7 2 2.2 2.7
Track gauge mm 500600762 or 900
Power Motor Motor Motor Wind motor
Walking power kw 10.5 10.5 15 10.5
Lifting bucket power KW 10.5 13 15 15
Unloading height mm 10.5 1360 1370 1250
Dimension mm Length  2120 2480 2620 2440
Width 1011 1380 1320 1380
Height 1920 1460 1545 1500
Weight 3760 3700 4600 2700
