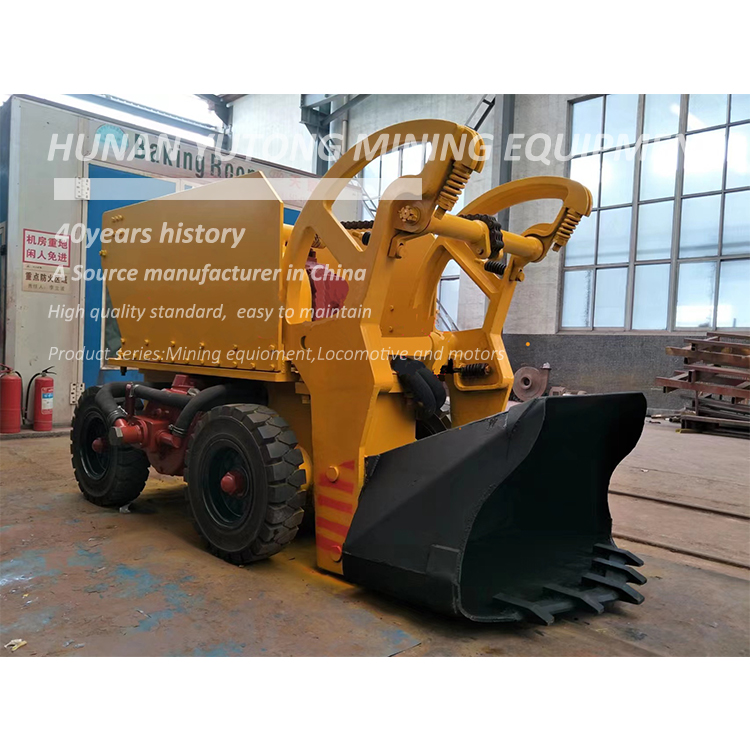

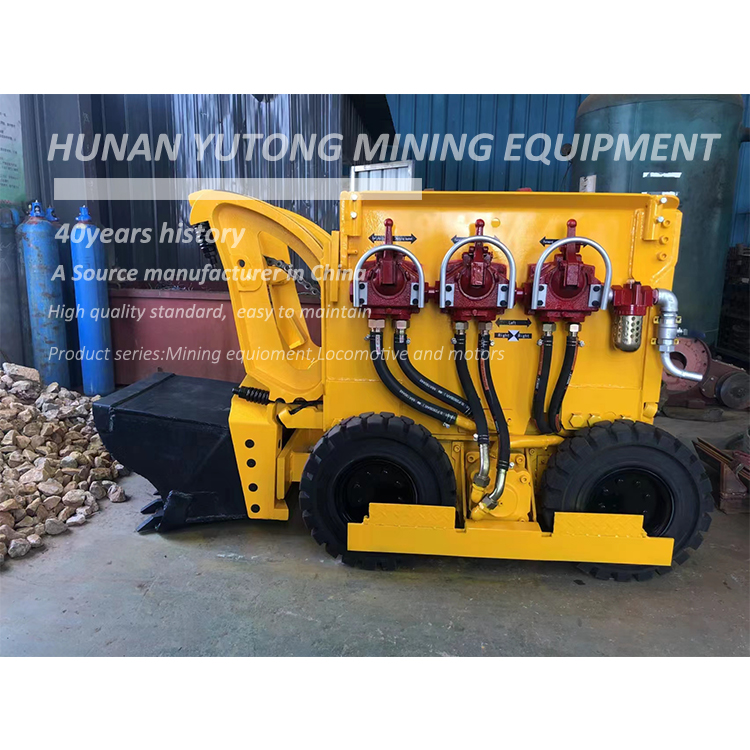

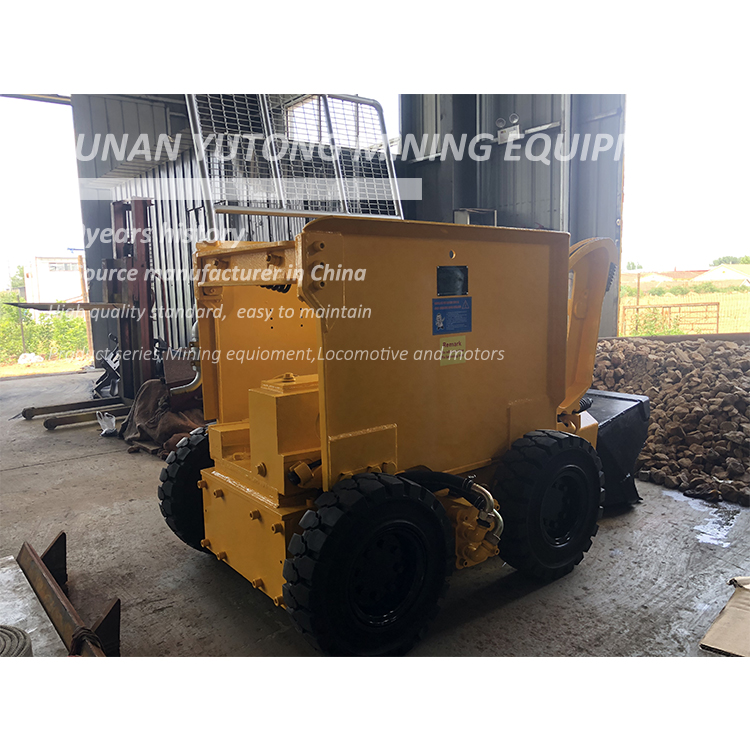

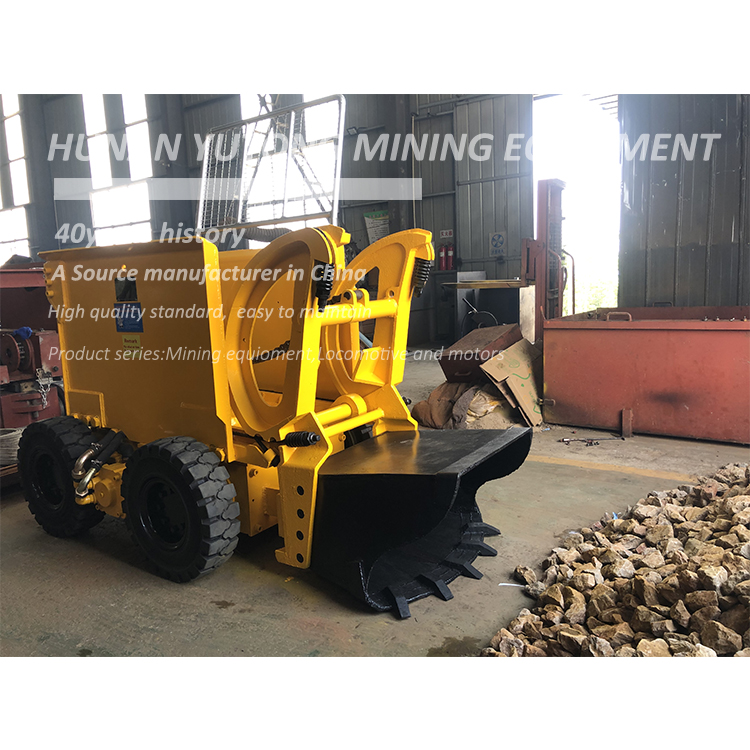

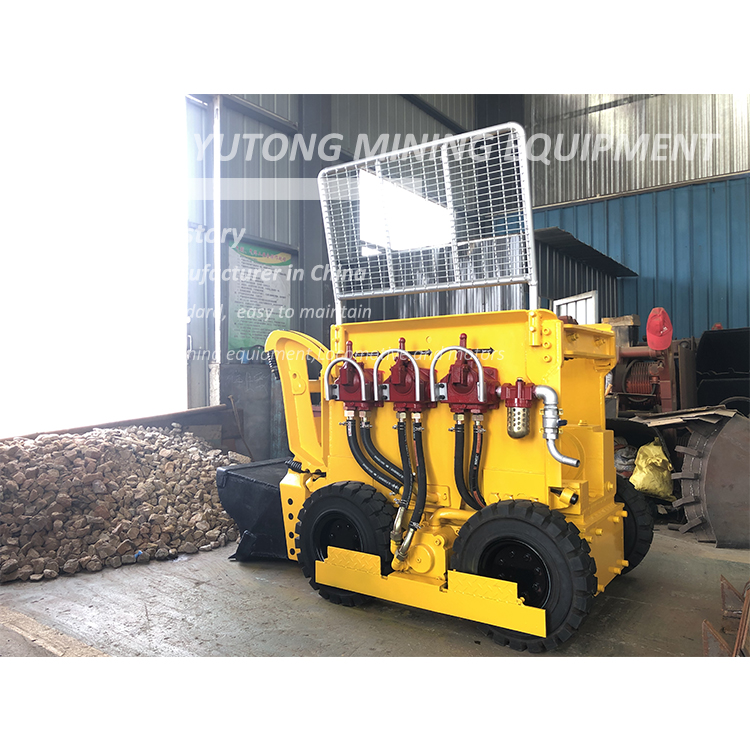

Pneumatic Shovel Wheel Type Rock Loader with compressed -air rock shovel, it has feature of follows
Pneumatic Shovel Wheel Type Rock Loader with compressed -air rock shovel, it has feature of follows:
Dependable Rock loading;
Simple, self centred controls for easy and safe operation;
Low centre of gravity;
Easy swinging of upper deck for side digging;
Wide tread wheels with deep flanges for extra stability;
Power swing, as an option, for virtual pinpoint control of bucket position.
| Model | Model | |
| Loading capacity | 100m3/h | 70m3/h |
| Loading area | 0.45m3 | 0.3m3 |
| Walking power | 20HP*2 | 9kw*2 |
| Maximum air consumption | 17.6m3/min*2 | 17.6 m3 / min×2 |
| Working pressure | 4.21-7.03kg/cm2(60-100psi) | 4.21-7.03kg/cm2(60-100psi) |
| Rising motor | 25HP*2 | 15kw |
| Maximum air consumption | 20m3/min | 20m3/min |
| Working pressure | 4.21-7.03kg/cm2(60-100psi) | 4.21-7.03kg/cm2(60-100psi) |
| Walking speed | 1.81m/s | 1.81m/s |
| Tire type | solid tire | solid tire |
| Rising height | 2600mm | 2380mm |
| dump width | 1200mm | 1200mm |
| Unloading height | 1500mm | 1400mm |
| Unloading distance | 457mm | 450mm |
| Machine length | 2800mm | 2600mm |
