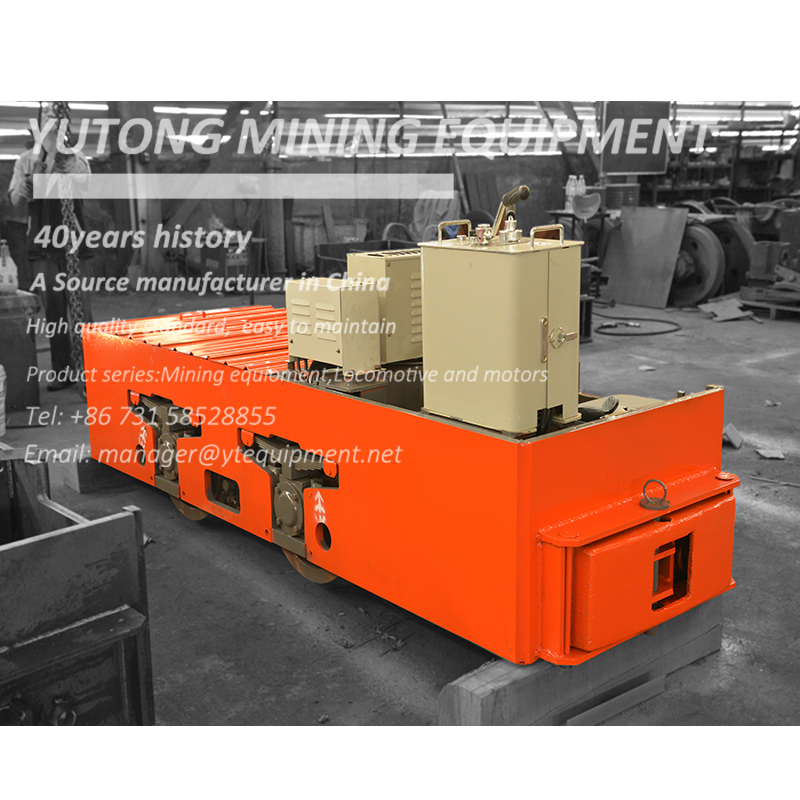

1.5 Ton Trolley Locomotive

Durable trolley locomotive for metal mine with competitive price. Our factory has more than 40 years experience for locomotive production and maintenance got good feedback from domestic and foreign. We are expecting to extend business collaboration

CJY10 Ton Underground Mining Trolley Locomotive

Product Introduction

This 1.5 ton trolley locomotive is widely used in smaill mines with overhead lines the traction pull force is about 15 ton

ores once time. This locomotive has small form factor which could be flexible running on the mines.

Voltage: 100V or 250V

Track Gauge: 500600762 900 or as required

Controller : IGBT Or Cam controller

About us

Advantages1

Certificate - 副本

Customers show


Hot Tags: 1.5 ton trolley locomotive, China, manufacturers, suppliers, factory, customized, price

1.5ton Trolley Locomotive

Model

CJY1.5/6、7、9G(B)

Adhesive / total weight

1.5t

Track gauge

600、762or900mm

Traction

2.55kN

3.24kN

Max. Traction

3.68kN

Speed

4.54km/h

6.6km/h

Direct Voltage

100V

250V

motor power

3.5kW×1

6.5kW×1

Dimensions

Length

2340mm

2370mm

Width

950、1112 or 1250mm

Height

550mm

Wheel base

650mm

Wheel Diameter

Φ460mm

Operational height of current-controller

1600~2000mm

1800~2000mm

Min Curve radius

5m

Controller

Resistance or IGBT

Braking method

Mechanical Brake
