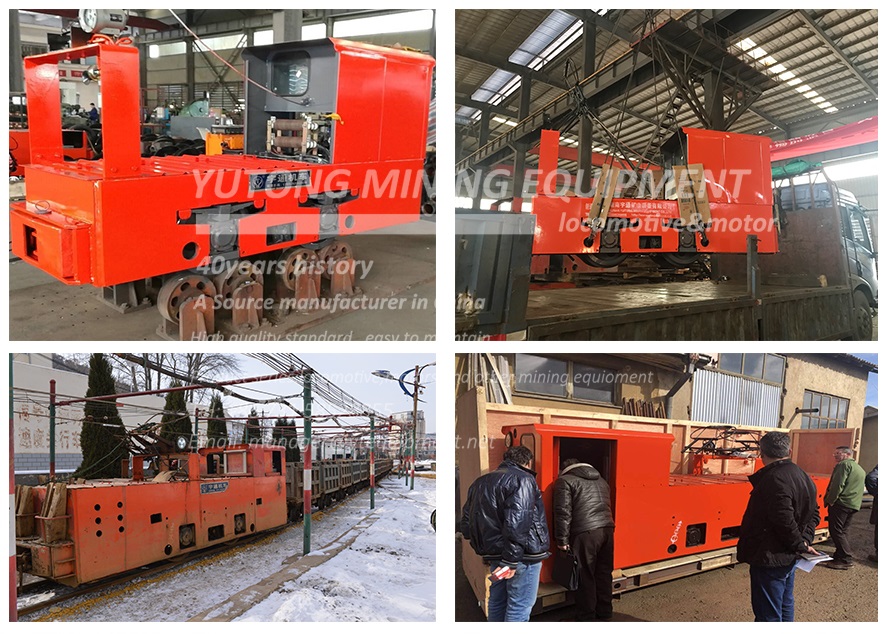

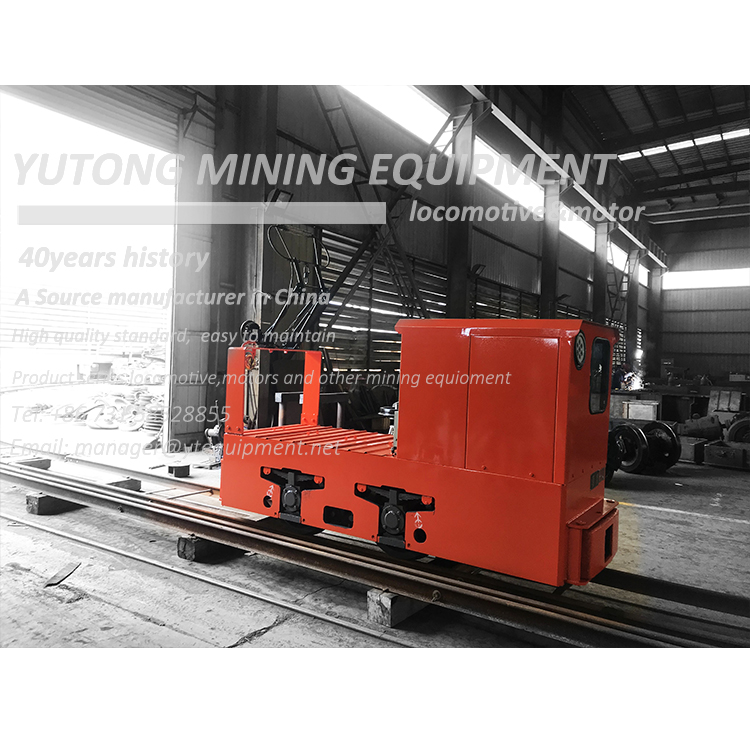

3 ton trolley locomotive is applied in small mines as the main traction vehicle it could pull about 30 ton ores.
3 ton trolley locomotive is applied in small mines as the main traction vehicle it could pull about 30 ton ores.
It is applied of speed control of IGBT chopping wave type or resistor type or AC type.
The braking type is mechanical or electric braking and hydraulic braking is an option according to customer's needs.
Main features include: stable starting strong traction force stable and flexible operation long service life and high efficiency.
The running mechanism applies two-stage driving of spur gear and bevel pinion. Both mechanical braking and electric braking have good effect.
Operation Video
|
3ton Trolley locomotive |
|||
|
Model |
CJY3/6、7、9G(B) |
||
|
Adhesive / total weight |
3t |
||
|
Track gauge |
600、762 or 900mm |
||
|
Traction |
6.1kN |
5.74kN |
|
|
Max. Traction |
7.36kN |
||
|
Speed |
10.6km/h |
7.5km/h |
|
|
Direct Voltage |
550V |
250V |
|
|
motor power |
12kW×1 |
6.5kW×2 |
|
|
Dimensions |
Length |
2700mm |
2750mm |
|
Width |
940、1082 or 1220mm |
||
|
Height |
1550mm |
||
|
Wheel base |
816mm |
850 mm |
|
|
Wheel diameter |
Φ650mm |
Φ520 mm |
|
|
Operational height of current-controller |
1800~2000mm |
||
|
Min Curve radius |
5.7m |
6m |
|
|
Controller |
Resistance or IGBT |
||
|
Braking method |
Mechanical Brake |
||
