The motor is applied as the driving motor of explosion-proof battery locomotive of two-stage driving (twice of speed variation) of Model CTY8-6.7.9/140 and suitable for working in workplace with methane and coal dust explosive mixture. As a substitut

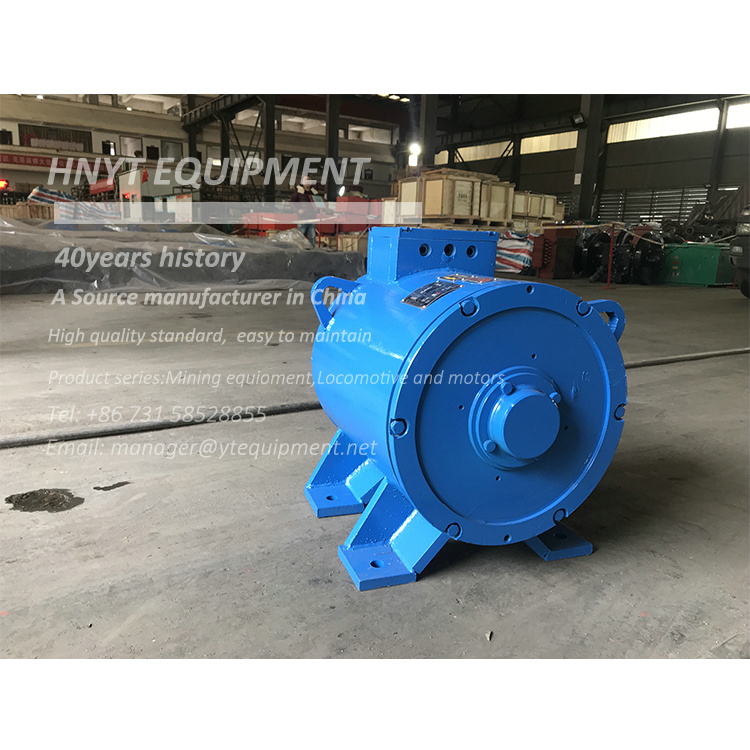

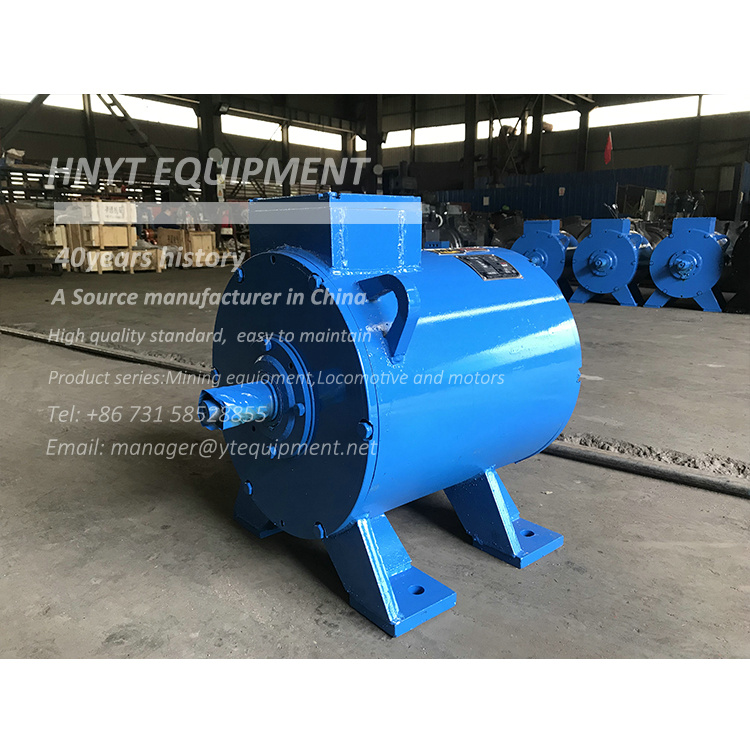

YBVF-15Q AC Motor is applied as the driving motor of explosion-proof battery locomotive of two-stage driving (twice of speed variation) of Model CTY8-6.7.9/140 and suitable for working in workplace with methane and coal dust explosive mixture.
The exterior of the motor should be regularly cleaned of pulverized coal and dust so that the motor can dissipate heat well.
Specification
| Model | YBVF-15Q |
| Working rating | S2-60min | |
| Power kw | 15 | |
| Voltage v | 100 | |
| Current A | 114.9 | |
| Frequency Hz | 54.1 | |
| Speed of rotation r/min | 1062 | |
| Insulation grade | F or H | |
| Level of protection | Ip54 | |
| Weight kg | 310 |
