YVF45Q AC Motor is used on China 14 ton trolley electric locomotive the model type is CJY14/679GP. It has features of simple structure energy conservation maintenance-free smooth operation capability and high efficiency.

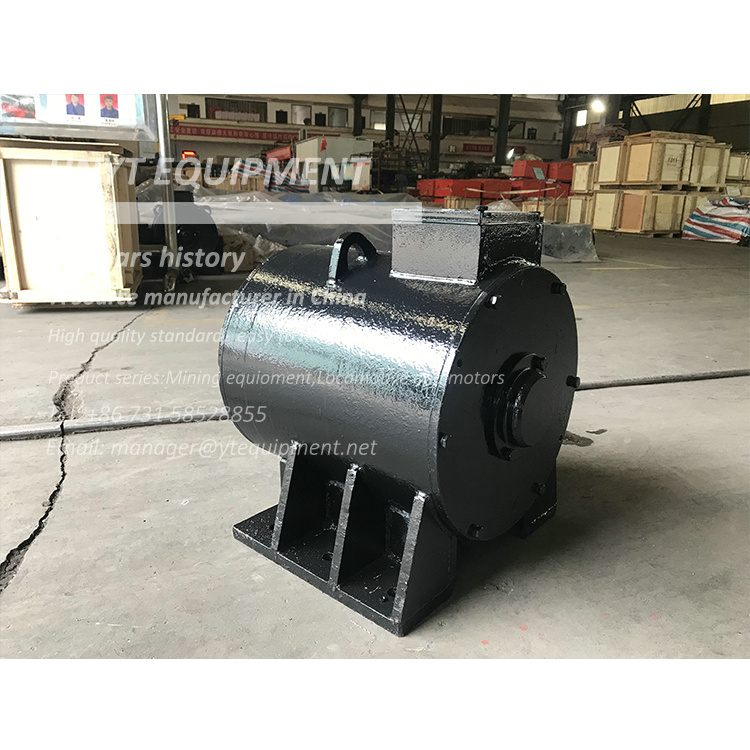

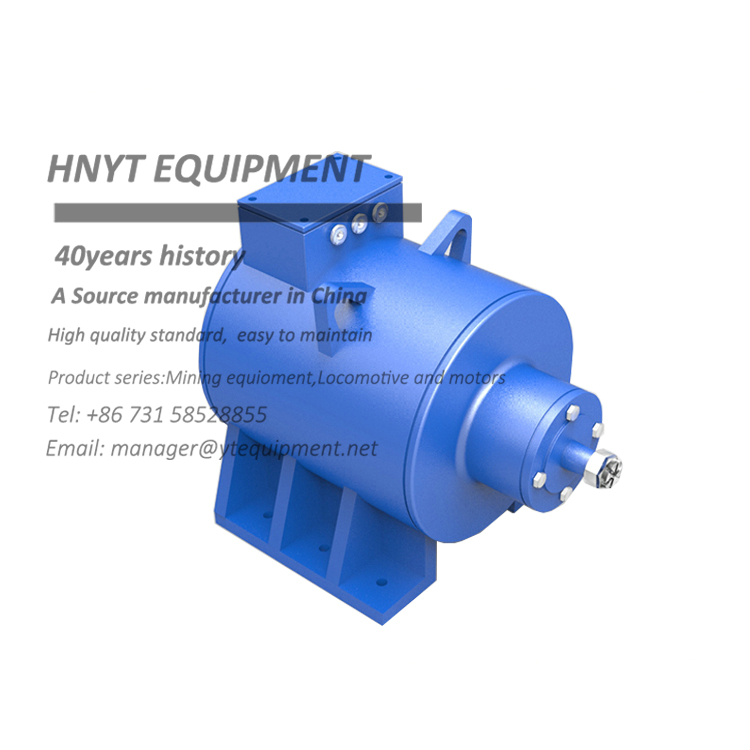

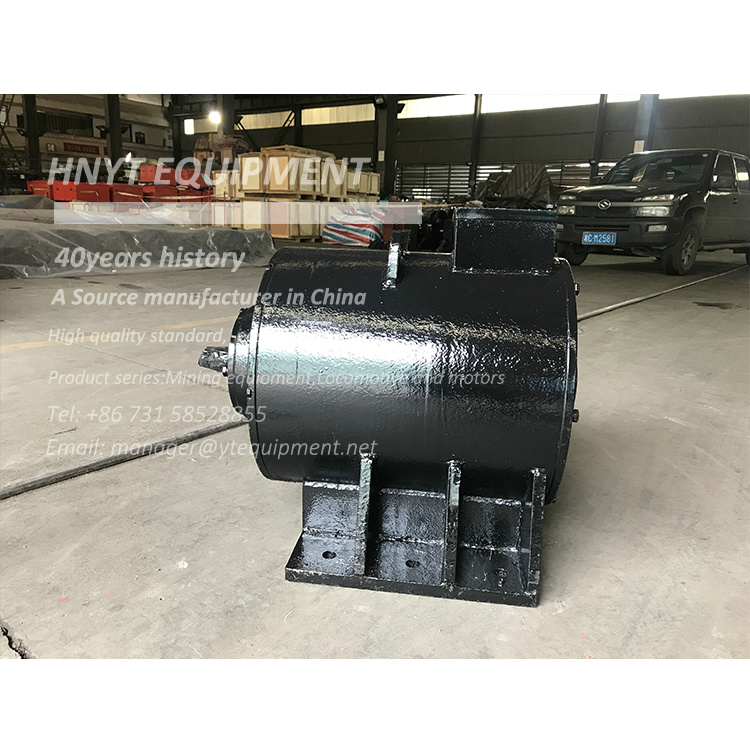

YVF55Q (380/220) Mining general type AC traction motor
This motor is used in the China Mine Trolley locomotive of 14 ton it has the big traction power.
The motor adopts a fully enclosed self-cooling structure a single extension shaft the shaft extension is cylindrical or conical and the locomotive axle is driven by a coupling or gear transmission.
We are a professional manufacture of the mine locomotive DCAC motors we could design the motors according to your need.
Specification
| Model | YVF-55Q |
| Working rating | S2-60min | |
| Power kw | 55 | |
| Voltage v | 400 | |
| Current A | 100.7 | |
| Frequency Hz | 65.8 | |
| Speed of rotation r/min | 1300 | |
| Insulation grade | F or H | |
| Level of protection | Ip54 | |
| Weight kg | 530 |
