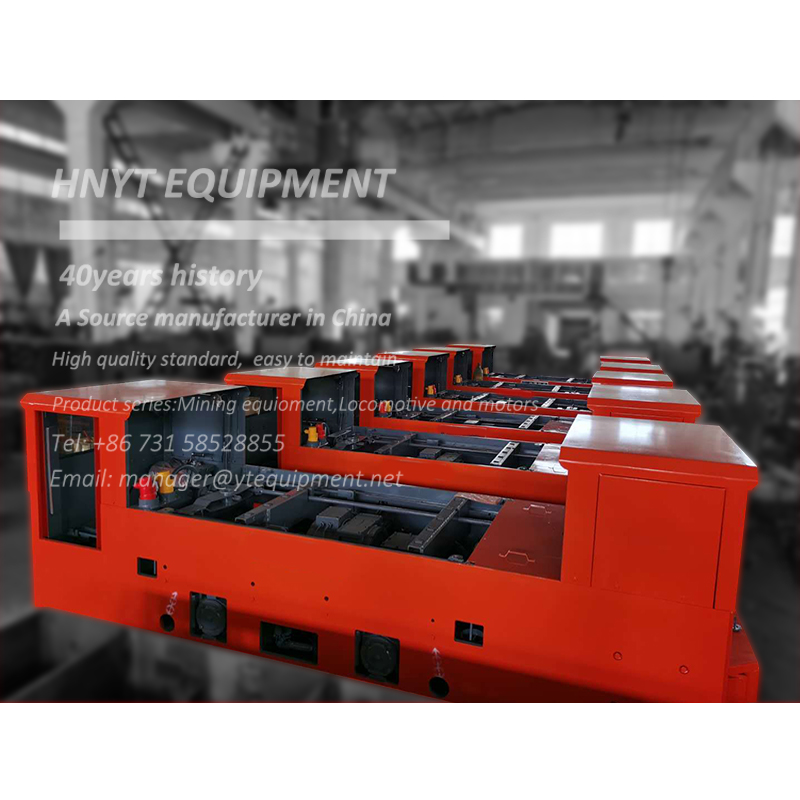

10 Ton Electric Mining Battery Locomotive

We could customized huge tonne electric mining battery locomotive according different mine environment with competitive price. Our factory specialized in mining locomotive for many years, exported lots of locomotive to South America and Europe in thes

CJY10 Ton Underground Mining Trolley Locomotive

10 Ton Electric Mining Battery Locomotive is a special customized type for those middle or big mine and tunnels.

Using Conditions:

1 Applicable to the roadway with danger of gas and coal dust explosion.

2 The altitude does not exceed 1 200 meters.

3 The highest ambient temperature is + 40 ° C and the lowest is -20 ° C.

4 The wettest month, the maximum average monthly relative humidity is less than 9 5% (the average

 minimum temperature in the same month is not higher than + 25 ℃).

5 There is not enough in the air to corrode the metal and destroy the insulating gas and conductive dust.

6 The longitudinal direction of the relative locomotive has an impact of acceleration not greater than 30m / s2.

7 The laying of narrow-gauge track bed and turnout shall comply with the Coal Mine Safety Regulations.


Model CTY10/679G(B)
Weight 10t
Track gauge 600762 or 900mm
Traction force 16.48kN
Max traction force 29.43kN
Speed 8.7km/h
Battery device voltage 192V
capacity 560Ah
Motor power 22Kw x 230Kw x 2
Dimensions Length 5100mm
width 10501212 or 1350mm
Height 1800mm
Wheel base 1220mm
Wheel diameter Φ680mm
Min turn radius 10m
Controller method ResistanceIGBT or frequency
Brake method MechnicalElectricAc frequency


Shipment and one site details

8o12t battery locomotive 2.jpg
