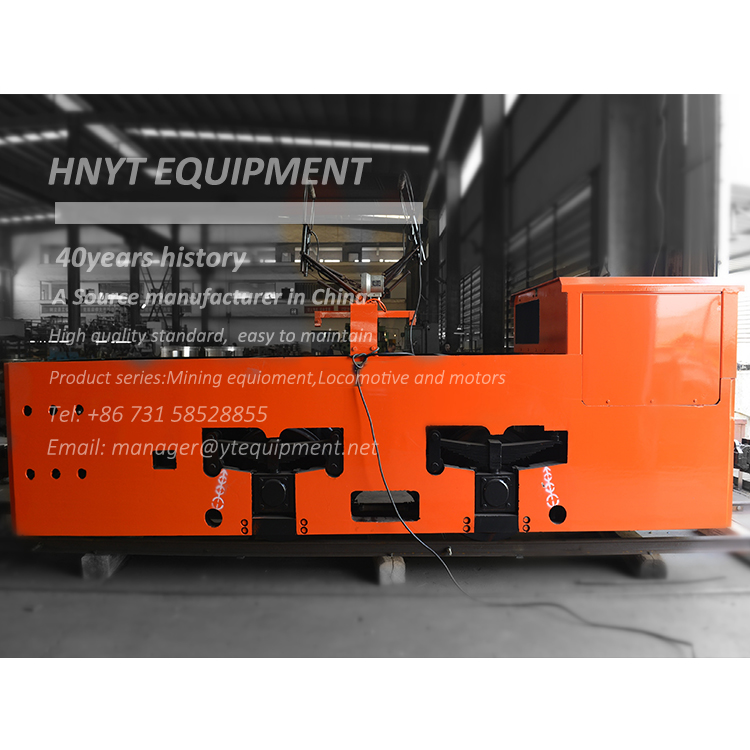

10 Ton Electric Mining Trolley Locomotive

​We could provide huge tonne trolley locomotive with competitive price and CE certification. Our factory has more than 20 years experience of production and maintenance locomotive got good feedback from South America and Europe. We are expecting to

CJY10 Ton Underground Mining Trolley Locomotive

We could provide huge tonne trolley locomotive with competitive price and CE certification. Our factory has more than 20 years experience of production and maintenance locomotive got good feedback from South America and Europe. We are expecting to become your long-term partner in China.



The electric locomotive adopts chopper and variable frequency control mode with a hand wheel braking electrical braking and air braking it uses the V type rubber spring bearable with the vibration and shock from longitudinal vertical and horizontal directions which have some properties like large traction high speed strong carrying capacity etc.

10ton Trolley Locomotive

Model

CJY10/6、7、9G(B)(P)

Adhesive / total weight (t)

10t

Track gauge (mm)

600、762 or 900mm

Traction

13.05kN

18.93kN

Max. Traction (KN)

24.5kN

Speed

11km/h

Direct Voltage

250V

550V

motor power

24Kw×2

30kW×2

Dimensions

Length

4550mm

Width

1050、1212 or 1350mm

Height

1600mm

Wheel base

1100、1220mm

Wheel Diameter

Φ680mm

Operational height of current-controller

1800~2200mm、2000~2400mm

Min Curve radius (m)

7、10m

Controller

Resistance or IGBT

Braking method

Mechanical Brake

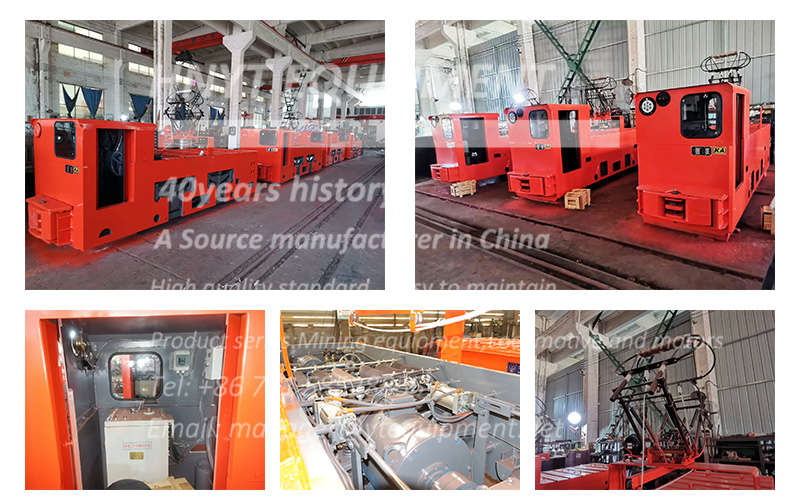

Shipment and one site details
